| Brand | AMC |
| Technology | PIR |
| Security grade | Grade 2 |

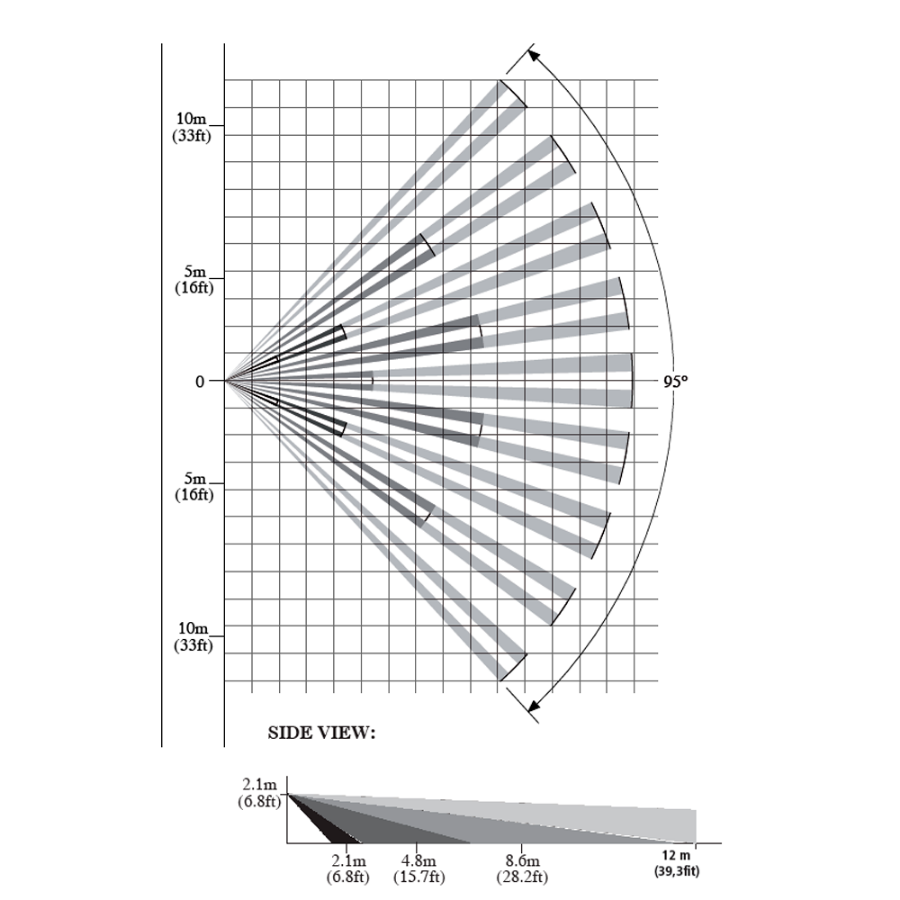

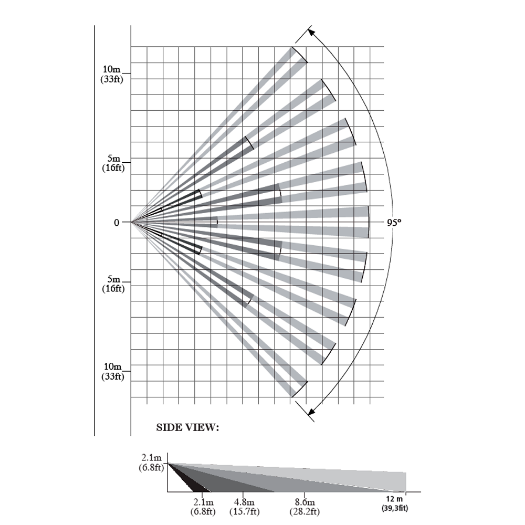

| Detection range | 15 m / 100o H |
| Pet immunity | ?15 Kg |
| Installation height | From 1.8 to 2.2 m |
| Anti-masking | Not available |
| Detection test | AvailablePIR (flashing green led) |
| Self-test | Not available |
| DIP Switch configuration | 1 - Sensitivity: Off=1 pulse / On=2 pulses 2 - Range: Off=15 m / On=7 m3 - LED (On/Off) |
| Microwave sensitivity | Adjustable (potentiometer) |
| LEDs indication | Alarm (blue) |

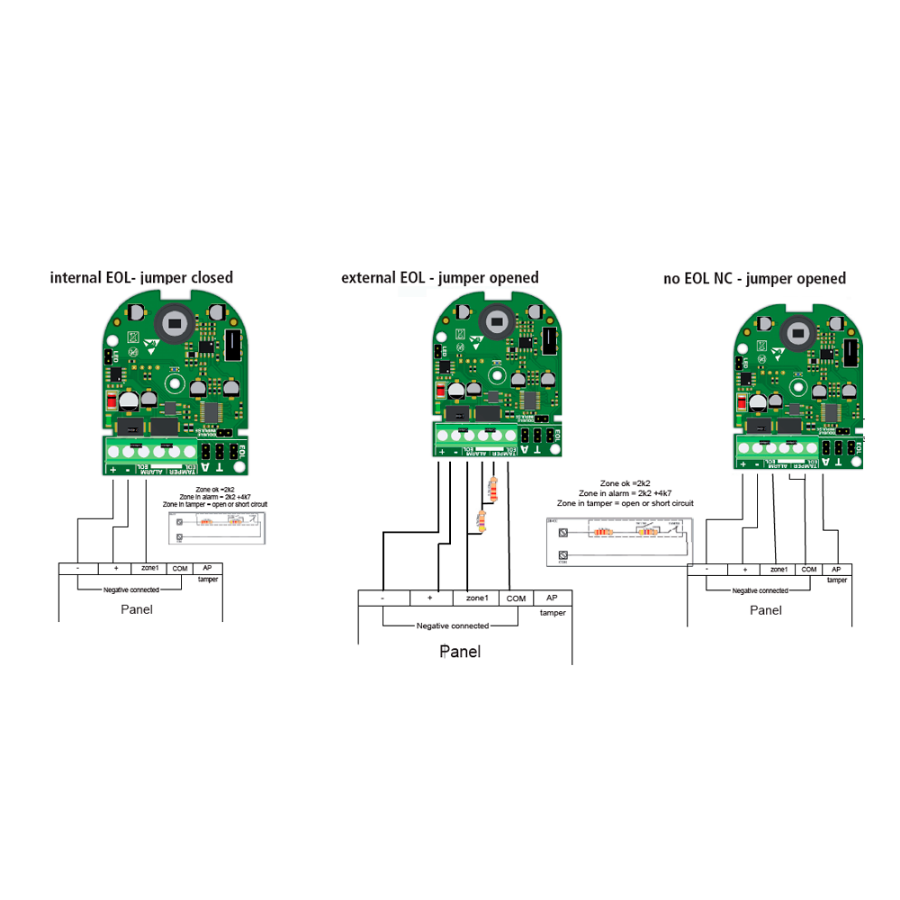

| Connection mode | End-of-line resistors: 2EOL |
| End-of-line resistor values | With the 3 jumpers:Rest 2k2Alarm 2k2+4k7Tamper open circuit |
| Installation | Surface mounting or wall mounting AM-SN1 |
| Power | 9~15 VDC / 19 mA |
| Temp. operation | -10o C ~ 40o C |
| Dimensions (without bracket) | 114 (H) x 63 (W) x 40 (D) mm |
| Colour | White |
