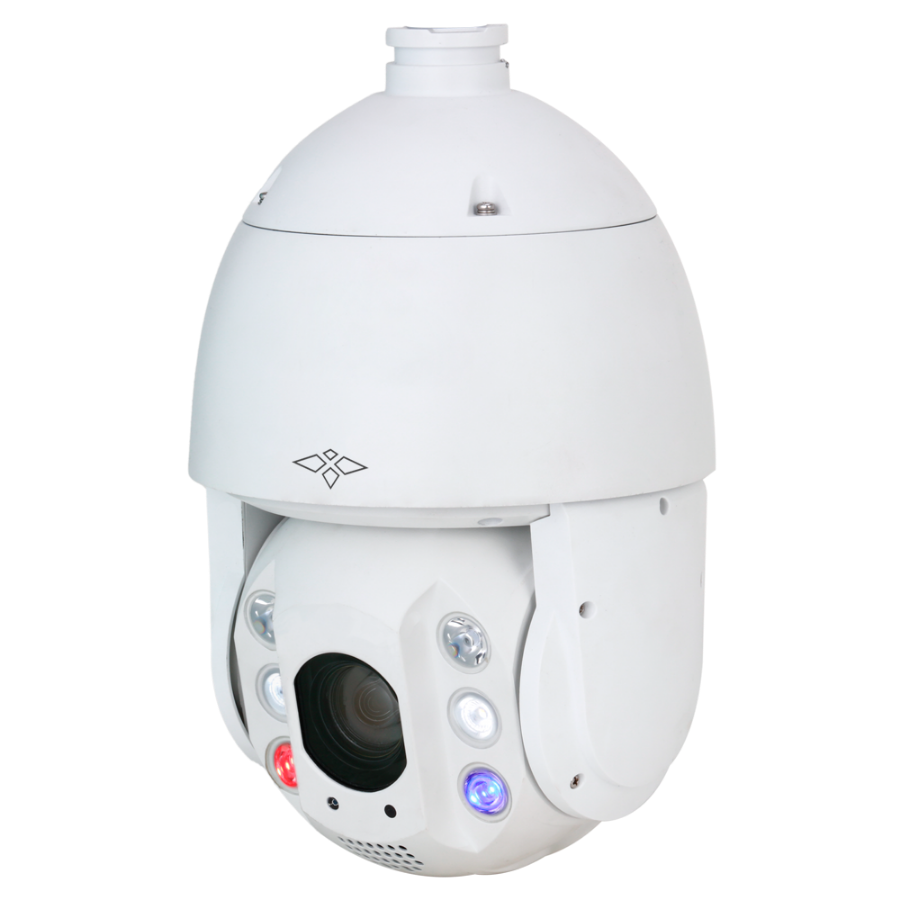

| Brand | X-Security |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Lens | Varifocal 4.8~154 mm (optical zoom 32x)) |
| Viewing Angle (FOV) | H: 55.8o~2.3o, V: 31.9o~1.3o, D: 63o~2.7o |
| Range performance | 2124 m (D), 839 m (O), 425 m (R), 212 m (I) |
| Focus | Auto; semi-auto; manual |
| Digital zoom | 16x |
| Electronic Shutter | 1 s~1/30.000 s |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON)0 lux with IR range 150 m |
| Supplementary lighting | Dual light (IR + white light)IR range of 150 mWhite light range 50 m |
| Day / Night | Removable mechanical ICR filter |
| Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+ |
| Main Stream rate | 4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps) |
| Extra Stream Rate 1 | D1/VGA/CIF @(1–25/30 fps) |
| Extra Stream Rate 2 | 1080p/1.3Mpx/720p @(1–25/30 fps) |
| Bitrate | H264: 96 Kbps~14848 KbpsH265: 38 Kbps~8960 Kbps |
| Image improvements | WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, Rotation 180o, Privacy masking |
| Motion Detection | Yes |
| EIS (Image Stabilizer) | Yes |
| Video metadata | Detects motorized and non-motorized vehicles, human faces and bodies. It also tracks, takes snapshots, uploads high quality face images and optimizes images. Extracts attributes of motor vehicles, det |
| SMD (Smart Motion Detection) | SMD 4.0, advanced motion detectionDahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. Filters out non-target objects, su |
| IVS (Perimeter protection) | Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/human alarm classificationAutomatically filters o |
| Face detection | Supports face detection, face bounding box, snapshot capture, face snapshot uploading, face image enhancement, and selection of a preferred image from a group of snapshots. It also supports attribute |
| Detection of helmet and work uniform | Detect 6 hull colors: Red, orange, yellow, yellow, blue, white and black. An alarm is triggered when a person is not wearing a helmet or when the color of the helmet worn does not match the set color. |
| Audio | 1 Input / 1 Output |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Alarms | 2 inputs/ 1 outputs |
| Internal memory | MicroSD card slot up to 512 GB |
| Pan/Tilt Range | Horizontal: 0°~360° no endVertical: -20°~90°, with auto flip 180° |
| Manual speed | Horizontal: 0°~240°/s Vertical: 0°–120°/s |
| Speed between Presets | Horizontal: 240°/s Vertical: 120°/s |
| Preset positions | 300, 8 tour, 5 Pattern, 5 Scan |
| Auto Tracking | Yes |
| Communication | ONVIF (profile S, G, T), CGI, SDK |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Power | AC 24 V / 2.5 A, max. 23 WPoE+ (IEEE802.3at) |
| Temp. operation | -40o C ~ +70o C |
| Degree of protection | Weatherproof IP66Surge protection 6000 V |
| Dimensions | 325.3 mm (H) x 202 (O) mm |
| Weight | 4.6 Kg |
