| Dimensions | 540 (H) x 386 (W) x 178 (D) |

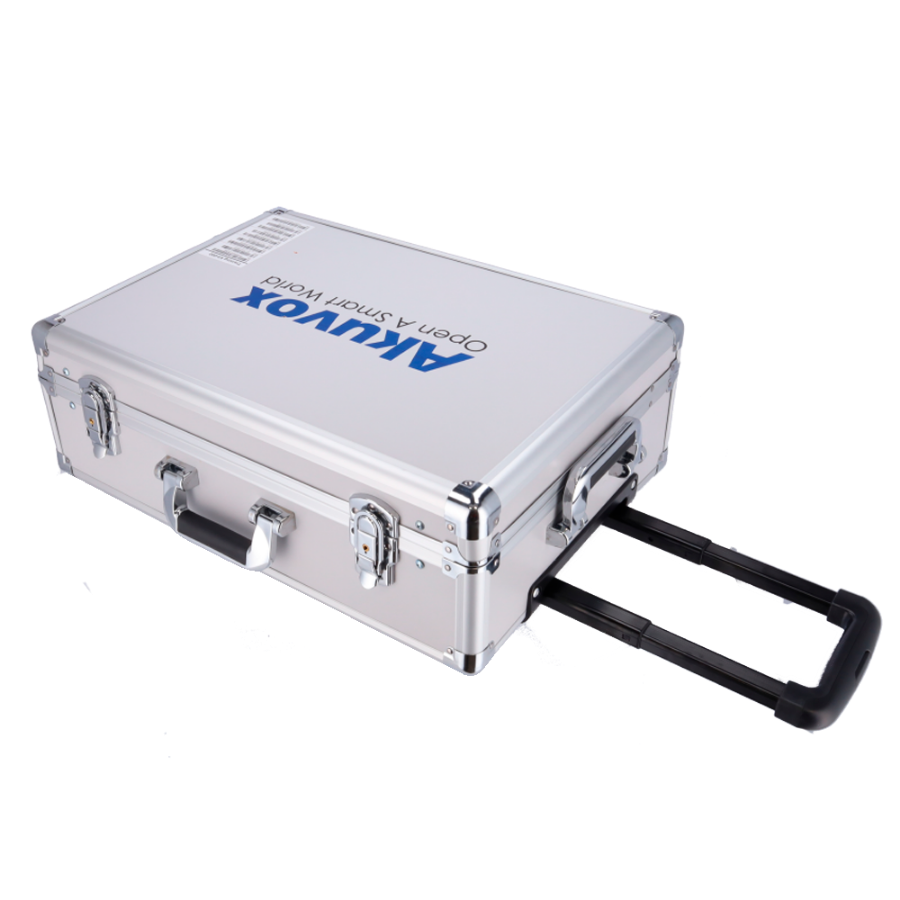

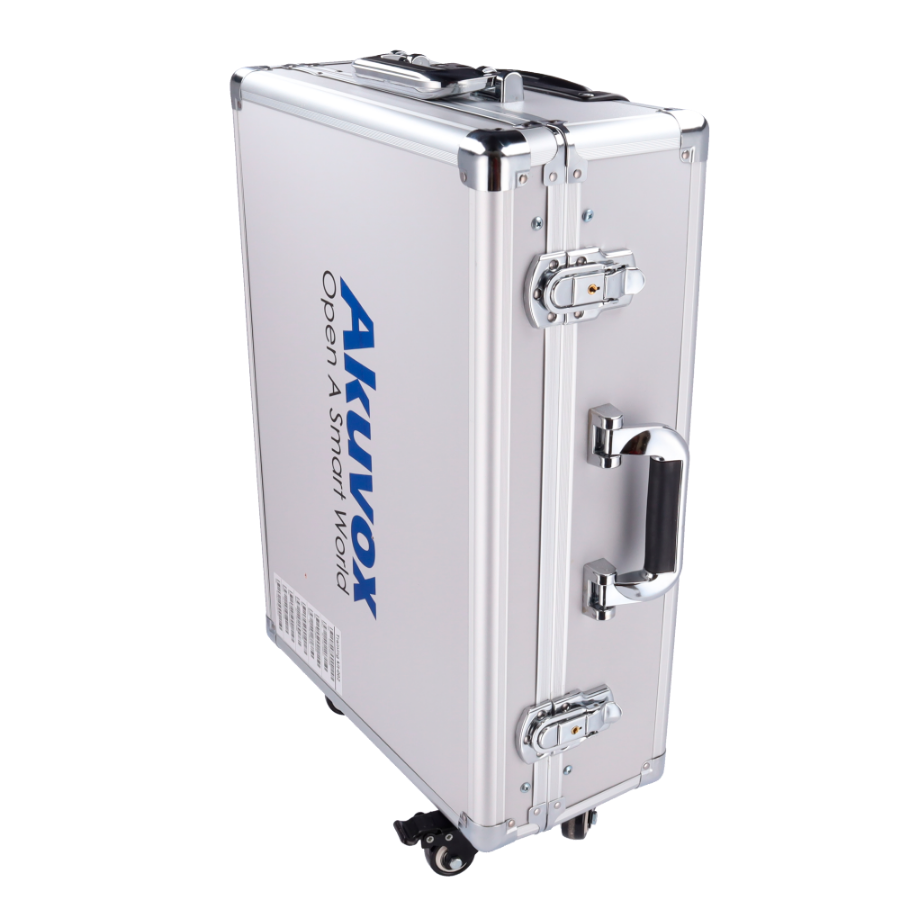

| Material | Aluminium |
| Weight | 14 kg |
| Brand | Akuvox |
| Model | C313S |
| Operating system | LINUX OS |
| Hardware | RAM: 64MB | ROM: 128MB |
| LCD | 7" TFT 800x480 |
| Operation mode | Capacitive touch panel |
| Inputs | 8 Configurable alarm inputs and 1 buzzer inputs |
| Outputs | 1 of relay |
| Audio | Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology |
| Audio Format | SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711µ, G.729, G.722DTMF (RFC2833), SIP Info |
| Remote access | SmartPlus cell phone application or configuration via WEB browserRemote access by Cloud: does not have |

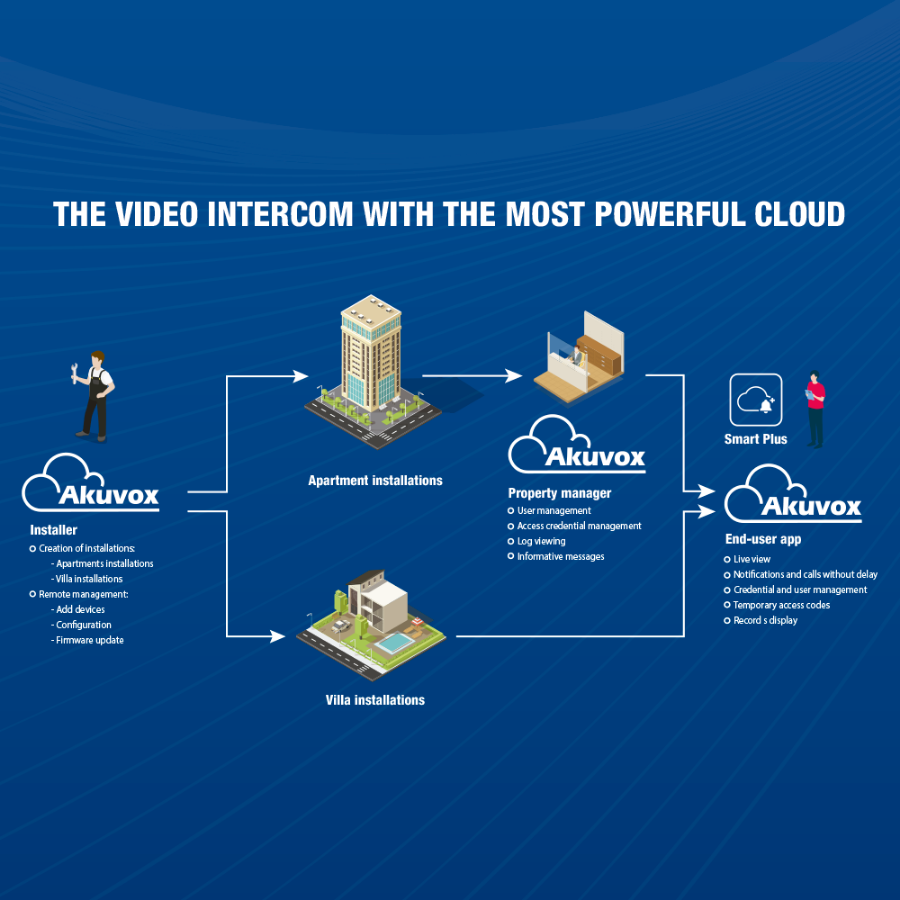

| Mode of operation | Local network and/or via cloud in different networks |
| Firmware updates | Remote with cloud via installer account or via web browser locally |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Power | DC 12 V /600 mA / standard PoE (IEEE802.3af) |
| Temp. operation | -10o C ~ +45o C |
| Dimensions | 200.2 (W) x 132.2 (H) x 27.2 (D) mm |
| Weight | 600 g |
| Model | X915S |
| Access control | Door opening with facial recognition, RFID card EM 125 kHz and MF 13.56 MHz, BLE, QR and PIN, with records |
| Capacity | Contacts: 3.000RFID users: 20.000 faces and 20.000 cards/passwords |
| Screen | Android 8" IPS LCD full color touch |
| Outputs | 3 x lock relay (12V/1A), 1 x Wiegand OUT, 1 x RS485 and 1 x magnetic loop |
| Inputs | 3 x output pushbutton and 1 x Wiegand IN |
| Advanced access functions | Anti-passback (configurable via Cloud, in Office Project) |
| Remote access | SmartPlus cell phone application or configuration via WEB browserRemote access by Cloud: Included |
| Image sensor | 1/2.8" 2 Megapixel CMOS with infrared sensor and light sensorStarlight and HDR technology |
| Viewing angle | 115° (H) / 63° (V) |
| Camera resolution | 1920x1080 - 30fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Secondary camera | 2 Mpx for anti-spoofing technology |
| Video encoding | H.264 |
| Audio | Two-way audio with dual microphone and dual loudspeaker with noise reduction and Crystal Clear Audio technologyAutomatic voice detection |
| Material | Anti-corrosion steel SUS316 |
| Degree of protection | IP65 y IK10 |
| Temp. operation | -30 oC ~ +60 oC |
| Dimensions | With surface support: 350 (H) x 130 (W) x 42 (D) mmWith flush mounting bracket: 350 (H) x 130 (W) x 54 (D) mm |
| Power | DC 12 V / 1500 mA máx. / PoE+ IEEE802.3at |
| Weight | 2000 g |
| Model | E12S |
| Access control | Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records |
| Capacity | Contacts: 1.000RFID users: 5.000 card(s) |
| Keypad | Mechanical call button with configurable LED illumination |
| Outputs | 1 x relay for lock and 1 x Wiegand OUT |
| Inputs | 2 x output pushbutton and 1 x Wiegand IN |
| Image sensor | 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor |
| Viewing angle | 123° (H) / 69° (V) |
| Camera resolution | 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p |
| Video encoding | H.264 y H.265 |
| Memory | MicroSD slot up to 32 GB |
| Material | Plastic |
| Degree of protection | IP65 |
| Temp. operation | -40 oC ~ +55 oC |
| Dimensions | 146 (H) x 70 (W) x 23 (D) mm |
| Power | DC 12 V / 1000 mA máx. / IEEE802.3af PoE |
| Model | IT88A |
| Operating system | Android 9.0 |
| Hardware | RAM: 2GB | ROM: 8GB |
| Camera | 1 MP CMOS |
| LCD | 10" IPS 1280x800 |
| Capacity | Contacts: 3000Messages: 1000Call records: 1000 |
| Outputs | 2 of relay |
| Storage | MicroSD slot |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n |
| Power | DC 12 V / 600 mA / Standard PoE (IEEE802.3af) |
| Dimensions | 251 (W) x 183 (H) x 30 (D) mm |
| Weight | 750 g |
| Material | Brushed aluminum |
