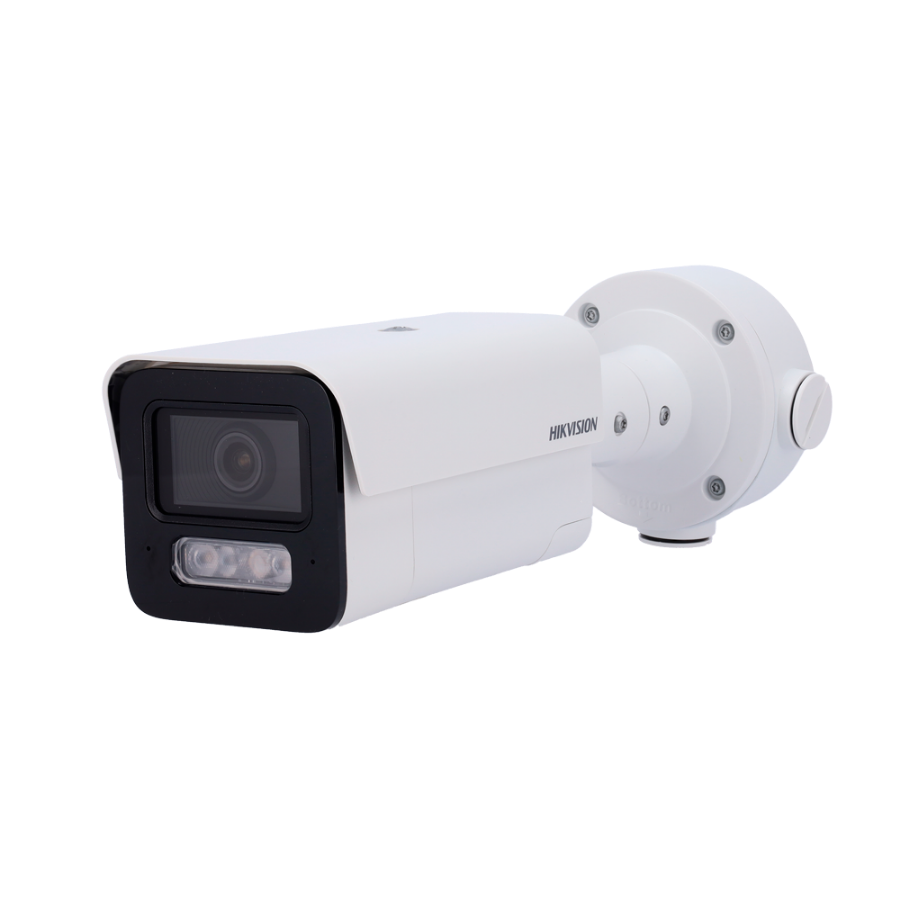

| Brand | Hikvision |
| Range | SOLUTIONS |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 25 fps (2688x1520, 2560x1440, 1920x1080, 1280x720) [%VAR%] |
| Extra Stream rate | 25 fps (1280x720, 704x576, 640x480) |
| Third stream rate | 25 fps (1920x1080, 1280x720, 704x576, 640x480) [%VAR%] |
| Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264, |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm fixed lens |
| Viewing Angle (FOV) | H: 104°, V: 54°, D: 127° |
| Range performance | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum illumination | Colour: 0.0014 Lux @ (F1.0, AGC ON)0 Lux with IR, |
| Supplementary lighting | Hybrid lightWhite light: Up to 80 mIR: Up to 80 m |
| Shutter time | 1 s ~ 1/100,000 s |
| Day / Night | Removable mechanical ICR filterBlue glass module (less smear) |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| EIS (Image Stabilizer) | Yes |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection. |
| Smart Events | Line Crossing, Area Intrusion, Inbound Region, Outbound Region, Outbound Region |
| AcuSense | DeepLearning based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Area Entry and Area Exit, Supports target-specific alarm trigg |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 outputBuilt-in microphone and speaker |
| Audio type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 a 192 Kbps(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal memory | Slot for micro SD card up to 1TB |
| Network interface | Ethernet 10/100M BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T, M), ISAPI, SDK, ISUP |
| Power | DC 12 V ± 20% / 1400 mA / max. 16.8 W PoE+ IEEE802.3at |
| Power supply output | DC 12 V / 100 mA |
| Degree of protection | Weatherproof IP67Anti-vandal IK10NEMA anti-corrosion 4X |
| Material | Aluminium alloy |
| Temp. operation | -30o C ~ +60o C |
| Heater | Yes |
| Dimensions | O 155 mm x 326.3 (D) mm |
| Base dimensions | O base 155 mm / O between bolts 126 mm / 4 bolts |
| Weight | 1370 g |
