| Detection range | 450m indoor / 150m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of the 4 beams at once or only 2 (up o down) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |

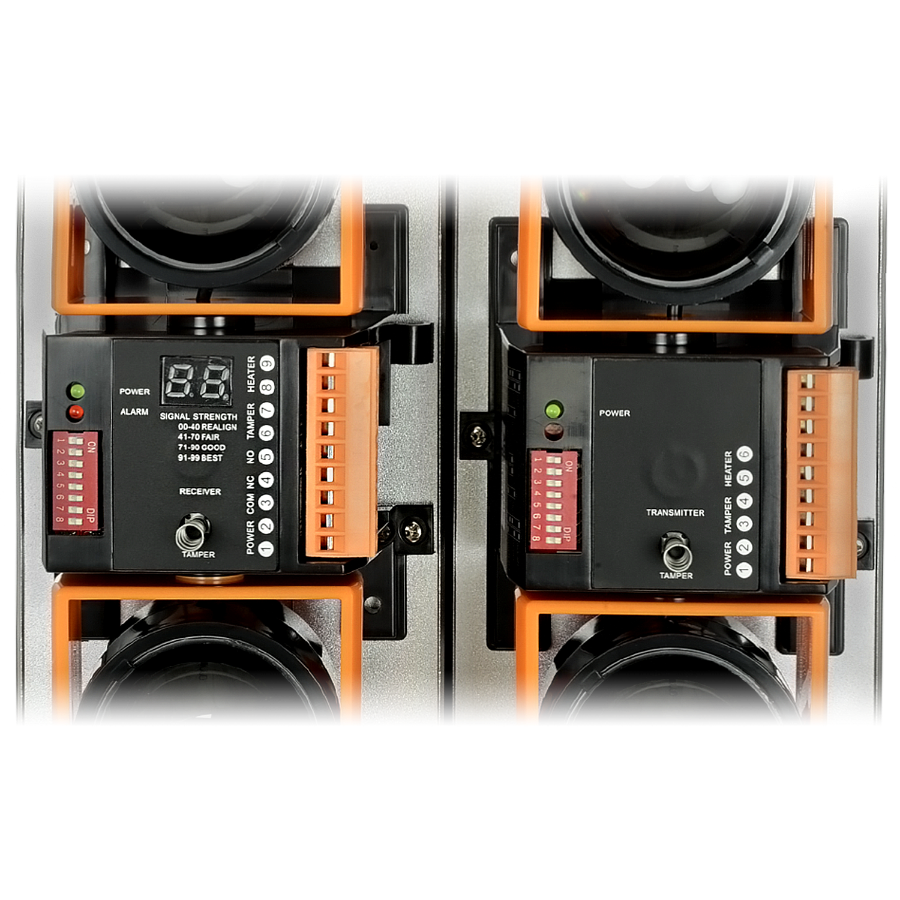

| Adjustment method | Over LCD Display between 0-99 |
| Operating temperature | -25oC ~ +55oC |
| Degree of protection | IP65 |
| Power | 12~24 VDC/VAC, 90 mA max. |
| Dimensions | 291 (H) x 92 (W) x 90 (D) mm |
