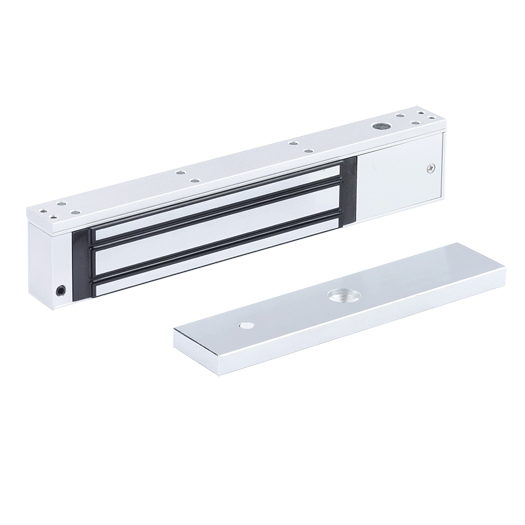

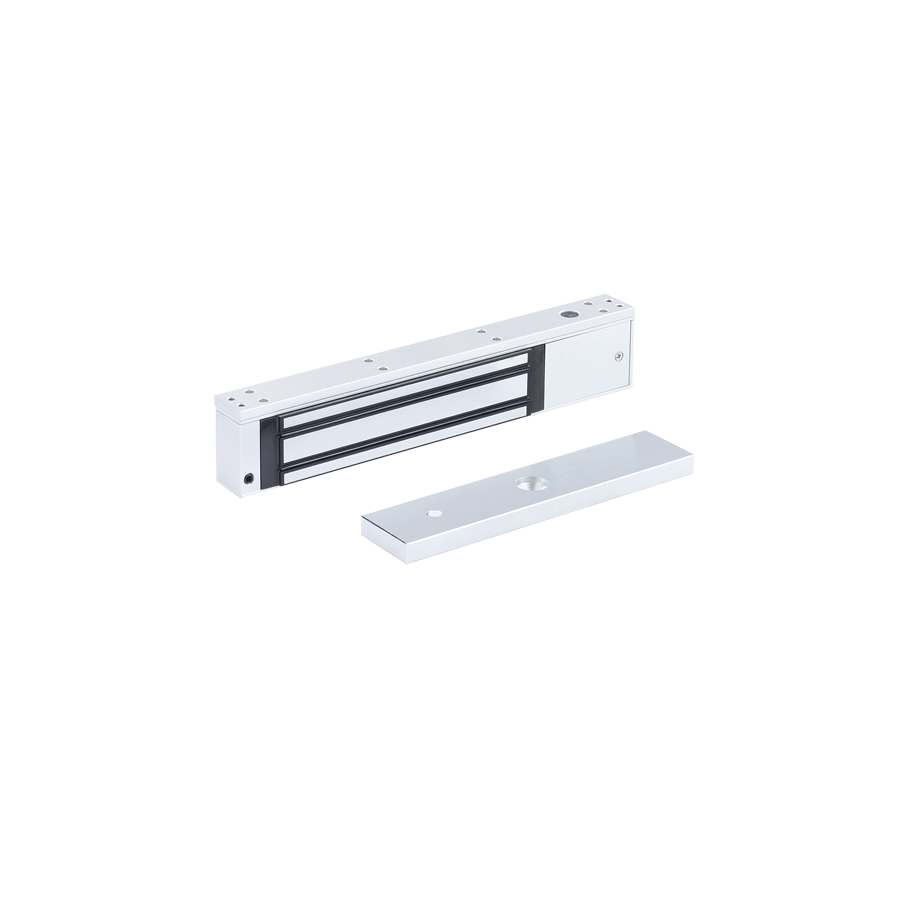

| Model | YF-280AST-LED |
| Door type | Simple: 1 folding sheet |
| Opening mode | Fail Safe / Inverted (NC) |
| Retention force | 280 kg |
| Signaling | Door lock status LEDNO/NC/COM contact output for door block status |
| Blocking time | Adjustable delay |
| Power | DC 12 V / 520 mA máx. o DC 24 V / 260 mA max. |
| Mounting | Surface |
| Protection | Interior |
| Material | Aluminium |
| Temp. operating | -10 oC ~ +55 oC |
| Dimensions | Maglock: 250 (W) x 43 (H) x 28 (D) mmCounterplate: 180 (W) x 38 (H) x 13 (D) mm |
| Range | EasyAccess |
