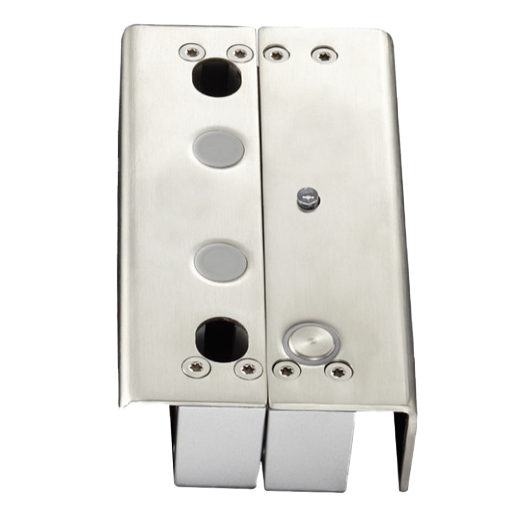

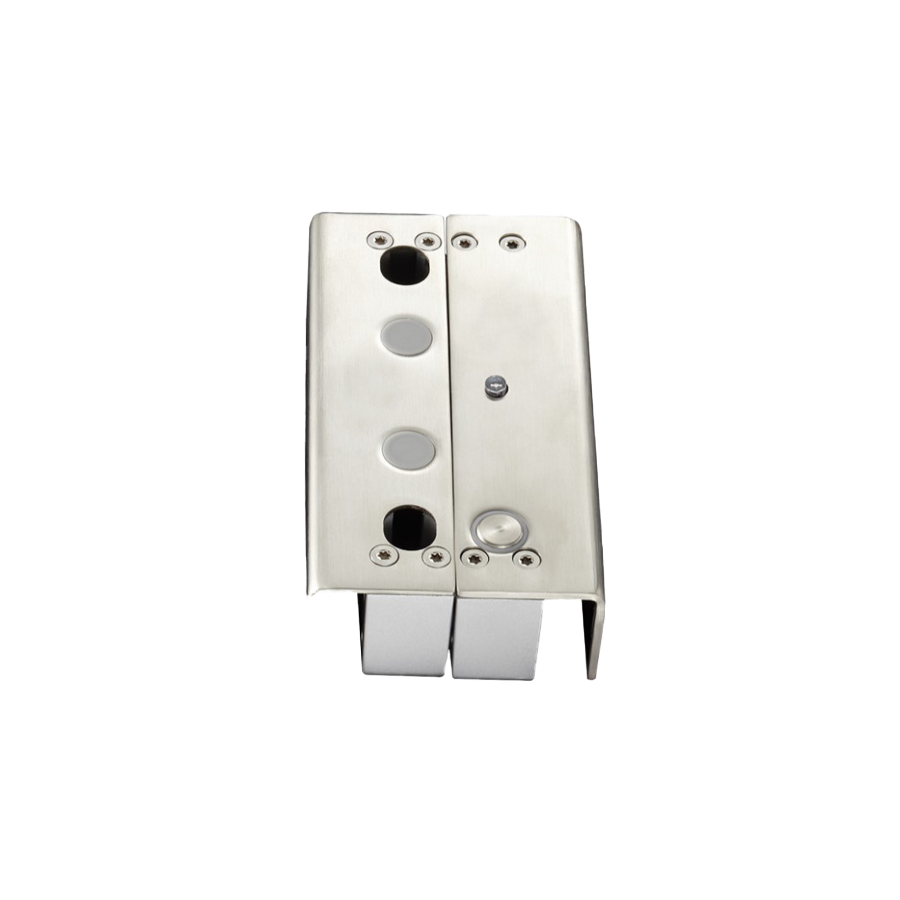

| Mounting | Surface |
| Opening mode | Fail Safe (NC) |
| Type of opening | Bidirectional |
| Locking delay time | 0, 3, 6 y 9 seconds |
| Retention force | 1000 Kg |
| Power | DC 12 V / 960 mA máx. (start) / 180 mA max. (rest) |

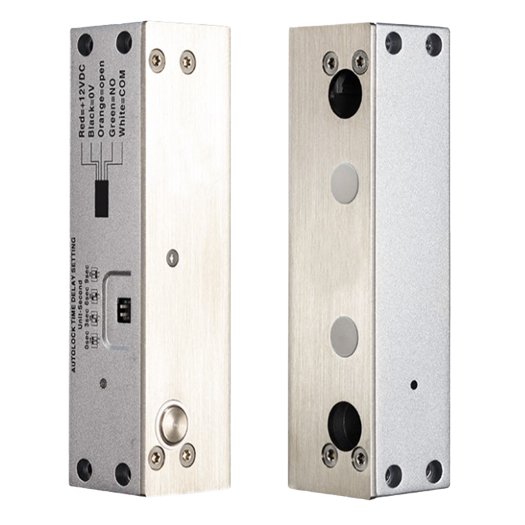

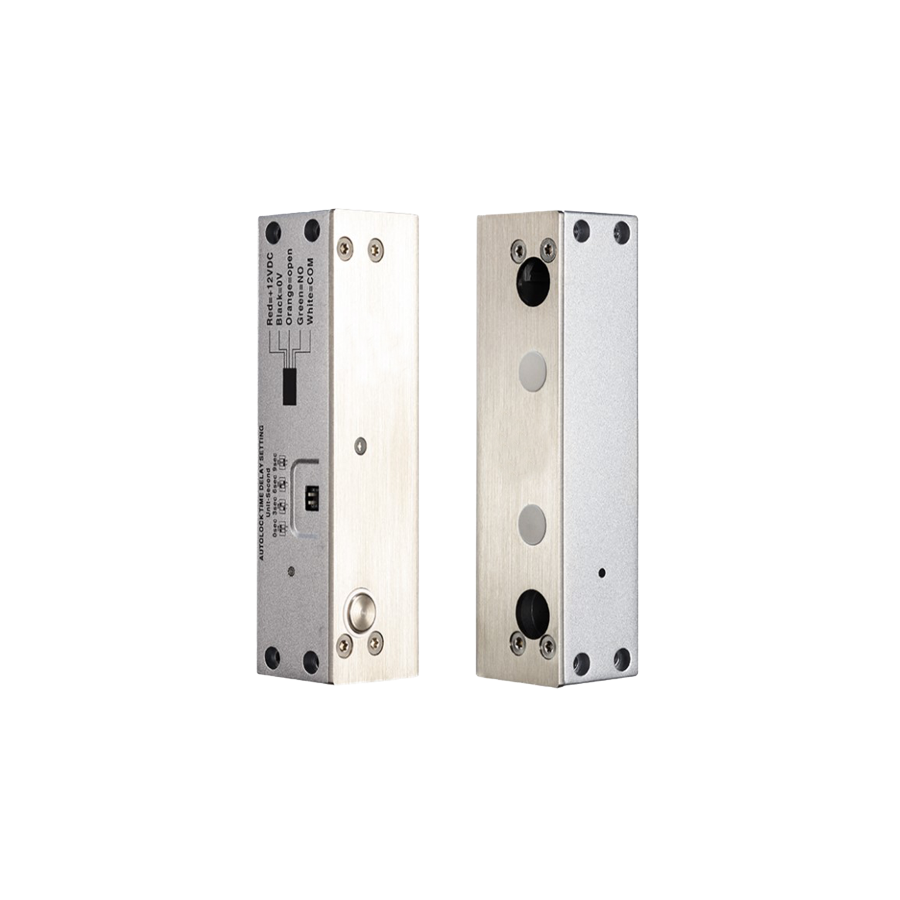

| Door sensor | NC / COM |
| Plate dimensions | 41.6 (W) x 150 (H) x 36.5 (Fo) mm (without bolt unfolded) |
| Dimensions of the socket | 41.6 (W) x 150 (H) x 36.5 (D) mm |
| Temp. operating | -40o C ~ +60o C |
| Weight | 1.4 Kg |
| Range | EasyAccess |
