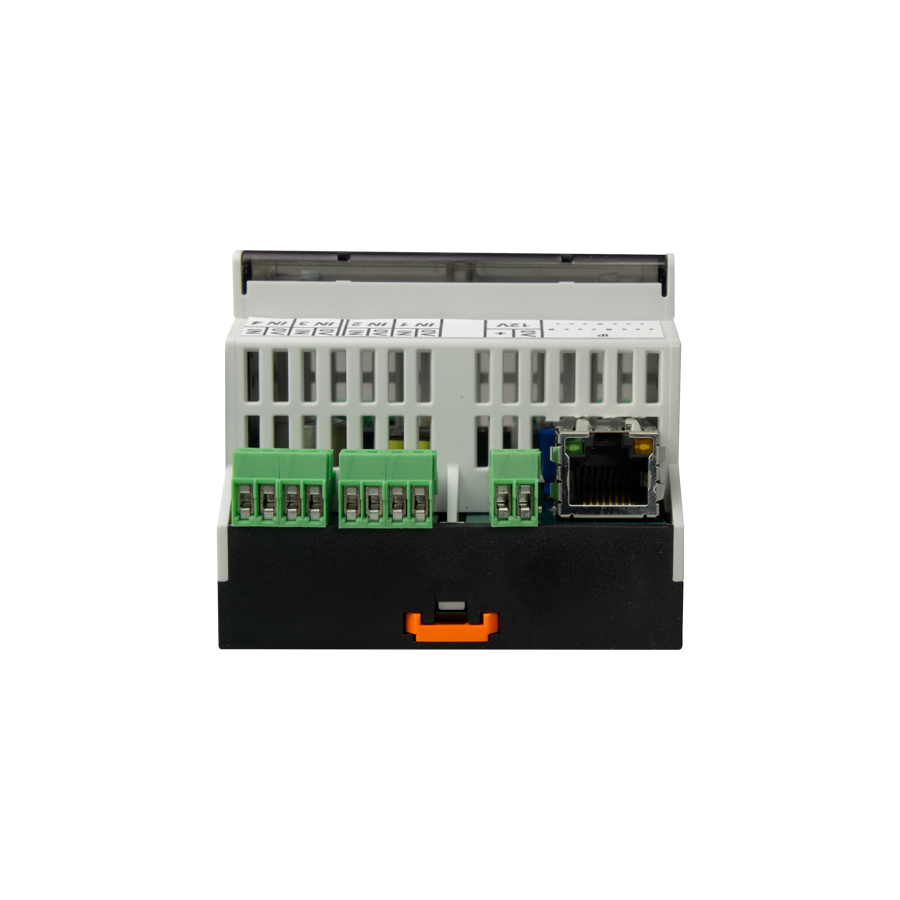

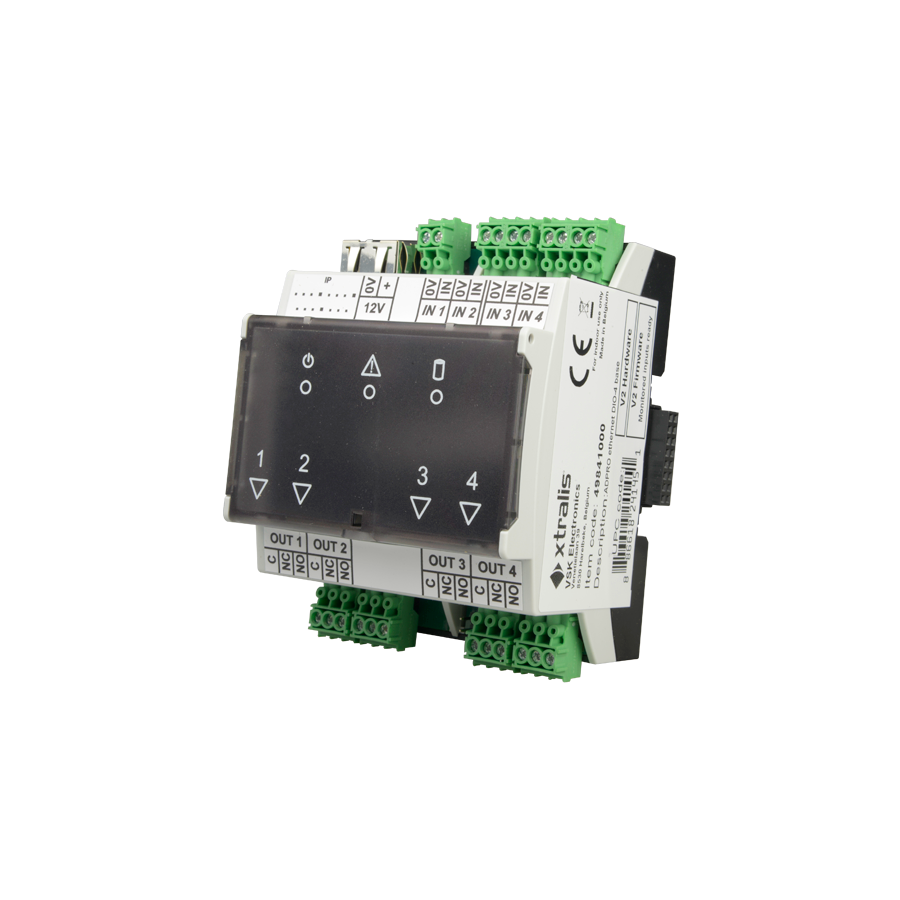

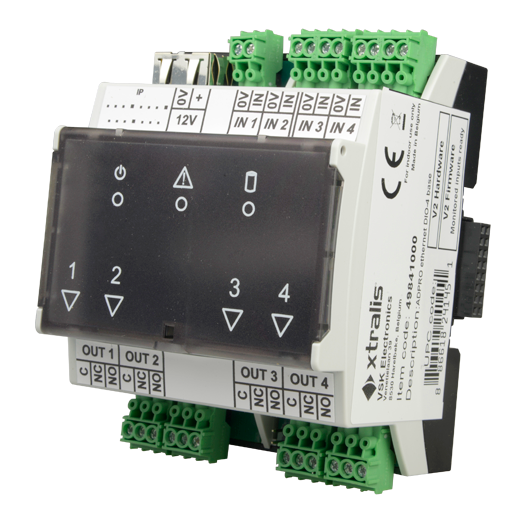

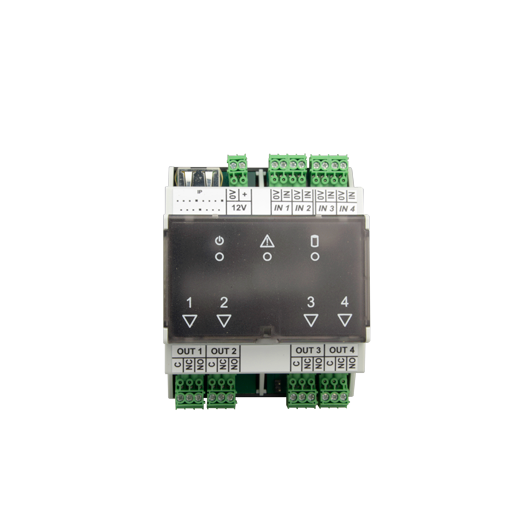

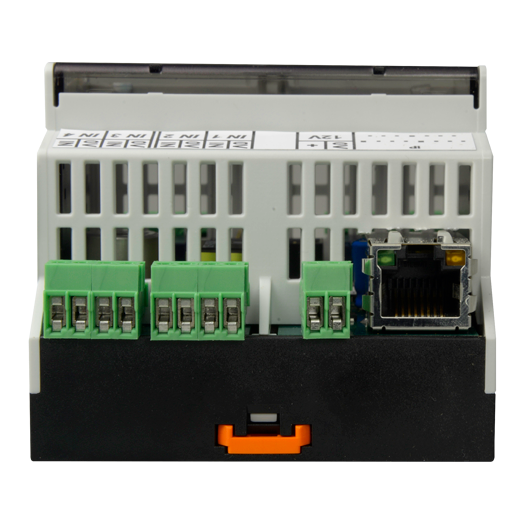

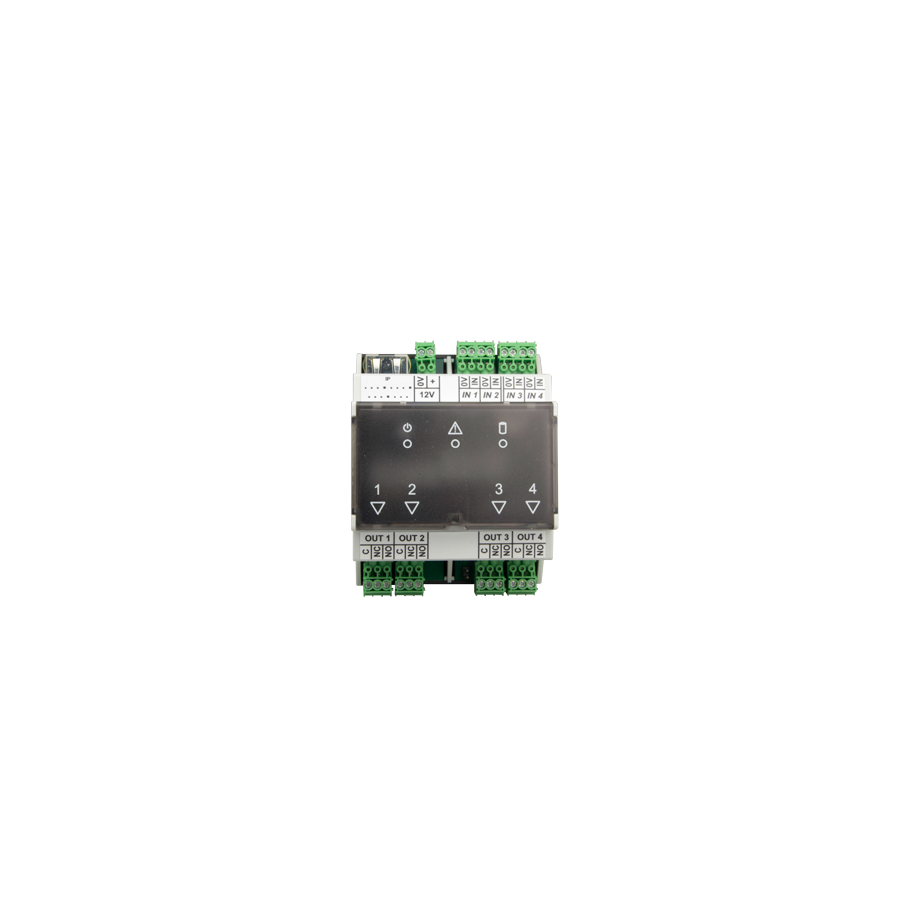

XTL-49841010

Brand: XTRALIS

Šifra: XTL-49841010

GTIN: 886618241468

281,88 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Inputs	4 voltage free contact inputs, NO or NC (NO by default)
Outputs	4 relay outputs: NC/NA, 30vdc @1A
Dimensions	72mm x 89.7 mm x 62.2 mm
Operating temperature	0-40 °C
Relative Humidity	20-93% (non condensing)

Module with LED indicators, contact inputs and relay outputs, FastTrace compatible 2 Series, iFT Series, iFT Gateway.
The analytical system controls the I/O units via the Ethernet network (10 Mbps).
The module has 4 voltage-free contact inputs (default = NO).
4 relay outputs (voltage free switchover contacts) each with status LED.
3 LED indicators for system status (red = recording; yellow = fault; green = power supply).
Mounted on DIN rail
Extendible with up to three extension units. Extension units are powered from the base unit. Each extension unit offers 4 additional monitors or contact inputs and 4 relay outputs.
Powered by a local adapter (12 VDC; min 350 mA) or by a PoE switch or injector
