| Brand | X-Security |
| Range | EASY |
| Image sensor | 5 MPx Progressive CMOS |
| Maximum resolution | 5 Mpx (2880x1620) |
| Resolution | CVI: 5Mpx (25~30 fps), 4Mpx (25~30 fps), 1080p (25~30 fps)TVI: 4Mpx (25~30 fps)AHD: 4Mpx (25~30 fps)CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 112o, V: 58o, D: 136o |
| Range performance | 63.8 m (D), 25.5 m (O), 12.8 m (R), 6.4 m (I) |
| Lens Adjustment | 3-axis |
| Minimum illumination | 0.001 Lux @(F1.0, AGC ON)0 lux with dual light |
| Supplementary lighting | Dual Light (IR + white light) range 40 m |
| Day / Night | Mechanical ICR filter |
| Electronic Shutter | 1/3~1/100000 s |

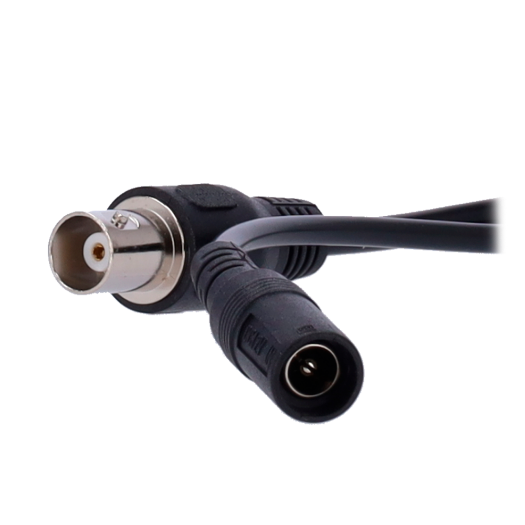

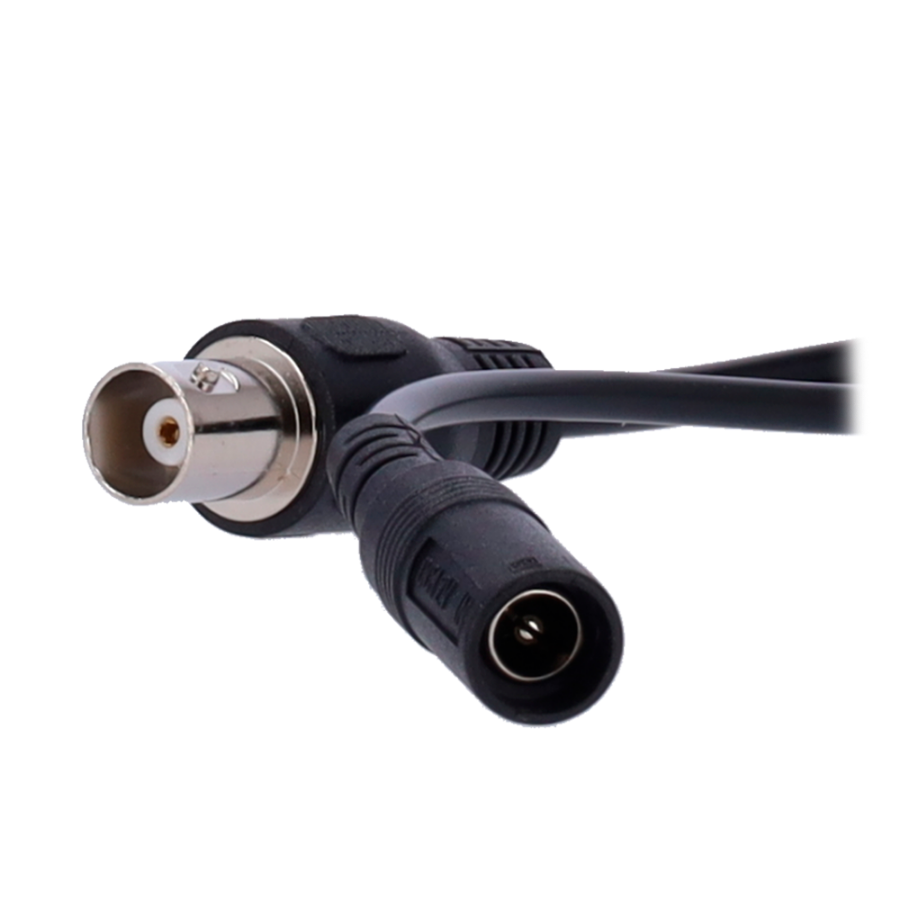

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | By switch |
| Basic functions | OSD Menu |
| Image improvements | WDR (120 dB), 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirroring Effect |
| Audio | Integrated microphoneAudio over coaxial cable in CVI technology |
| Power | DC 12 V / 6.4 W max. |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10Surge protection |
| Material | Metallic |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | O 126 mm x 100 mm (H) |
| Base dimensions | O base 126 mm / O between bolts 110 mm / 3 bolts |
| Weight | 590 g |
