| Brand | X-Security |
| Range | EASY |
| Image sensor | 2 MPx Progressive CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps)CVI: 1080p (25~30 fps)AHD: 1080p (25~30 fps)CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 102o, V: 60o, D: 129o |
| Range performance | 41.1 m (D), 16.5 m (O), 8.3 m (R), 4.1 m (I) |
| Lens Adjustment | 3-axis |
| Minimum illumination | 0.01 Lux @(F2.0, AGC ON)0 lux with dual light |
| Supplementary lighting | Dual Light (IR + white light) range 40 m |
| Day / Night | Mechanical ICR filter |
| Electronic Shutter | 1/25~1/100000 s |

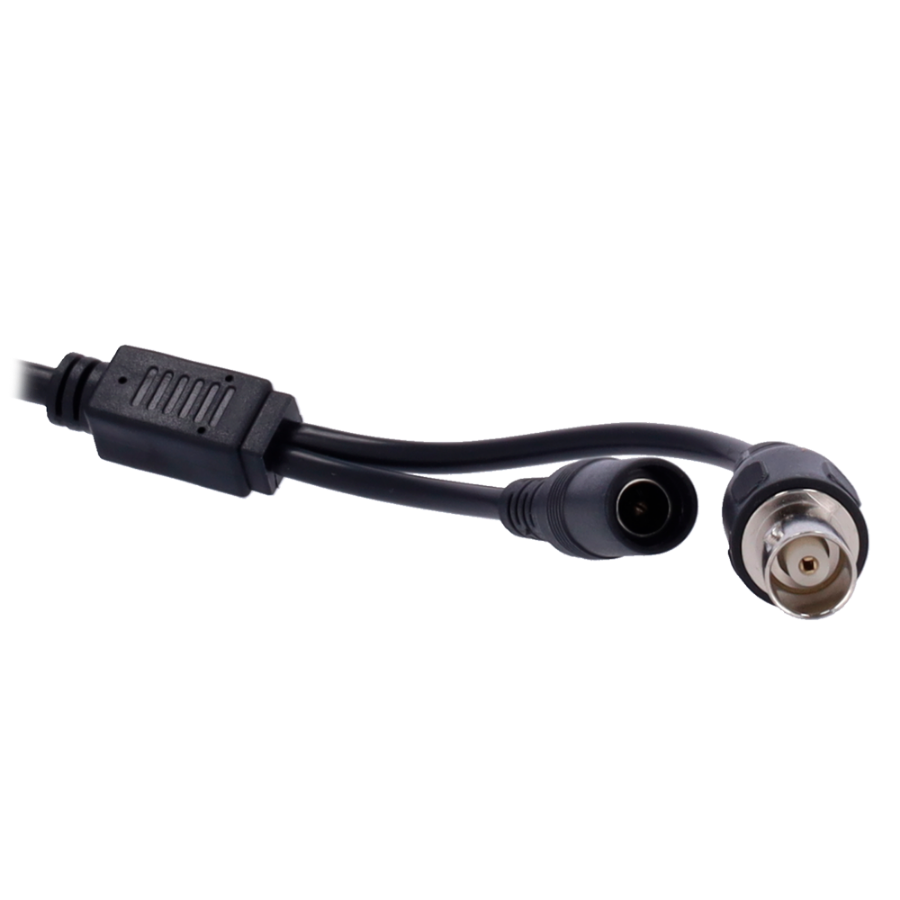

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | By switch |
| Basic functions | OSD Menu |
| Image improvements | DWDR, 3D-DNR, Smart Light, BLC, HLC, AWB, AGC, Privacy Masking, Mirror Effect |
| Audio | Integrated microphoneAudio over coaxial cable in CVI technology |
| Power | DC 12 V / 4.1 W max. |
| Degree of protection | Weatherproof IP67 |
| Material | Metallic |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | O 106 mm x 99.2 mm (H) |

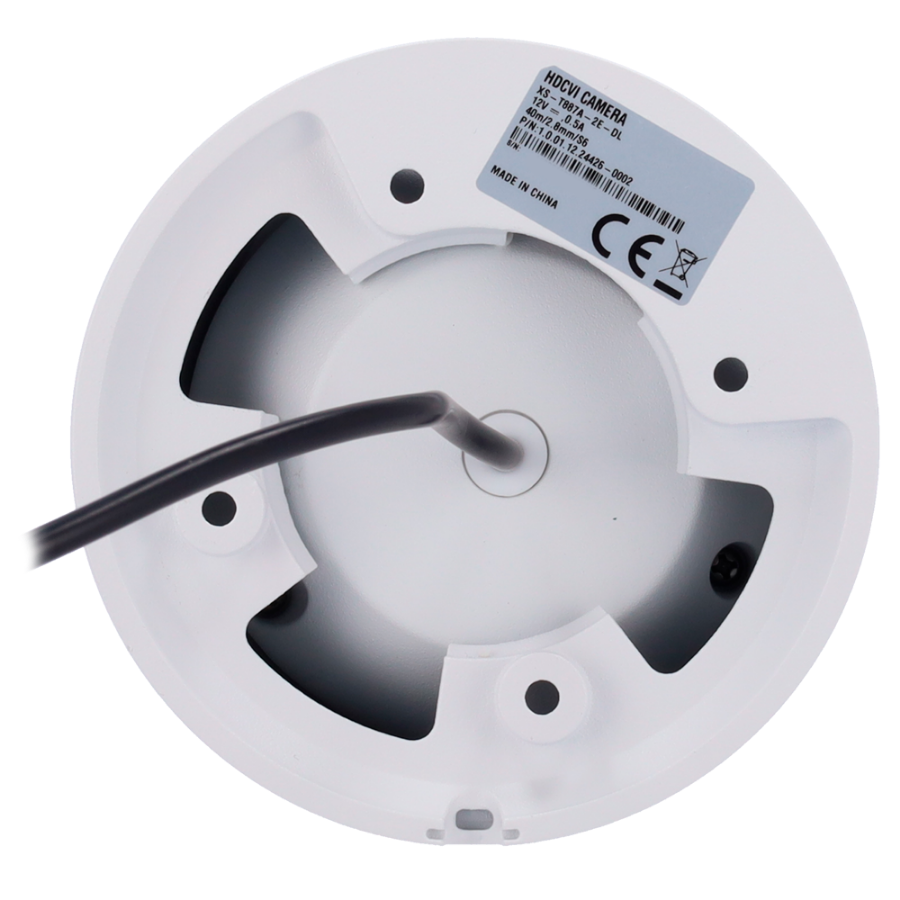

| Base dimensions | O base 106 mm / O between bolts 69 mm / 4 bolts |
| Weight | 450 g |
