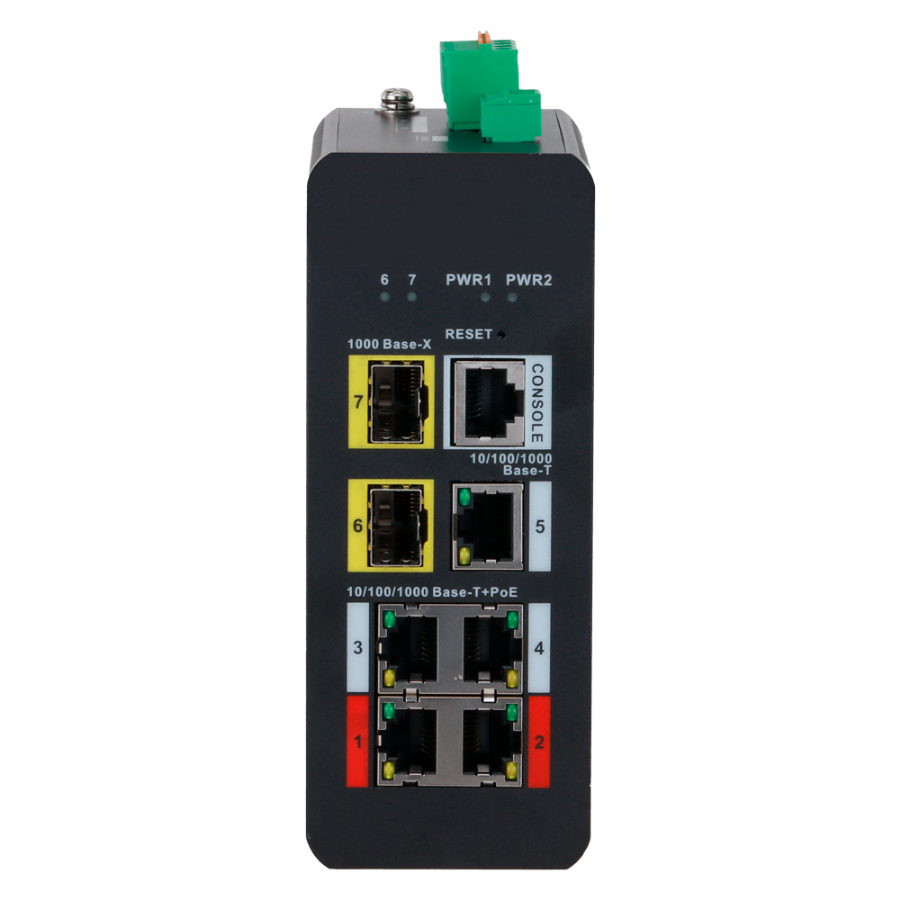

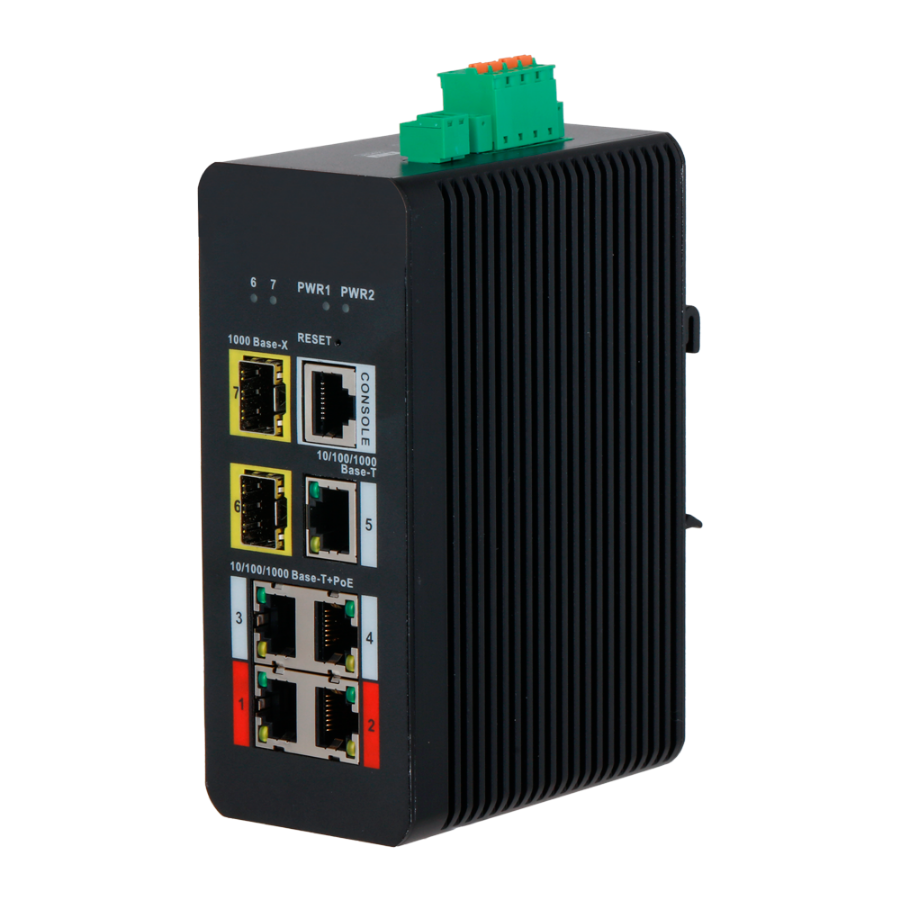

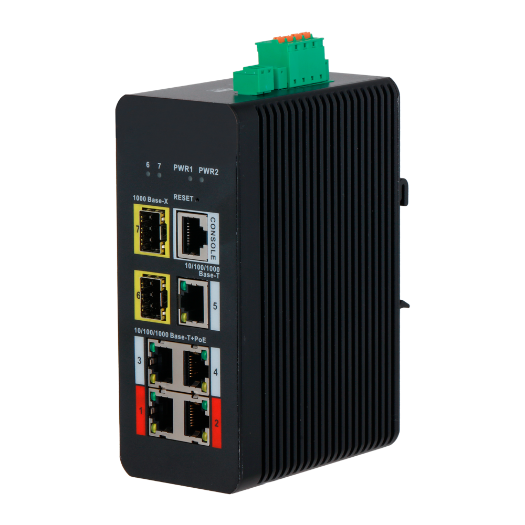

| Interface | 4 PoE ports RJ45 + 1 Uplink port RJ45 + 2 fiber SFP ports + 1 Console port [%VAR%] Console Port |
| Port speed | 5x 10/100/1000Mbps + 2 x 1000Mbps Base-X |
| Power supply | Up to 90W on 1-2 ports and up to a maximum of 30W between 3-4 (120 W ports for the entire device) |
| PoE features | According to standard: IEEE 802.3af PoE / IEEE 802.3at PoE+ / IEEE802.3bt Hi-PoEUp to 120W of Total PoE PowerPoE Watchdog, the switch automatically detects if the PoE-powered device is not operational |
| VLAN | 4K10 VLAN Interface |
| DHCP | CustomerServerDHCP Snooping |
| Security Functions | IEEE 802.1XACL |
| Redundancy | STPRSTPERPS |
| Management Protocols | WebCLITelnetSNMP V1/V2/V3 |
| Power | DC 53V (power supply not included)Redundant source: Two power supplies can be connected to the device |

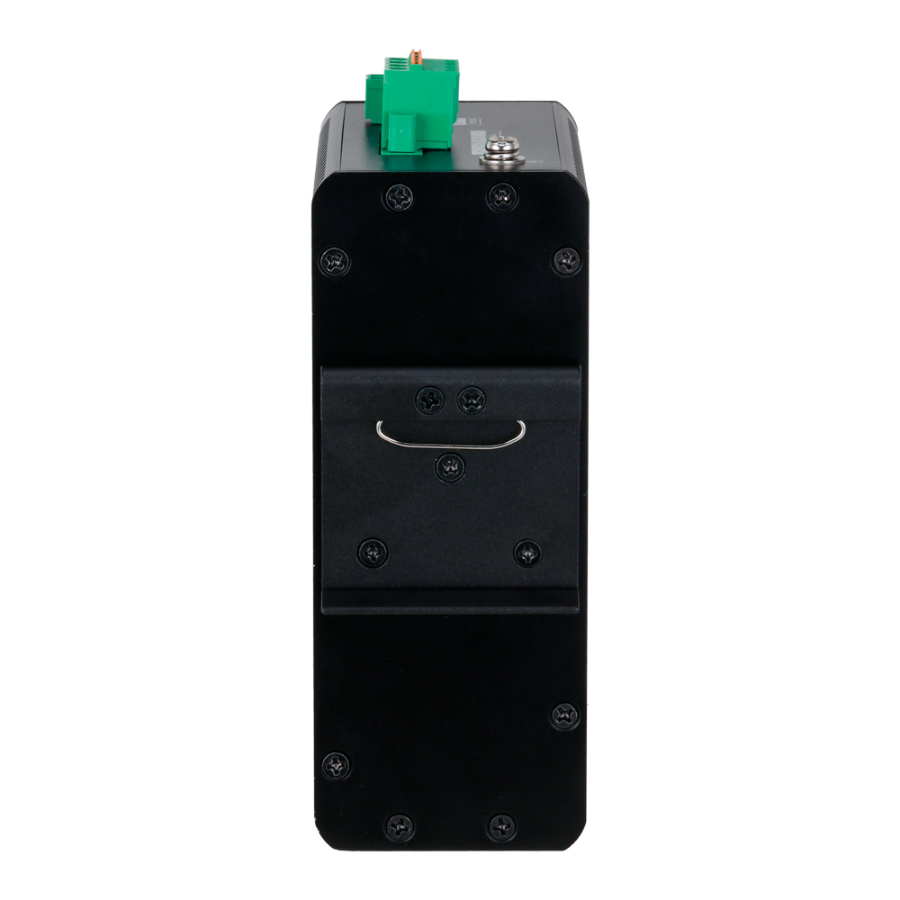

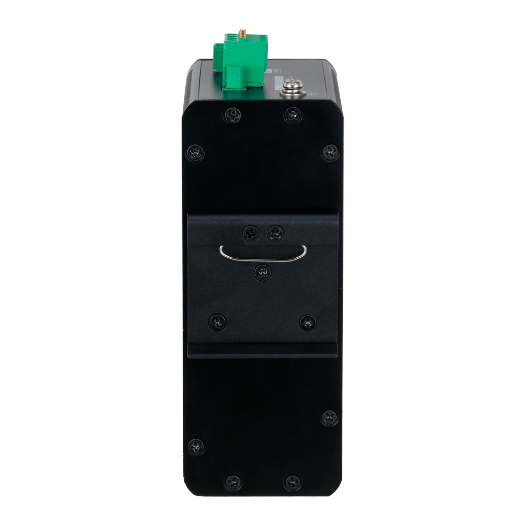

| Installation | DIN rail |
| Maximum consumption | 120W |
| Operating temperature | -40o C ~ 75o C |
| Dimensions | 94,4 x 53,5 x 135 mm |
| Weight | 0,65Kg |
| Installation | Tabletop and DIN Rail |
