| Brand | X-Security |
| Inputs for IP cameras | LAN port up to 64 channels |
| IP compatible cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ Smart / H.265 / H.264+ / H.264 / MJPEG |
| Bidirectional audio | 1 input, 1 output, RCA |
| Recording resolution | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF |
| Decoding capacity | AI Disabled:2CH to 32MP@30FPS, 2CH to 24MP@30FPS, 4CH to 16MP@30FPS, 5CH to 12MP@30FPS, 8CH to 8MP@30FPS, 4CH to 10MP@30FPS, 12CH to 5MP@30FPS, 16CH to 4MP@30FPS, 32CH to 1080p@30FPSAI Enabled:1CH to |
| Video output | 1 HDMI up to 4K1 VGA up to 1080P |
| Display resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720VGA: 1920x1080, 1280×1024, 1280×720*HDMI and VGA output are independent |
| Bandwidth | AI Disabled:384 Input Mbps / 384 Output MbpsAI Enabled:200 Input Mbps / 200 Output Mbps |
| SMD (Advanced Motion Detection) | Advanced motion detection based on human- and vehicle-induced pixel shift reducing false alarmsBy NVR: Up to 8CH Per IP camera with SMD: All channels (Up to 32 targets/second) |
| IVS Perimeter Protection | Intelligent algorithm based on human and vehicle detection with high accuracy filtering out any objects of no interest in the environment such as rain, leaves, bright lights, etc. IVS is based on line |
| Facial Detection | Detection of facial attributes such as: Gender, age group, eyeglasses, expressions, mask or beardFor the NVR: Up to 2CH (Up to 12 images/second per channel)By IP camera with Face Detection: Up to 16CH |
| Facial Recognition | Up to 20 face databases with 20.000 images (2.5G)By NVR: - Up to 16CH using Face Detection cameras - Up to 2CH using the NVR itselfBy IP camera with facial recognition: Up to 16CH |
| AcuPick | Fast target search up to 32CH of humans and vehicles over live video or IVS Perimeter Protection event-based recording |
| Video metadata | Per IP camera with video metadata: Up to 8CHExtraction of human, vehicle and non-motorized vehicle characteristics* Requires camera with video attribute function. |
| Intelligent event searches | SMD, IVS, Face Detection, Face Recognition, ANPR, People Counting, Heat Mapping |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 16 Inputs / 8 Outputs NO/NC*1 Alarm output 1 can supply 12V 1A output) |
| Audio | 1 Input RCA / 1 Output RCA |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal memory | 8 HDD SATA 3.5" of up to 16TB (not included) |

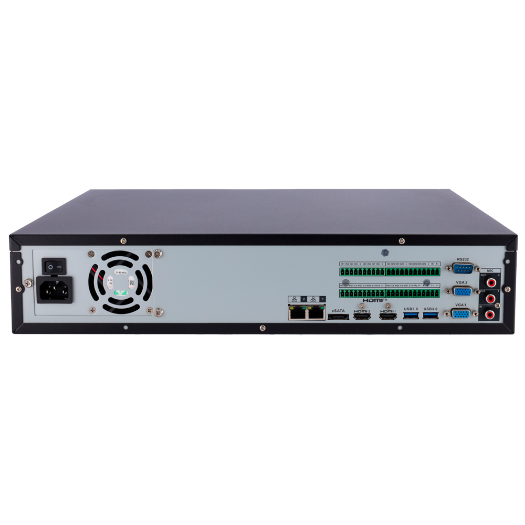

| Communication | 2x USB (Mouse and backup) / 1xRS232 / 1xRS484 / 1 RJ45 10/100/1000M (Ethernet) |
| Racking | 2U |
| Remote access | Browser (ActiveX), Mobile phone application, DSS or DSS PRO software |
| Power | AC 100~240 V, 50/60 Hz, >10W |
| Operating temperature | –10 °C to +55 °C, 10%-93% (RH, non-condensing) |
| Dimensions | 53 (H) x 375 (W) x 329.3 (D) mm / 2.6 Kg |
