| Brand | X-Security |
| Inputs for IP cameras | LAN port up to 64 channels |
| PoE | 16 PoE ports IEEE802.3at/af |
| IP compatible cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ Smart / H.265 / H.264+ / H.264 / MJPEG |
| Bidirectional audio | 1 input, 1 output, RCA |
| Recording resolution | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF |
| Decoding capacity | AI Disabled:2CH to 32MP@30FPS, 2CH to 24MP@30FPS, 4CH to 16MP@30FPS, 5CH to 12MP@30FPS, 8CH to 8MP@30FPS, 4CH to 10MP@30FPS, 12CH to 5MP@30FPS, 16CH to 4MP@30FPS, 32CH to 1080p@30FPSAI Enabled:1CH to |
| Video output | 2 HDMI up to 4K2 VGA up to 1080P |
| Display resolution | HDMI 1 and 2: 3840×2160, 1920×1080, 1280×1024, 1280×720VGA 1 and 2: 1920x1080, 1280×1024, 1280×720*HDMI 1 and HDMI 2 output are independent*HDMI 1 and VGA 1 output are independent*HDMI 2 and VGA 2 out |
| Bandwidth | AI Disabled:512 Input Mbps / 512 Output MbpsAI Enabled:200 Input Mbps / 200 Output Mbps |
| SMD (Advanced Motion Detection) | Advanced motion detection based on human- and vehicle-induced pixel shift reducing false alarmsBy NVR: Up to 8CH Per IP camera with SMD: All channels (Up to 32 targets/second) |
| IVS Perimeter Protection | Intelligent algorithm based on human and vehicle detection with high accuracy filtering out any objects of no interest in the environment such as rain, leaves, bright lights, etc. IVS is based on line |
| Facial Detection | Detection of facial attributes such as: Gender, age group, eyeglasses, expressions, mask or beardFor the NVR: Up to 2CH (Up to 12 images/second per channel)By IP camera with Face Detection: Up to 16CH |
| Facial Recognition | Up to 20 face databases with 2.000.000 images (44G)Second screen with 4K enabled:32ch Det. facial per camera + Rec. NVR Facial4ch Det. facial by NVR + Rec. NVR FacialSecond screen with 4K disabled:32c |
| AcuPick | Fast target search up to 32CH of humans and vehicles over live video or IVS Perimeter Protection event-based recording |
| Video metadata | By NVR: Up to 8CHPer IP camera with video metadata: Up to 32CHFeature extraction from 9 human attributes, 9 vehicle attributes and 4 non-motorized vehicle attributes |
| Intelligent event searches | SMD, IVS, Face Detection, Face Recognition, ANPR, People Counting, Heat Mapping |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 Inputs / 2 Outputs NO/NC |
| Audio | 1 Input RCA / 1 Output RCA |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal memory | 4 HDD SATA 3.5" of up to 20TB (not included) |

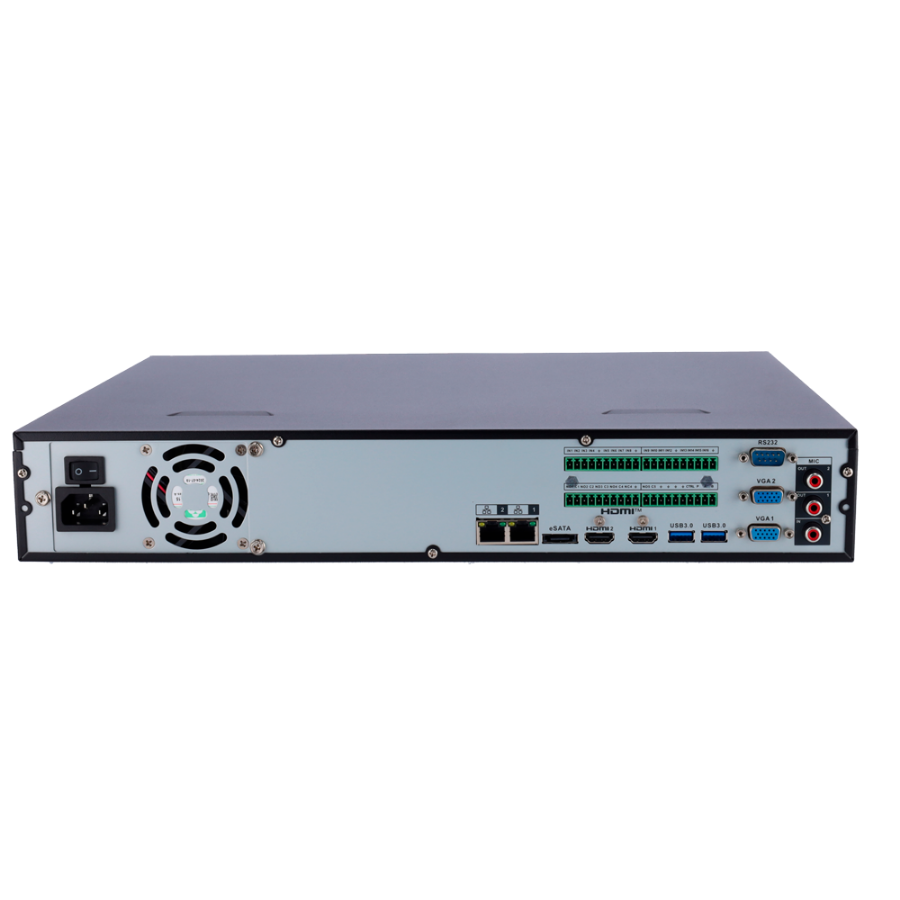

| Communication | 3x USB (Mouse and backup) / 1xRS232 / 1xRS484 / 1 RJ45 10/100/1000M (Ethernet) |
| Racking | 1.5U |
| Remote access | Browser (ActiveX), Mobile phone application, DSS or DSS PRO software |
| Power | AC 100~240 V, 50/60 Hz, >10W |
| Operating temperature | –10 °C to +55 °C, 10%-93% (RH, non-condensing) |
| Dimensions | 53 (H) x 375 (W) x 329.3 (D) mm / 2.6 Kg |
