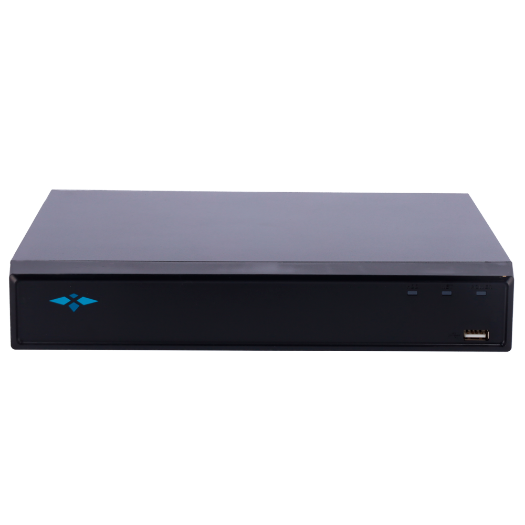

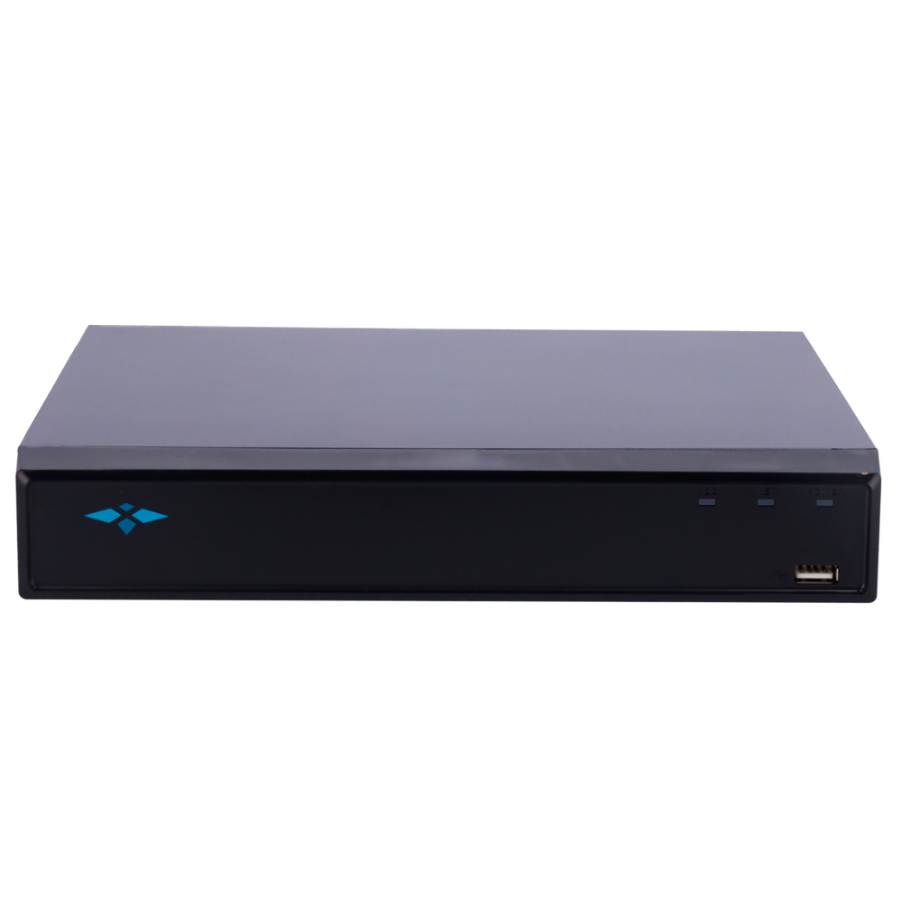

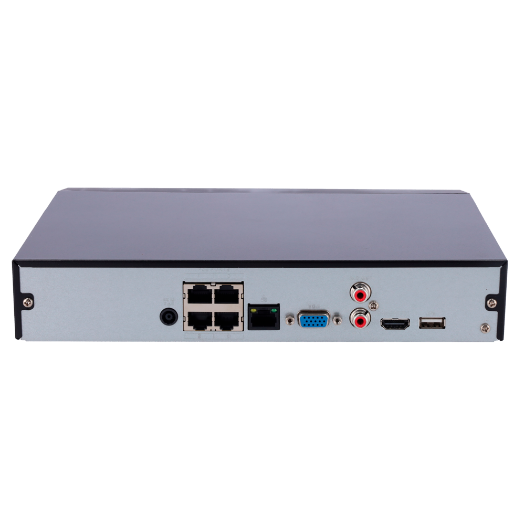

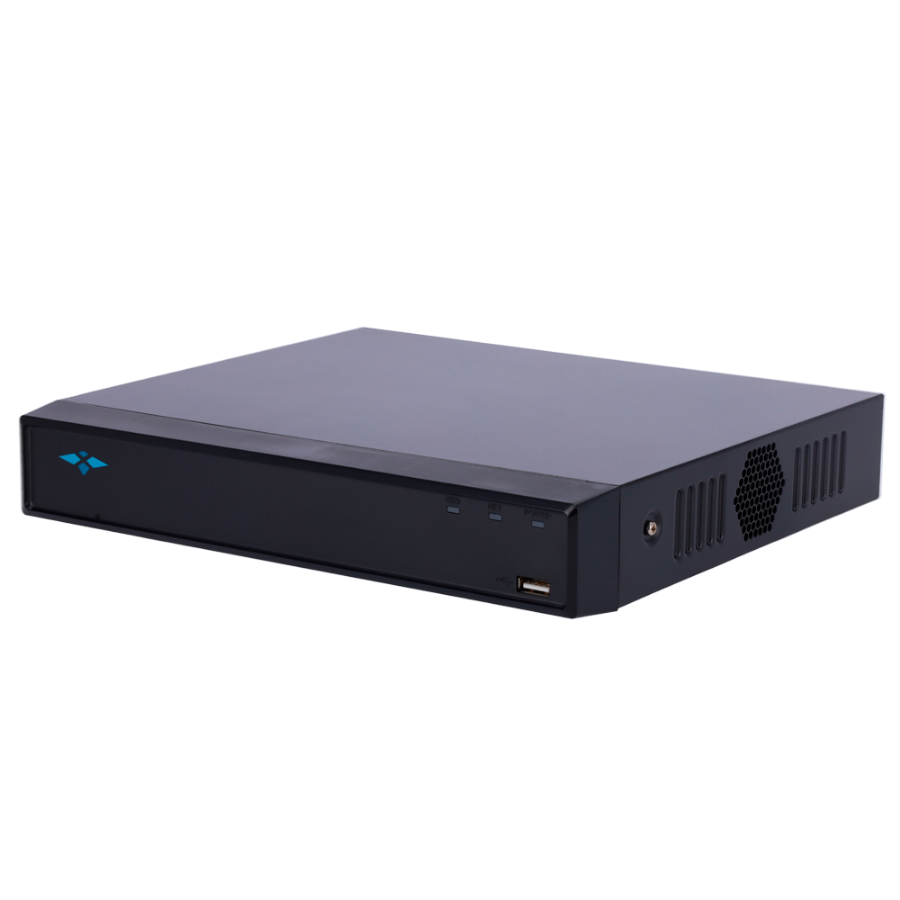

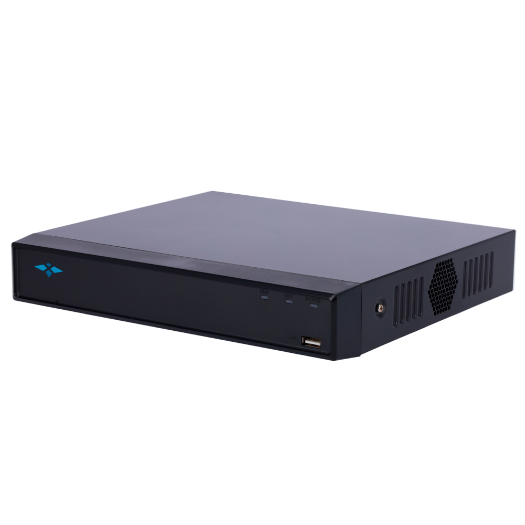

| Brand | X-Security |
| Inputs for IP cameras | LAN port up to 4 channels |

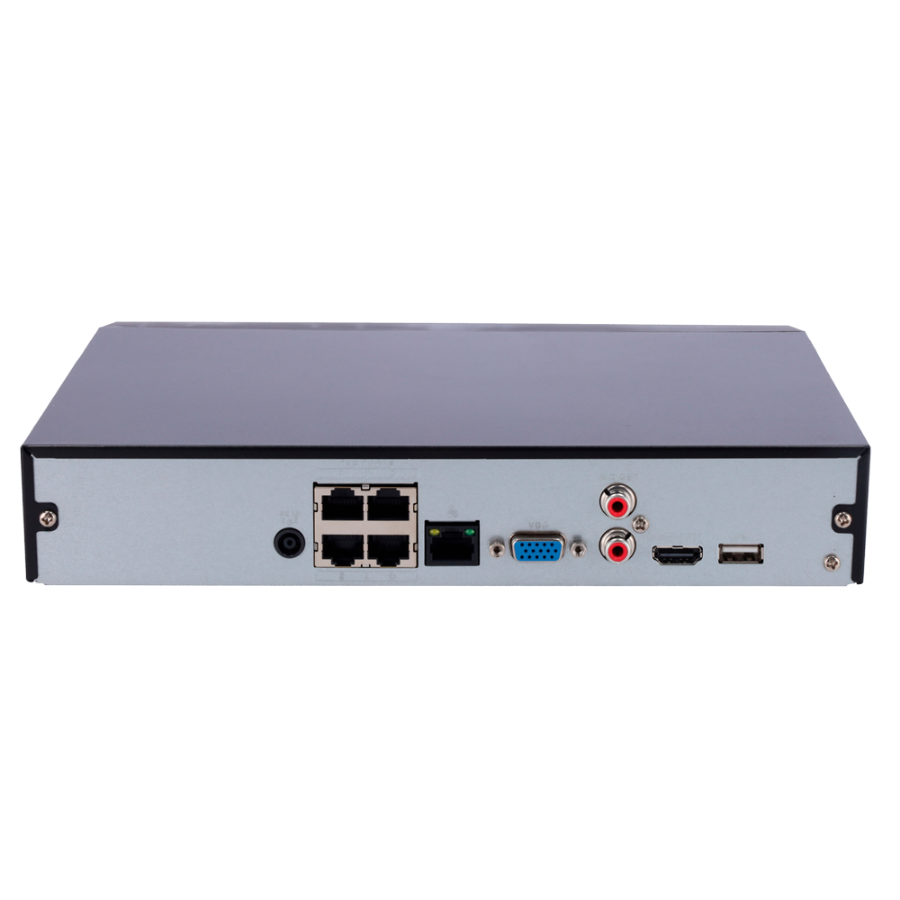

| PoE channels | 4 PoE channels, 10/100 Mbps |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Bidirectional audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265 / H.265 / Smart H.264 / H.264 |
| Decoding capacity | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Total bandwidth | 80 Mbps record |
| Recording resolution | 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1 |
| ONVIF | Profile T/S/G |
| AI functions | Perimeter protection / SMD Plus |
| Perimeter performance of AI per camera (Number of Channels) | 4 |
| SMD Plus through camera | SMD Plus of 4 channels (AI per camera), secondary filtering for human and motor vehicles |

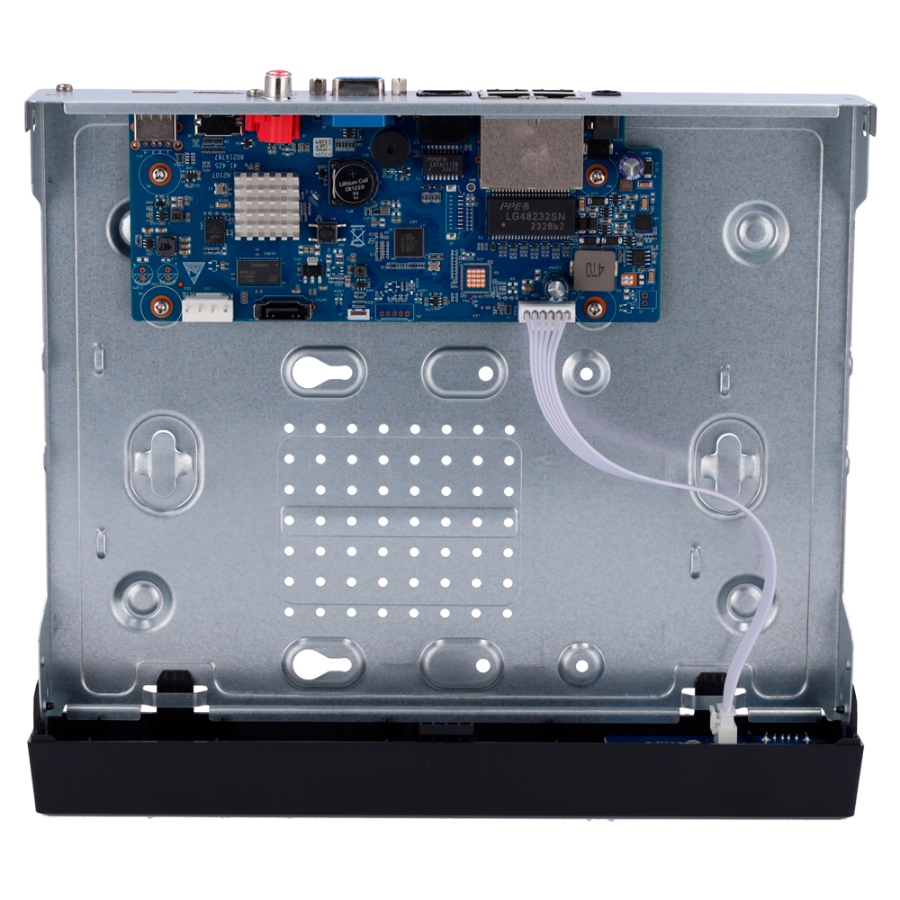

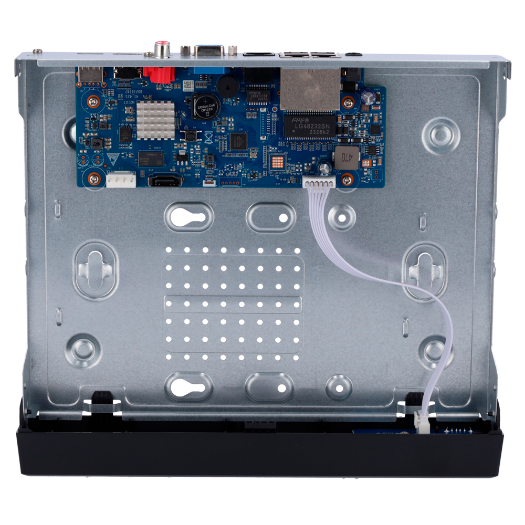

| Internal memory | 1 SATA HDD 3.5" of up to 16 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) / 1 RJ45 10/100M (Ethernet) |
| Remote access | Web browser, mobile phone application or PSS software |
| Power | DC 48/53 V, 1.25/1.13 A |

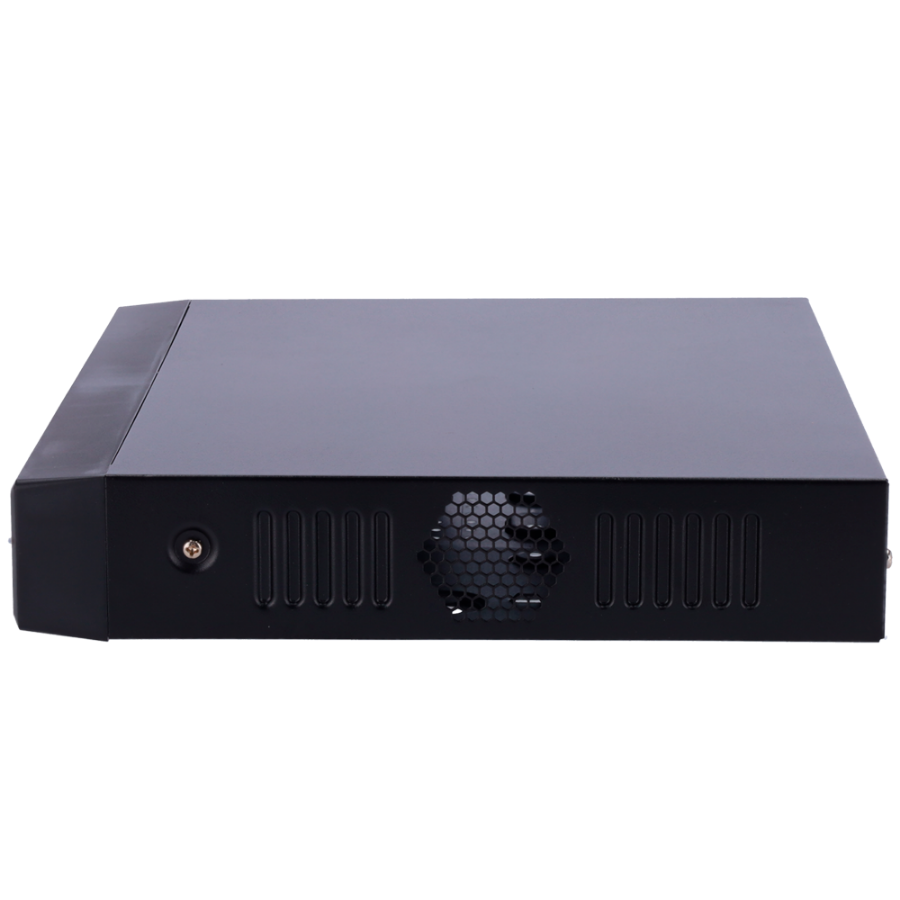

| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 1.75 Kg (without HDD) |
