| Brand | X-Security |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | Term: 1280 × 960 (1.3M), XVGA (1024 × 768), VGA (640 × 480), 256 × 192 × [%VAR%]Opt: 2336 × 1752, 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576) |
| Extra Stream rate | Term: VGA (640 × 480), 256 × 192Opt: 720P (1280 × 720), D1 (704 × 576)/CIF (352 × 288), 352 × 288 |
| Compression | H.265 / H.264 / H.264H / MJPEG |
| Electronic Shutter | 1~1/30.000 s |
| Minimum illumination | Colour: 0.05 Lux0 Lux with IR range 30 m |
| Lens | Thermal: 3.5 mmLens: 4 mm |
| Viewing angle | Thermal: 50.6° (H), 37.8° (V) Lens: 71.2° (H), 52° (V) |
| Range performance | Human: 146 m (D), 38 m (R), 19 m (I)Vehicle: 449 m (D), 110 m (R), 56 m (I) |
| VCA ranges | Human: 24.5 mVehicle: 73.5 mHeat Detection (Object 0.2x0.2m)): 45 m |
| Thermal sensitivity | < 40 mK |
| Spectral range | 8~14 µm |
| Pitch detector | 12 µm |
| Intelligent functions | Heat detection and alarmHot and cold spot detectionClassification of persons and vehiclesSmoke detectionCall detection |
| smart improvements | DWDR, 3DNR, BLC, HLC, AGC, AWB, ROI, Flip 180o |
| Audio | 1 Input / 1 Output |
| Alarm | 2 Inputs / 2 Outputs |
| Audio Compression | G.711a; G.711mu; PCM |

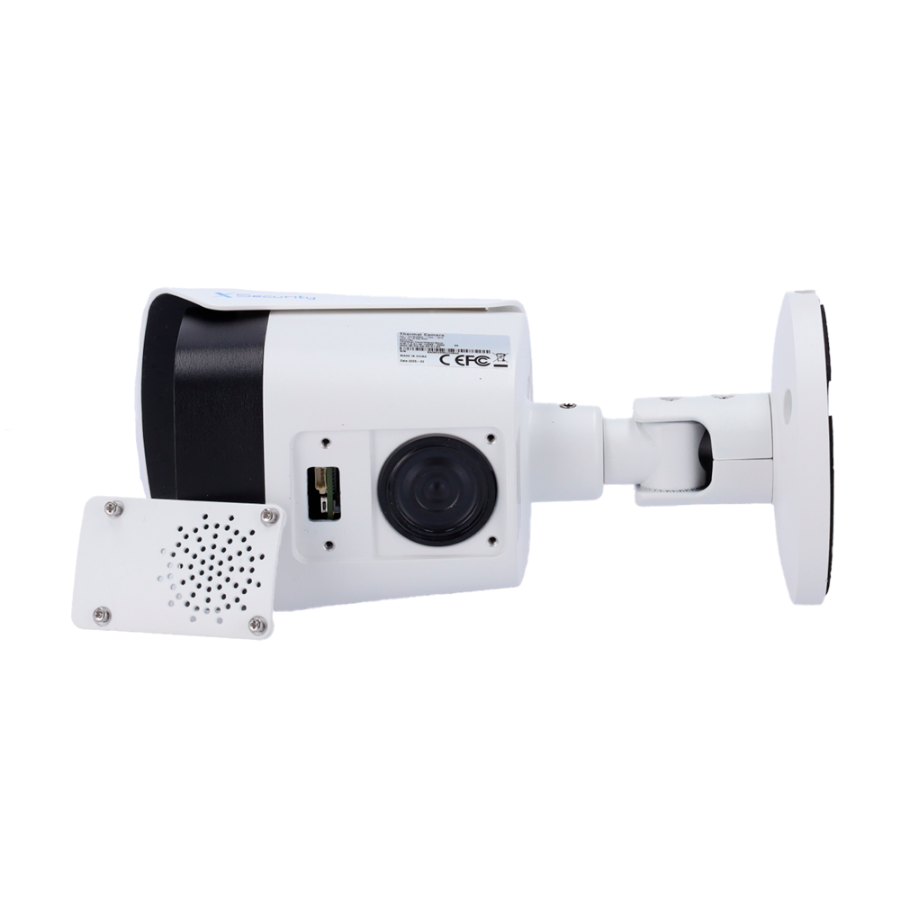

| Internal memory | MicroSD card slot up to 256 GB |
| Communication | 1 x RS-485 |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V, 8.5 W max.PoE IEEE802.3af, 10 W max. |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 90.4 mm (w) x 90.1 mm (h) x 205.5 mm (d) |

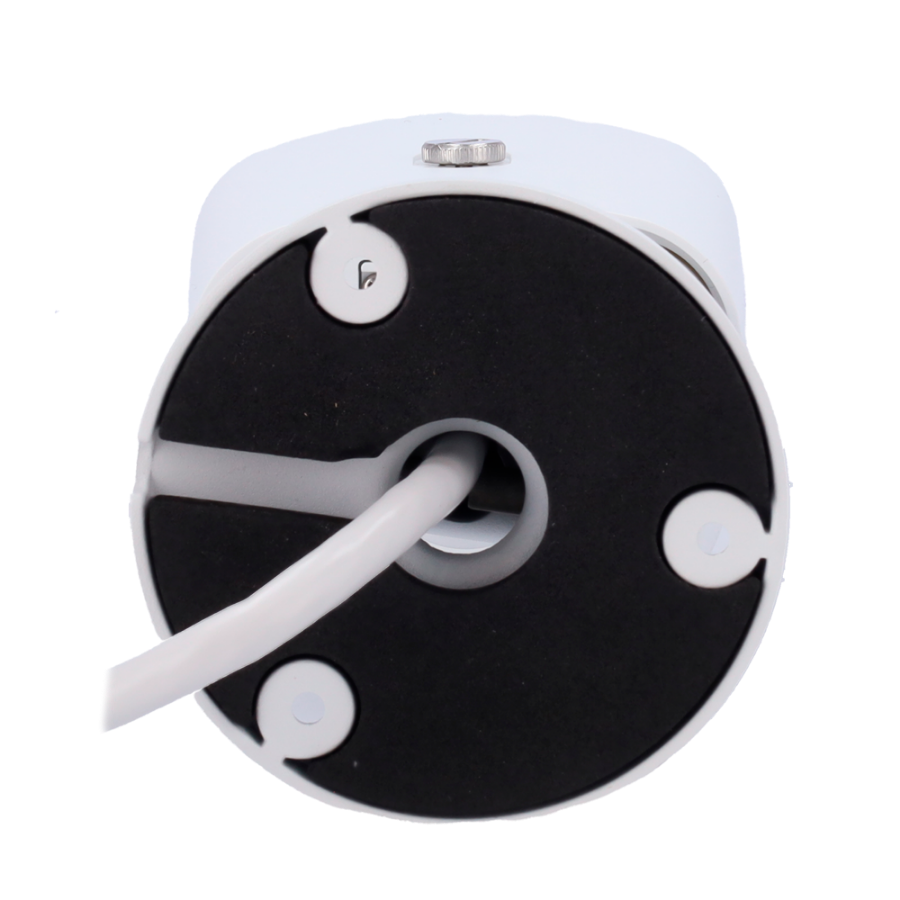

| Base dimensions | O base 90.4 mm / O between bolts 70 mm / 3 bolts |
| Weight | < 0.9 kg |
