| Brand | X-Security |
| Maximum resolution | 6 Megapixel (3288x1850) |
| Image sensor | 1/2.7” Progressive CMOS |
| Lens | 2.7~13.5 mm Varifocal Motorised Lens |
| Viewing angle | H: 114°~32°; V: 58°~17°; D: 138°~36° |
| Range performance | 64~210 m (D), 25.6~84 m (O), 12.8~42 m (R), 6.4~21 m (I) |
| Main Stream rate | 3288x1850@(1–20 fps) / 2688x1520@(1-25/30 fps) |
| Extra Stream rate | 704x576@(1–25 fps) / 704x480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.007 lux@F1.5 (Color, 30 IRE)0.0007 lux@F1.5 (B/W, 30 IRE)0 lux (with illuminator on) |
| Dual Light | Detection modes:Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target)IR modeWhite LED mode |
| IR range | 40 m (IR)40 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart Dual Light, Mirror effect, Privacy masking |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |

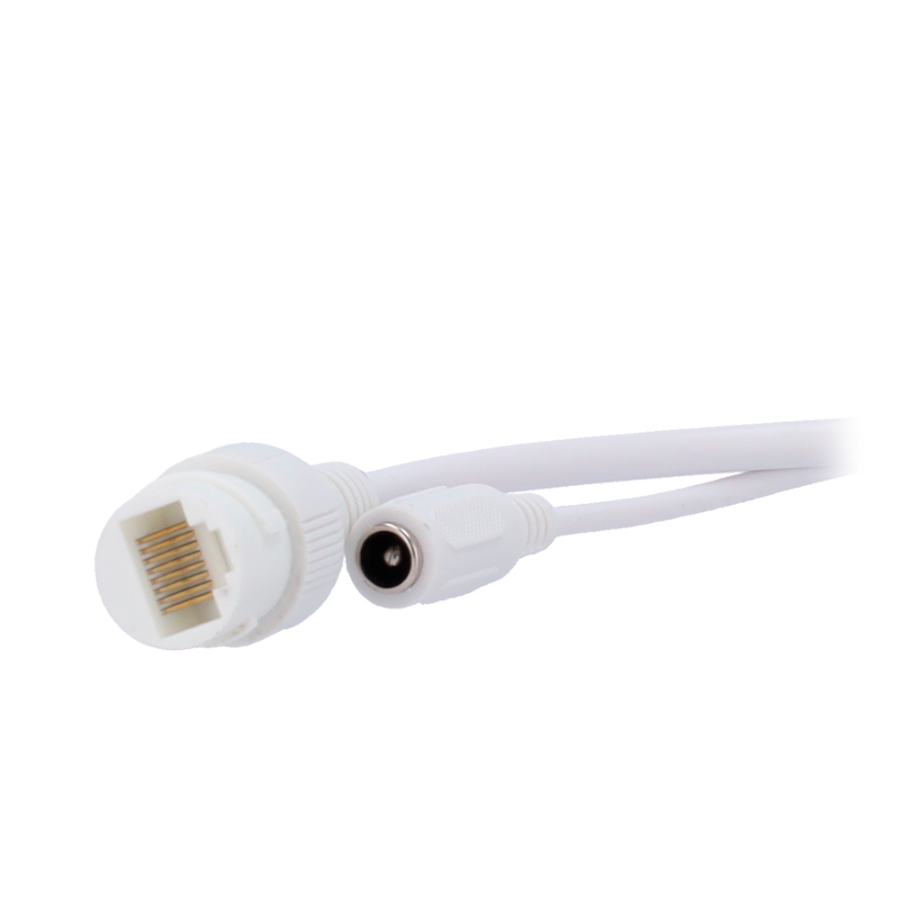

| Network interface | Ethernet 10/100M BaseT |
| Audio | Integrated microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S, G, T); CGI |
| Power | DC 12 V / 8.4 W max.PoE IEEE802.3af / 10.1 W max. |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 122 (?) x 108.3 (H) mm |

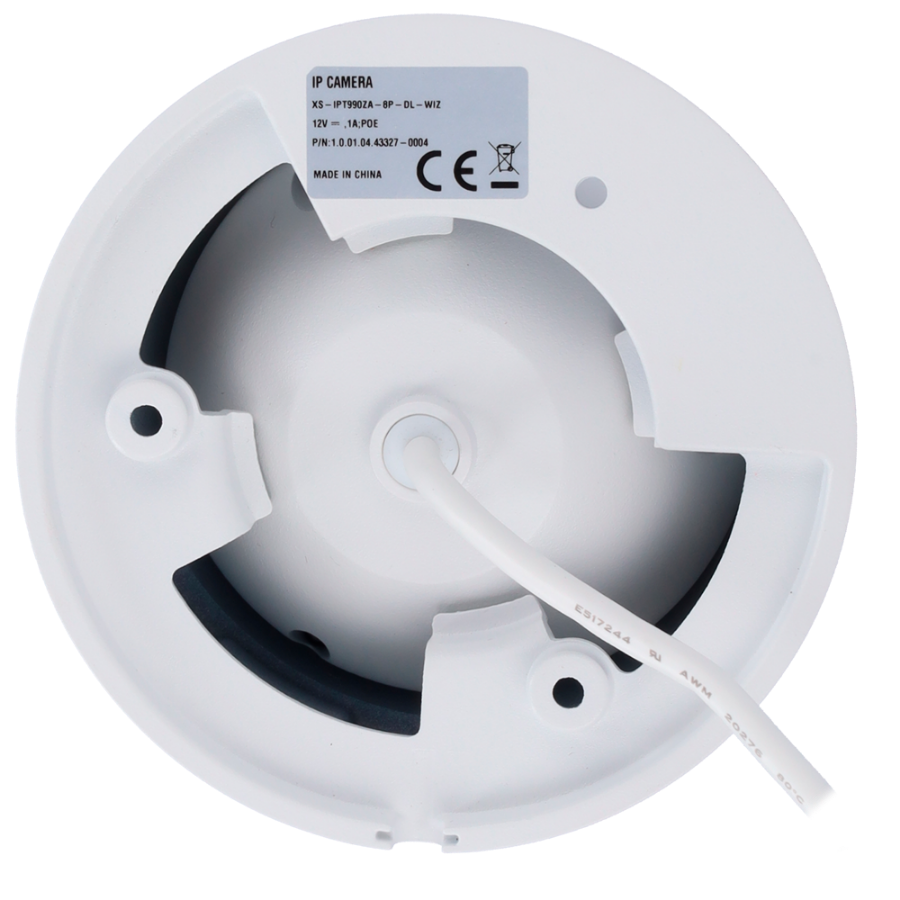

| Base dimensions | O base 122 mm / O between bolts 84 mm / 3 bolts |
| Weight | 690 g |
