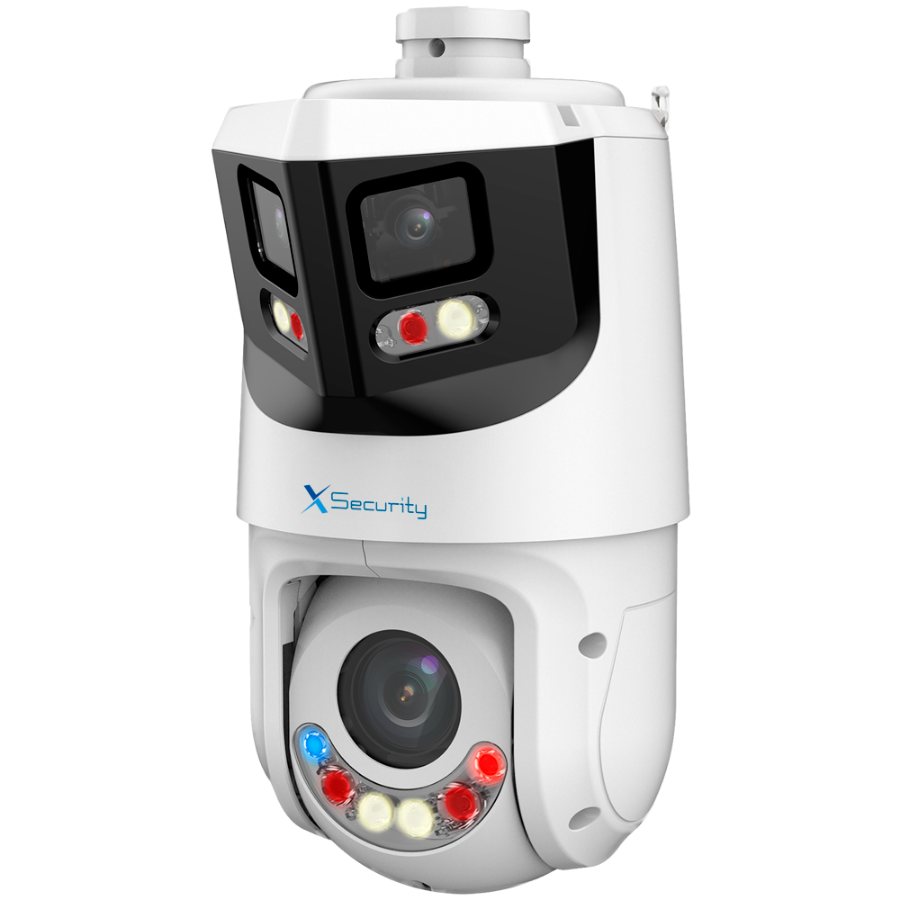

| Brand | X-Security |
| Range | ULTRA |
| Image sensor | PTZ: 1/2.8“ Progressive Scan CMOSPanoramic: 1/2.7“ Progressive Scan CMOS |
| Resolution | PTZ: 4 Megapixel (2560x1440)Panoramic: 8 Megapixel (4096x1860) |
| Main Stream rate | Panoramic: 4096x1860 @(1~25/30 fps)PTZ: 4MPx/ 3MPx/ 1080p/ 1.3MPx/ 720p @(1~25/30 fps) |
| Extra Stream Rate 1 | Panoramic: 1024x448 / D1 / VGA / CIF @(1~25/30 fps)PTZ: D1/ CIF/ VGA @(1~25/30 fps) |
| Extra Stream Rate 2 | Panoramic: 2048x928 / 1080p / 1.3MPx / 720p @(1~25/30 fps)PTZ: 1080p/ 1.3MPx/ 720p @(1~25/30 fps) |
| Minimum illumination | PTZ: 0.005 lux@F1.6 (Color, 30 IRE);0.0005 lux@F1.6 (B/W, 30 IRE);0 lux with illuminator.IR range: 100 mWhite light range: 50 mPanoramic: 0.005 lux@F1.4 (Color, 30 IRE);0.0005 lux@F1.4 (B/W, 30 IRE); |
| Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M |
| Bitrate | Overview:H264: 128 kbps–16,384 kbpsH265: 51 kbps–13,312 kbpsPTZ:H264: 96 kbps–16,384 kbpsH265: 38 kbps–10,240 kbps |
| Lens | PTZ: Varifocal 5~125 mm (Optical Zoom 25X)Panoramic: 2.8 mm |
| Viewing Angle (FOV) | PTZ: H: 51.9~3o, V: 39.7~2.2o, D: 63.1~3.7oOverview: H: 180o, V: 86o |
| Range performance | PTZ: 100~25000 m (D), 40~1000 m (O), 20~500 m (R), 10~250 m (I)Overview: 56 m (D), 22.4 (O), 11.2 (R), 5.6 (I) |
| Digital zoom | 16X (PTZ) |
| Electronic Shutter | 1~1/30.000 s |
| Day / Night | Removable mechanical ICR filter |
| Auto Focus | Semi-auto, Manual or Auto |
| Image improvements | PTZ: WDR (120 dB), Panoramic: DWDRBLC, HLC, 2D/3D-DNR, AGC, AWB, ROI |
| EIS (Image Stabilizer) | Yes (PTZ) |
| SMD (Smart Motion Detection) | Advanced SMD motion detection 4.0 |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Pan/Tilt Range | Horizontal: 0o~360° endless, Vertical: -15°~90° auto flip 180o |
| Manual speed | Horizontal: 0.1~180°/s, Vertical: 0.1~90°/s |
| Speed between Presets | Horizontal: 0.1~180°/s, Vertical: 0.1~90°/s |
| Preset positions | 300 preset, 5 auto pattern, 8 auto tour, auto pan, auto scan |
| Smart Tracking | Yes |
| Internal memory | MicroSD card slot up to 512 GB |
| Alarms | 2 IN / 1 OUT |
| Deterrent alarm | Light:Warning with red and blue light;Flash duration: 5 s–30 s;Flash frequency: high, medium, lowAudio:It offers 11 audible alarms and 10 custom audible alarms can be imported.The sound can be adjuste |
| Audio | 1 Input / 1 Output |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | WEB, CMS (DMSS/DSS Pro), Smartphone and NVR interface |
| Interoperability | ONVIF (S-profile, G-profile, T-profile), CGI, SDK |
| Power | DC 12 V, max. 25 WPoE+ (IEEE802.3at) |
| Temp. operation | -40o C ~ +65o C |
| Degree of protection | Weatherproof IP66Surge protection 6000 V |
| Dimensions (without bracket) | 311 mm (H) x 194.2 mm (D) x 160 mm (W) |
| Weight (without bracket) | 3.1 kg |
