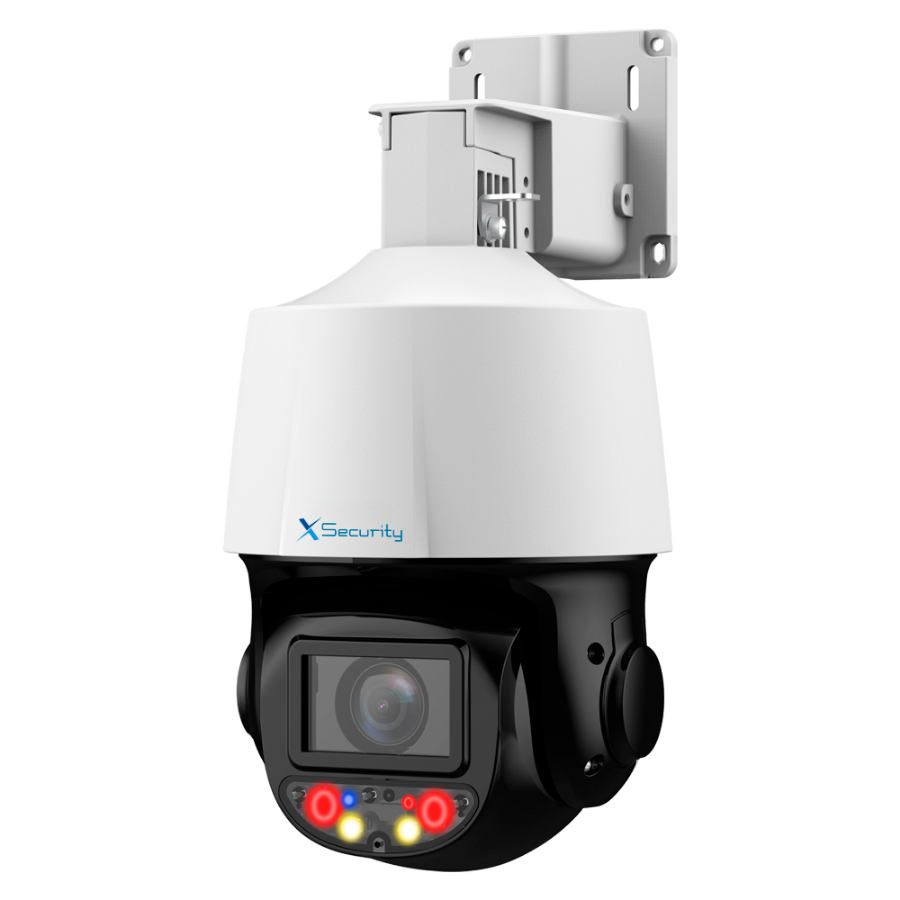

| Brand | X-Security |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Lens | Varifocal 4~40 mm (optical zoom 10x)) |
| Viewing Angle (FOV) | H: 50.7o~11o, V: 27.6o~6.3o, D: 57.6o~12.5o |
| Range performance | 800 m (D), 316 m (O), 160 m (R), 80 m (I) |
| Focus | Auto; semi-auto; manual |
| Digital zoom | 16x |
| Electronic Shutter | 1 s~1/30.000 s |
| Minimum illumination | 0.005 Lux @(F1.6, AGC ON)0 lux with IR |
| Supplementary lighting | Dual light (IR + white light)IR range of 70 mWhite light range 30 m |
| Day / Night | Removable mechanical ICR filter |
| Compression | H.265; H.264B; H.264M; H.264H; MJPEG(Sub Stream 1); smart H.265+; smart H.264+ |
| Main Stream rate | 4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps) |
| Extra Stream Rate 1 | D1/VGA/CIF @(1–25/30 fps) |
| Extra Stream Rate 2 | 1080p/1.3Mpx/720p @(1–25/30 fps) |
| Bitrate | H264: 96 Kbps~14848 KbpsH265: 38 Kbps~8960 Kbps |
| Image improvements | WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, Rotation 180o |
| Motion Detection | Yes |
| EIS (Image Stabilizer) | Yes |
| SMD (Smart Motion Detection) | SMD 3.0, advanced motion detection |
| IVS (Perimeter protection) | Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/human alarm classification |
| Face detection | Supports face detection, image captures, and face enhancement. Supports face trimming: face, one inch photo.Capture strategies include real-time capture and quality prioritization. |
| Audio | 1 input / 1 outputBuilt-in microphone and speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2_Layer2; G.722.1 |
| Alarms | 1 input / 1 output |
| Deterrent alarm | Integrated red and blue siren and lights |
| Internal memory | MicroSD card slot up to 512 GB |
| Pan/Tilt Range | Horizontal: 0°~355°Vertical: -15°~90° |
| Manual speed | Horizontal: 0.1°~27.31°/s Vertical: 0.1°–19.30°/s |
| Speed between Presets | Horizontal: 24.32°/s Vertical: 18.75°/s |
| Preset positions | 300, 8 tour, 5 Pattern, 5 Scan |
| Auto Tracking | Yes |
| Communication | ONVIF (profile S, G, T), CGI, SDK, P2P |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Power | DC 12 V / 2 A, max. 15 WPoE+ (IEEE802.3at) |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP66Surge protection 2000 V |
| Mounting | Wall, ceiling or pole |
| Dimensions | 236.2 mm (H) x 151.8 (W) mm x 142.6 (D) mm |
| Weight | 1.58 Kg |
