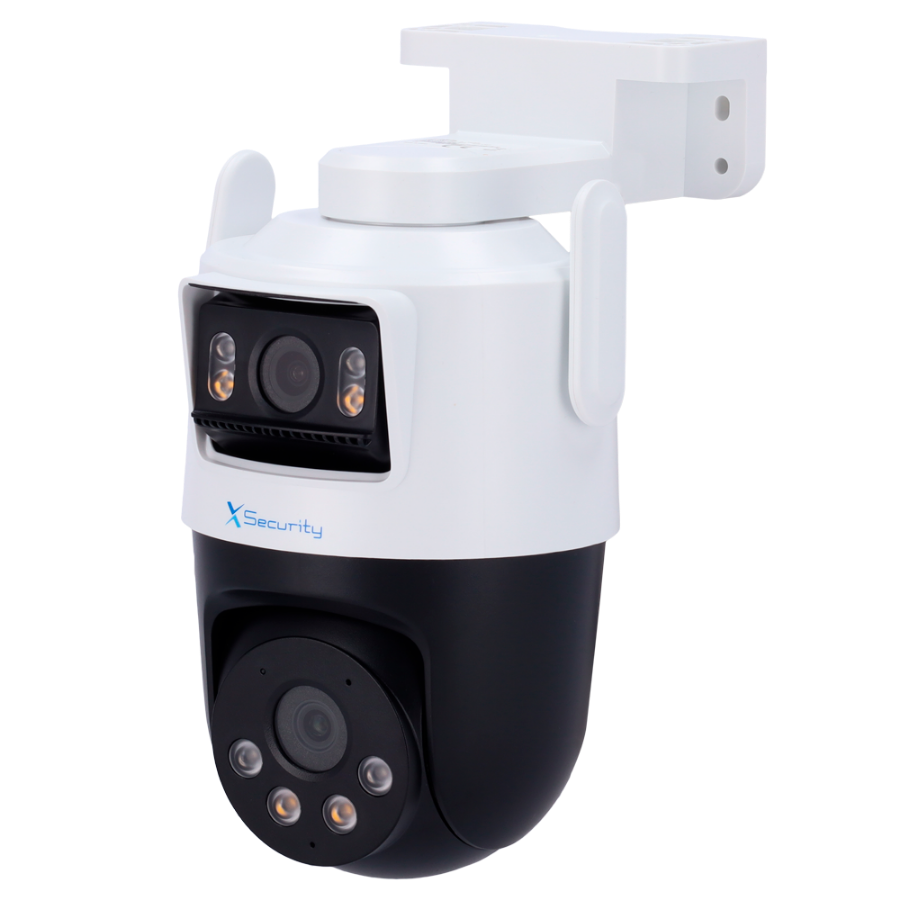

| Brand | X-Security |
| Range | Wi-Fi |
| Image sensor | PT: 1/3“ Progressive Scan CMOSPanoramic: 1/3“ Progressive Scan CMOS |
| Resolution | PT: 5 Megapixel (2880x1620)Panoramic: 5 Megapixel (2880x1620) |
| Main Stream rate | 2880x1620 @15 fps |
| Extra Stream Rate 1 | 640x360 @15 fps |
| Compression | H.265 |
| Bitrate | 768 kbps–4096 kbps |
| Lens | PT: 6 mmPanoramic: 2.8 mm |
| Viewing Angle (FOV) | PT: H: 49o, V: 26o, D: 57oOverview: H: 95o, V: 53o, D: 110o |
| Day / Night | Removable mechanical ICR filter |
| Auto Focus | Semi-auto, Manual or Auto |
| Image improvements | DWDR |
| SMD (Smart Motion Detection) | Advanced SMD motion detection |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Pan/Tilt Range | PT: Horizontal: 0~352°, Vertical: 0~90°Overview: -10°~15° |
| Preset positions | 300 preset, 5 auto pattern, 8 auto tour, auto pan, auto scan |
| Auto Tracking | Yes |
| Internal memory | MicroSD card slot up to 256 GB |
| Audio | Built-in microphone and speakerSiren and strobe light |
| Audio Compression | G.711a |
| PTZ Control | Through network access |
| Network interface | Ethernet 10 / 100 BaseTWi-Fi IEEE802.11 b/g/n/ax (Bluetooth pairing) |
| WiFi frequency | 2.412-2.472 GHz |
| Remote access | CMS (DMSS/DSS Pro), Smartphone and NVR |
| Power | DC 12 V, max. 10.6 W |
| Temp. operation | -20o C ~ +50o C |
| Material | Plastic |
| Degree of protection | Weatherproof IP66 |
| Dimensions (without bracket) | 210 mm (H) x 159.4 mm (D) x 119.1 mm (W) |
| Weight (without bracket) | 585 g |
