| Brand | X-Security |
| Image sensor | 1/2.7” Progressive CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Lens | 1.4 mm (H: 180o, V: 180o, D: 180o) |
| Main Stream rate | 5M (2592 × 1944 @1–25/30 fps) |
| Extra Stream rate | 704 × 576 @1–25 fps/704 × 480 @1–30 fps |
| Compression | H.265+/H.265/H.264+/H.264 |
| Range performance | 28 (D), 11.2 (O), 5.6 (R), 2.8 (I) |
| IVS (Perimeter protection) | Tripwire; intrusion |
| People count | Support people counting in the area and display and issue annual / monthly / daily reports (matching devices required); Support people counting in 4 areas |
| Heat map | Yes |
| Image improvements | WDR 120 dB, 3DNR, AWB, AGC, BLC, HLC, Privacy Masking, ROI |

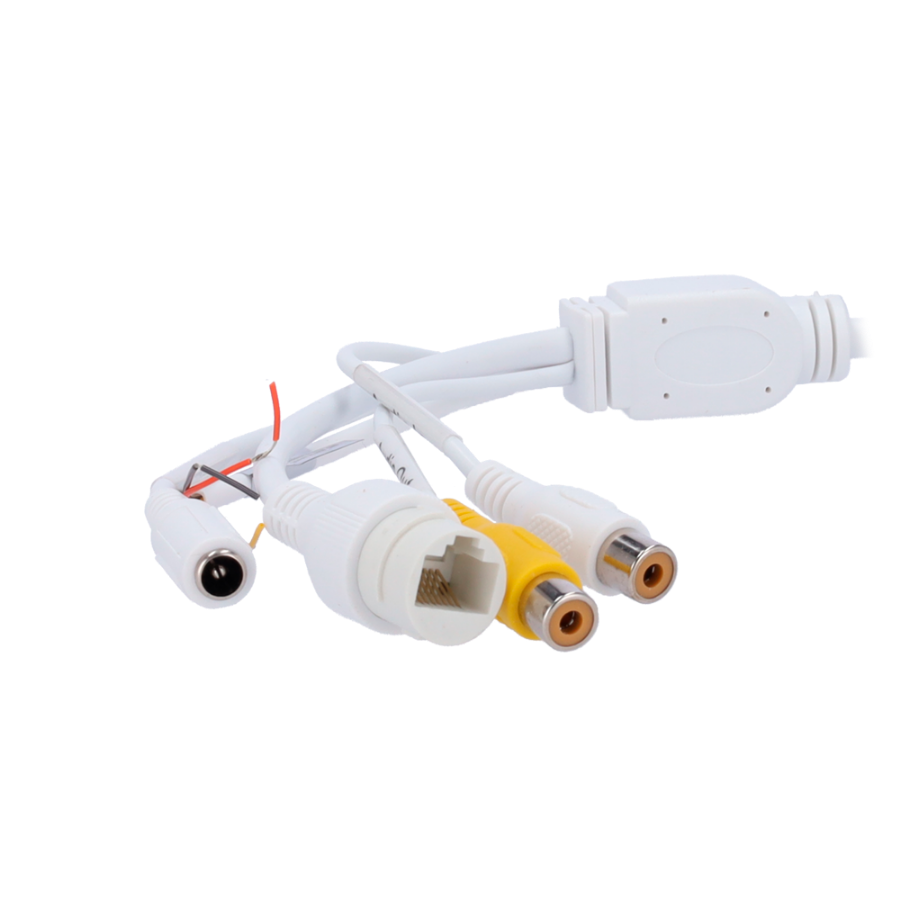

| Audio | 1 Input channel (RCA port)1 Output channel (RCA port)Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Internal memory | MicroSD card up to 256 GB (not included) |
| Alarms | 1 input channel: 5mA 3V–5V DC1 output channel: 300mA 12V DC |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V / 3.4W, PoE IEEE802.3af |
| Material | Metallic |
| Degree of protection | Weatherproof IP67, Anti-vandal IK08 |
| Temp. operation | -30o C ~ +60o C |
| Dimensions | 56 mm (D) x 110 (O) mm |
| Weight | 380 g |
