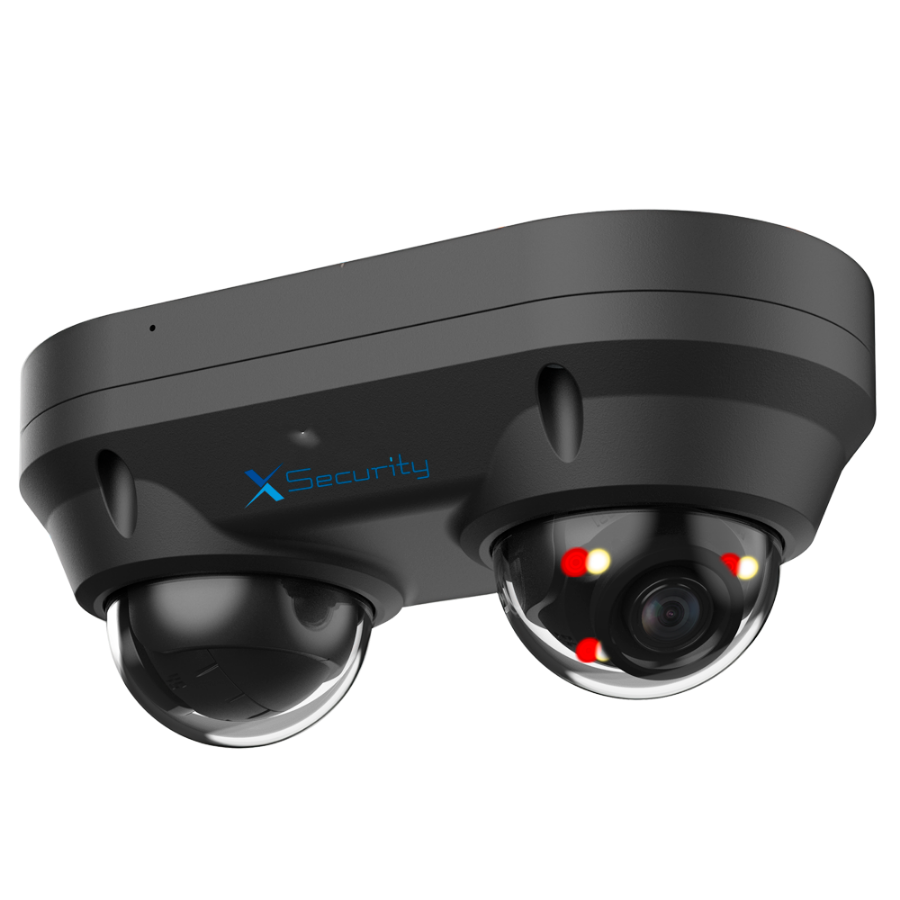

| Brand | X-Security |
| Image sensor | 2x 1/2.7” CMOS image sensor |
| Maximum resolution | 2x 4 Megapixel (2560 × 1440) |
| Lens | 2.8 mm (H: 101.5°; V: 54.7°; D: 120.8°) |
| Resolution | 4MP (2560 × 1440) / 3MP (2304 × 1296) / 1080p (1920× 1080) / 1.3MP (1280 × 960) / 1.3MP (1280 × 960) / 720p (1280 × 720) / D1 / CIF |
| Main Stream rate | 2560 × 1440 @(1–25/30 fps ) |
| Extra Stream rate | 704 × 576 / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.005 lux@F1.6 (Colour, 30 IRE)0.0005 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on) |
| Dual Light | IR 30mWhite led 20m |
| Range performance | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Video Bit Rate | H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps |
| SSA (Scene Self-Adaptation) | Yes |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| People count | Yes |
| Network interface | Ethernet 10/100M BaseT |
| Audio | 1 Input / 1 Output / Built-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| External storage | 256 GB microSD card slot |
| Alarms | 1 input / 1 output |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power | DC 12 V / 3.1 W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Material | Metallic |
| Lens Adjustment | 3 AxisBread: 0°–175°Tilt: 0°–65°Rotation: 0°–360° |
| Color | White |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Dimensions | 66.2 mm (D) x 122 (O) mm |
| Weight | 520 g |
