| Brand | X-Security |
| Image sensor | 1/2.7" 4MP progressive CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Minimum illumination | 0,003 lux@F1,0 (color, 30 IRE) 0,0003 lux@F1,0 (black and white, 30 IRE) 0 lux (illuminator on) |
| Lens | 2.7–13.5 mm: (H: 103°–33°; V: 54°–18°; D: 124°–38°) |
| Bitrate | H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps |
| Main Stream rate | Main stream: 2688 × 1520@(1 fps–30 fps)Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)Third stream:1920 × 1080@(1 fps–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only compatible with substream) |
| Image improvements | WDR (120dB), BLC, 3D-DNR, MD, ROI |
| SMD 4.0 | Fewer false alarms, greater detection distance |
| IVS (Perimeter protection) | Tripwire; intrusion (support accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |
| Quick selection | With AI NVR, quickly collect human/vehicle targets of interest to SMD event users |
| AI SSA | Adopt deep learning algorithms to adjust image parameters to suit conditions. |
| Day / Night | Removable mechanical ICR filter |

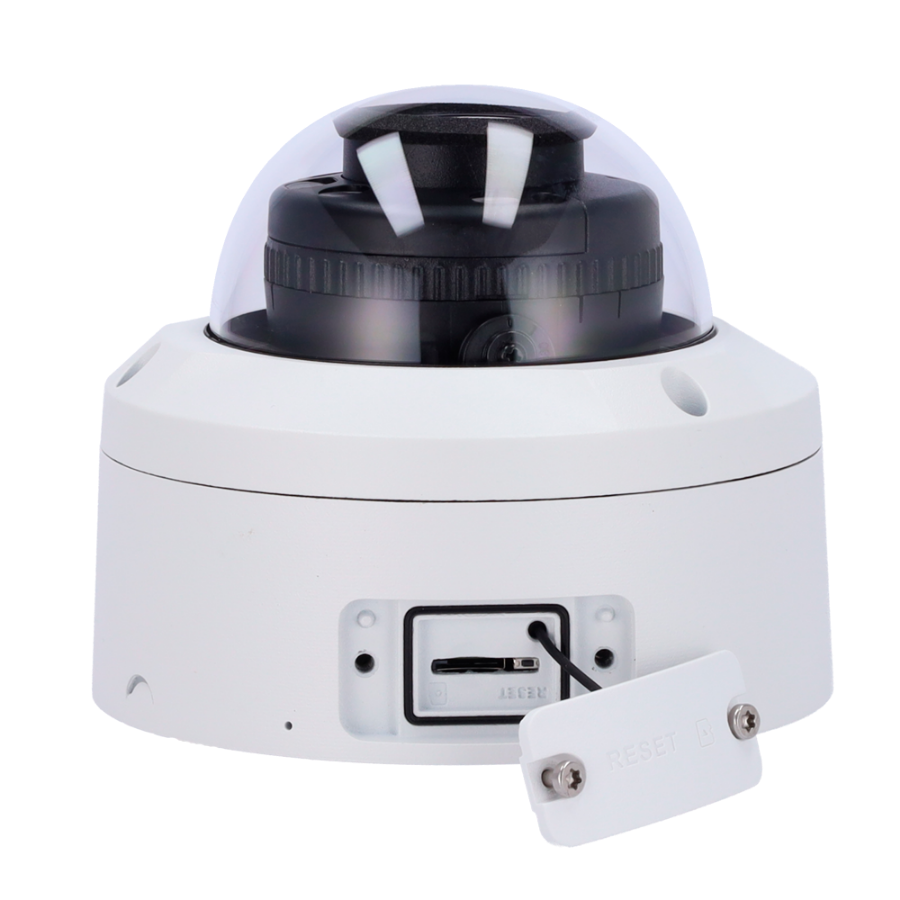

| Internal memory | MicroSD card, Max 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Alarms | 1 input channel: 5mA 3V–5 VDC1 output channel: 300mA 12 VDC |
| Audio | Dual microphone and built-in speaker |
| Remote access | WEB, CMS (Smart PSS Lite; DSS; DMSS), Smartphone and NVR interface |
| Interoperability | ONVIF (S-Profile; G-Profile; T-Profile); .CGI |
| Power | 12 VCC/PoE (802.3af)Basic: 3,3 W (12 VCC); 4,7 W (PoE)Max. (traction flux + warning light + loudspeaker + warm light on): 7.7 W (12 VCC); 9 W (PoE) |
| Degree of protection | IP67, IK10 |
| Material | Metallic |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 105 mm × ?126.0 mm |
| Weight | 730 g |
