| Brand | X-Security |
| Image sensor | 1/2.9” CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 2688x1520 @(1–25 fps) |
| Extra Stream Rate 1 | 704x576 @(1–25 fps) |
| Extra Stream Rate 2 | 1920x1080 @(1–25 fps) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 107o, V: 56o, D: 127o |
| Range performance | 63.6 m (D), 25.4 m (O), 12.7 m (R), 6.4 m (I) |
| Minimum illumination | 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (black and white, 30 IRE)0 lux with IR |
| Infrared lighting | IR LEDs range 50 m |
| Day / Night | Removable mechanical ICR filter |
| Electronic Shutter | 1/3~1/100.000 s |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI, Mirror function, Privacy masking |
| Video analysis | Line crossing | Area intrusion |
| Intelligent functions | WizSense SMD (Smart Motion Detection): False Alarm Filter for human and vehicle crossing line and intrusion in areaAI SSA (AI Scene Self-Adaptation): Deep learning algorithms to detect environmental c |
| Alarm | 1 input / 1 output |
| Audio | 1 input / 1 outputIntegrated microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 [%VAR%] |

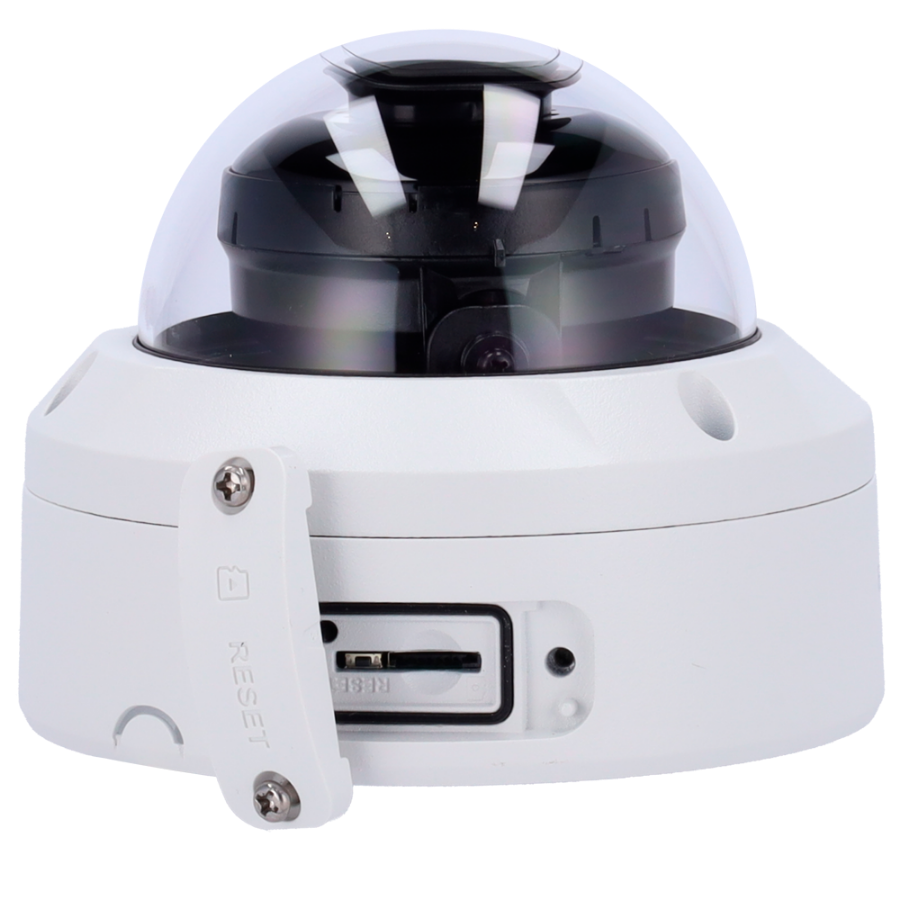

| External storage | MicroSD card slot up to 256 GB |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Network interface | Ethernet 10/100 BaseT |
| Interoperability | ONVIF |
| Power | DC 12 V / 8.3 W max, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Dimensions | 89.1 mm (D) x 111.7 (O) mm |

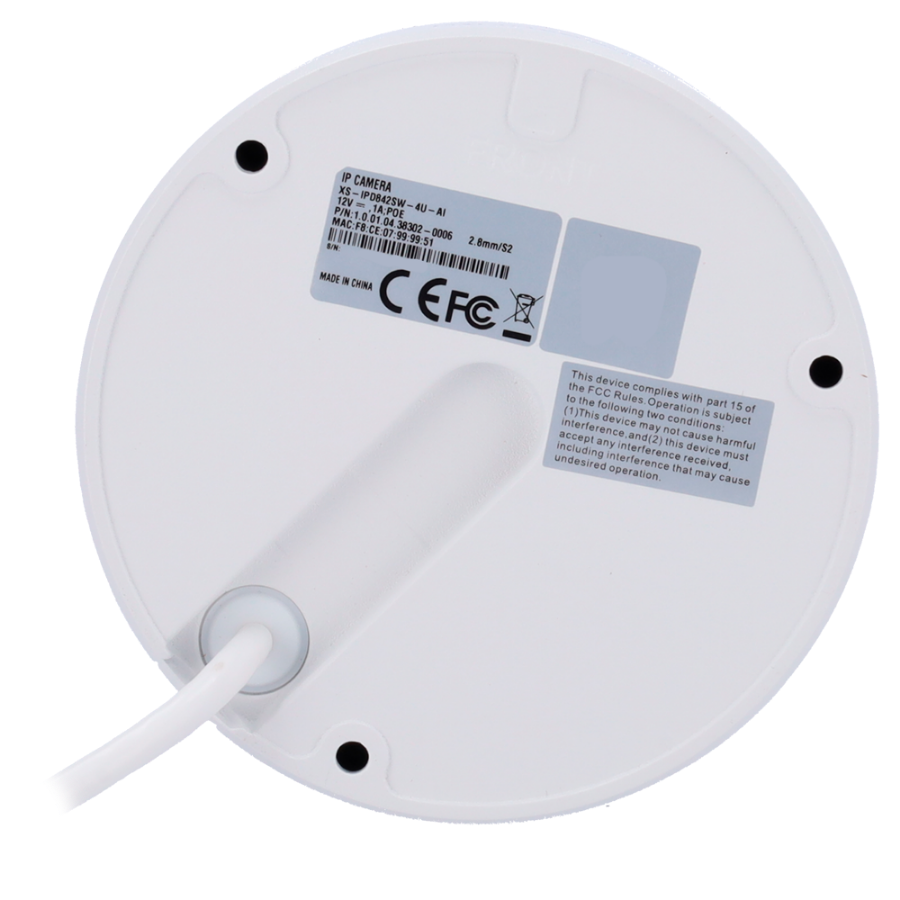

| Base dimensions | Base diameter 111.7 (O) mm, circumference diameter screws 98.2 (O) mm, 3 screws |
| Weight | 516 g |
