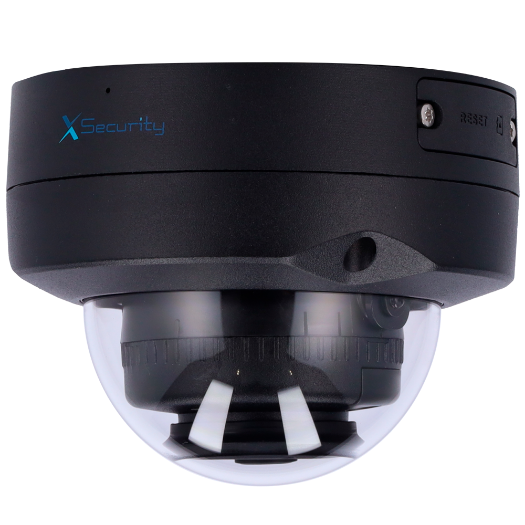

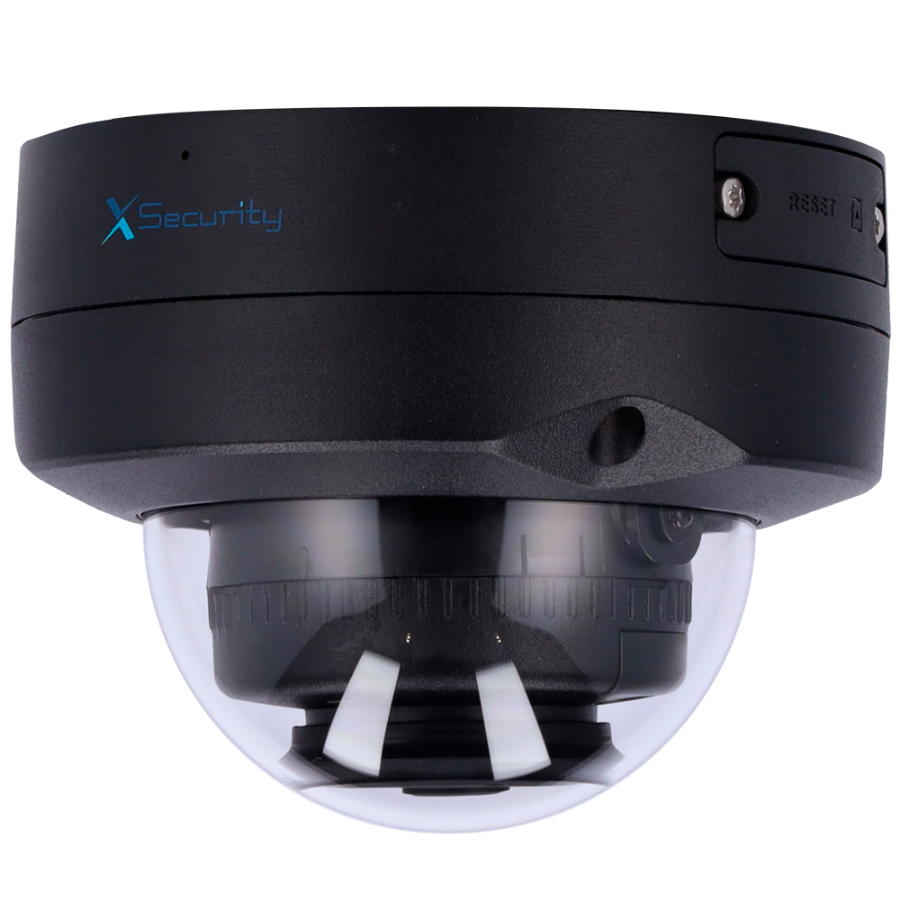

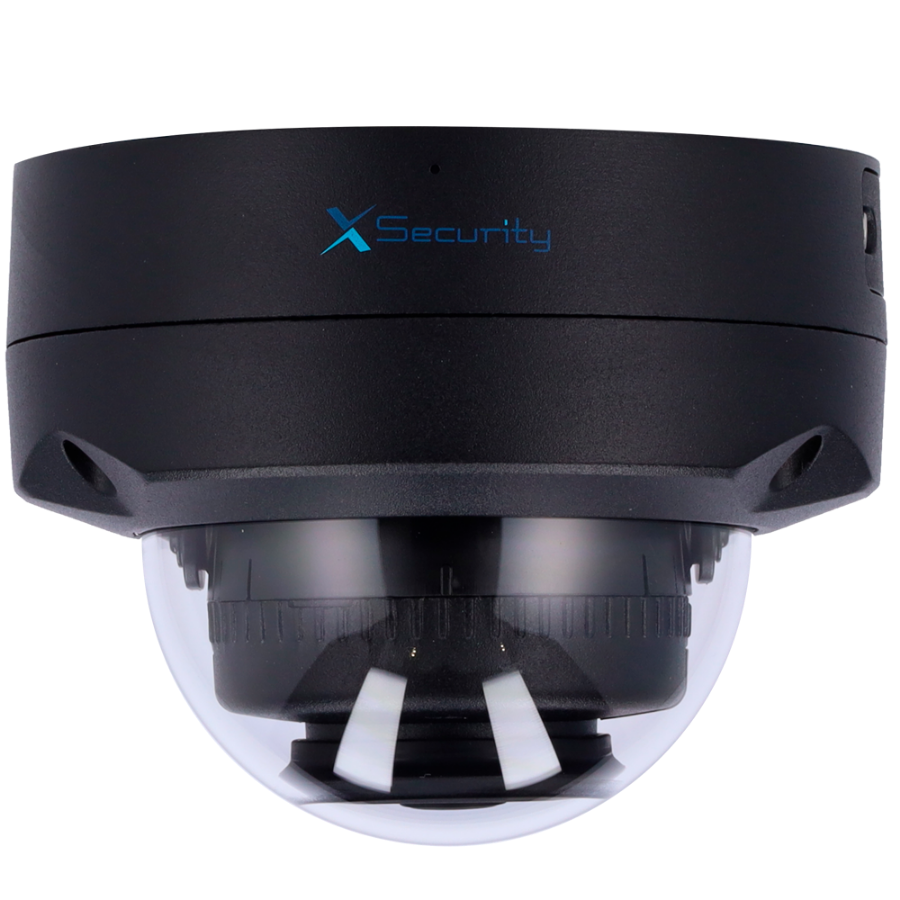

| Brand | X-Security |
| Image sensor | 1/2.7" 4MP progressive CMOS |
| Maximum resolution | 4 Megapixel (2880 × 1620) |
| Lens | 2.1 mm |
| IR illumination distance | 15 m |
| Range performance | 52 (D), 20.8 (O), 10.4 (R), 5.2 (I) |
| Minimum illumination | 0,01 lux@F2,0 (color,30 IRE) 0,001 lux@F2,0 (n/n,30 IRE) 0 lux (illuminator on) |
| Field of view | LDC is deactivated: Horizontal:180°; Vertical: 78°; Diagonal: 180°LDC is enabled (default):Horizontal: 170°; Vertical: 75°; Diagonal: 175° |
| Main Stream rate | 22880 × 1620 @(1–20 fps)/2688 × 1520 @(1–25/30 fps) |
| Resolution | 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296; 1080p (1920 × 1080);1,3 million (1280 × 960); 720p (1280×720); D1 (704× 576/704×480); (640 VGA 480); × CIF(352 288/352 × 2 |
| Video Bit Rate | H.264: 3 kbps–8192 kbps;H.265: 3 kbps–8192 kbps |
| Compression | H.265; H.264; H.264B; MJPEG (only compatible with substring) |
| Intelligent codec | Smart H.265+; Smart H.264+ |
| AI Coding | IA H.265; IA H.264 |
| Image improvements | WDR, BLC, 3D-DNR, MD, ROI |
| SMD 3.0 | Fewer false alarms, greater detection distance |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |
| Day / Night | Removable mechanical ICR filter |

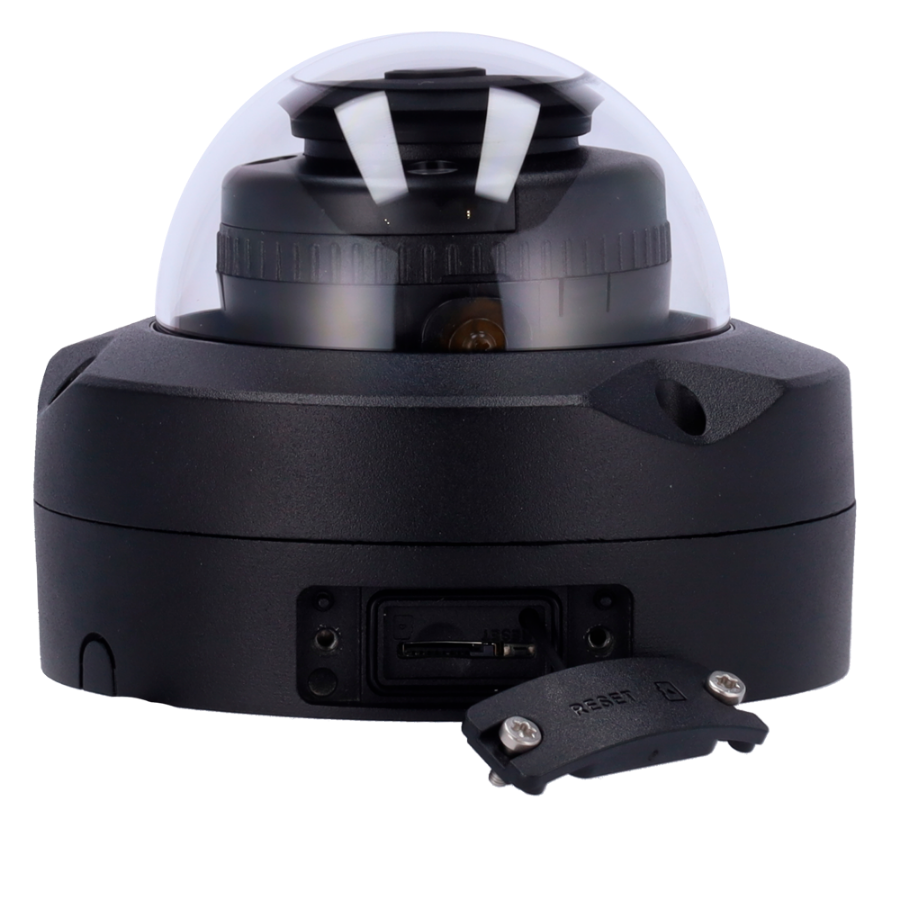

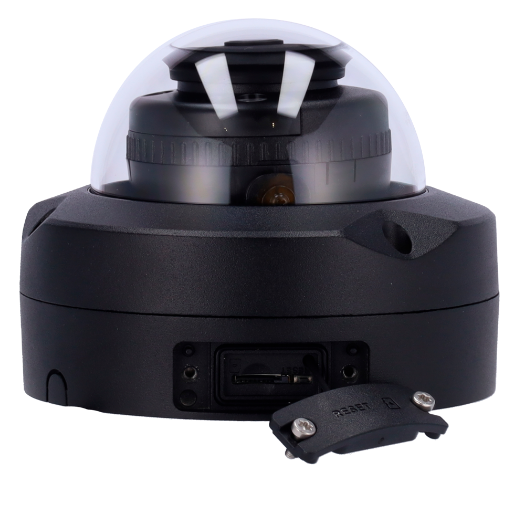

| Internal memory | MicroSD card, Max 256 GB |
| Network interface | Ethernet 10/100 BaseT |

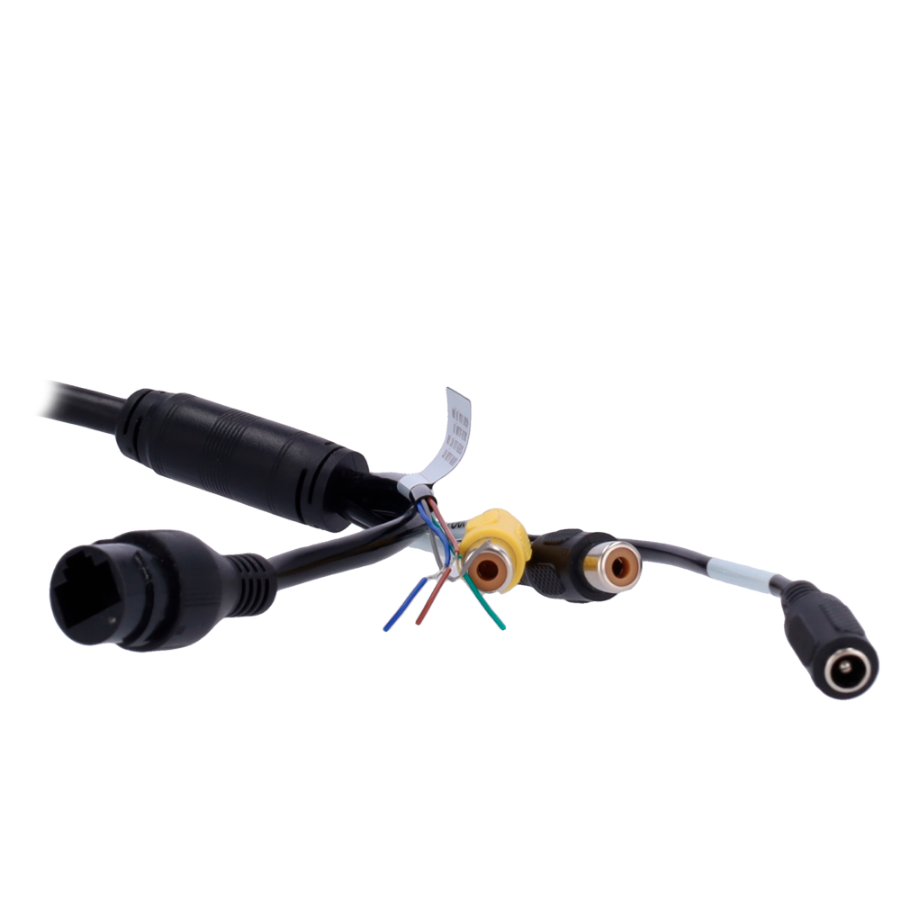

| Audio | Built-in microphone1 input channel (RCA port)1 output channel (RCA port) |
| Remote access | NVR, Web Browser, App Smartphone and PC Software Safire Control Center |
| Alarms | 1 input channel: 5 mA 3–5V DC1 output channel: 1,000 mA 30V DC/500mA 50V DC |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); .CGI; P2P |
| Power | DC 12V / 3.9W, PoE IEEE802.3af |
| Degree of protection | IP67, IK10 |
| Material | Metallic |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 94 mm (H) × ?122,0 mm |
| Weight | 500 g |
