| Brand | X-Security |
| Image sensor | 1/2.9” CMOS image sensor |
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| IR range | 50 m |
| Range performance | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Main Stream rate | 2688 × 1520 @ (1–25/30) fps |
| Extra Stream rate | 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0,005 lux@F1,4 (color, 30 IRE) 0,0005 lux@F1,4 (black and white, 30 IRE) 0 lux (illuminator on) |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Lens Adjustment | 3 Axis |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| AI SSA | Yes |
| Weight | 500 g |

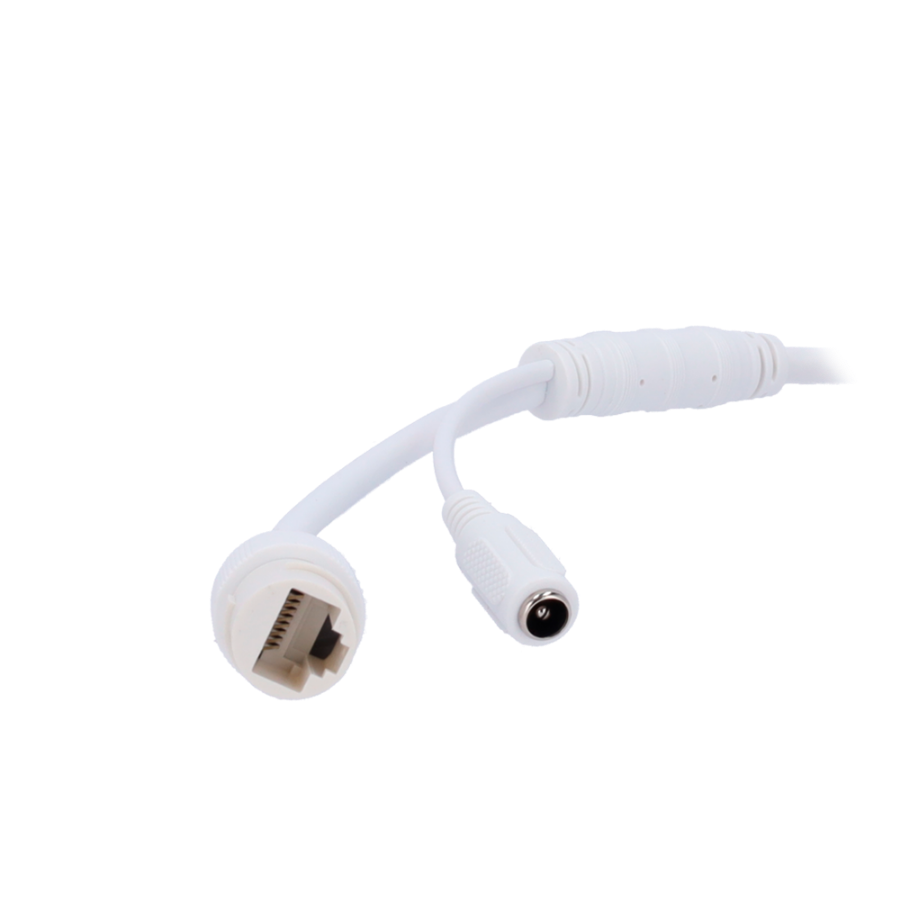

| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |

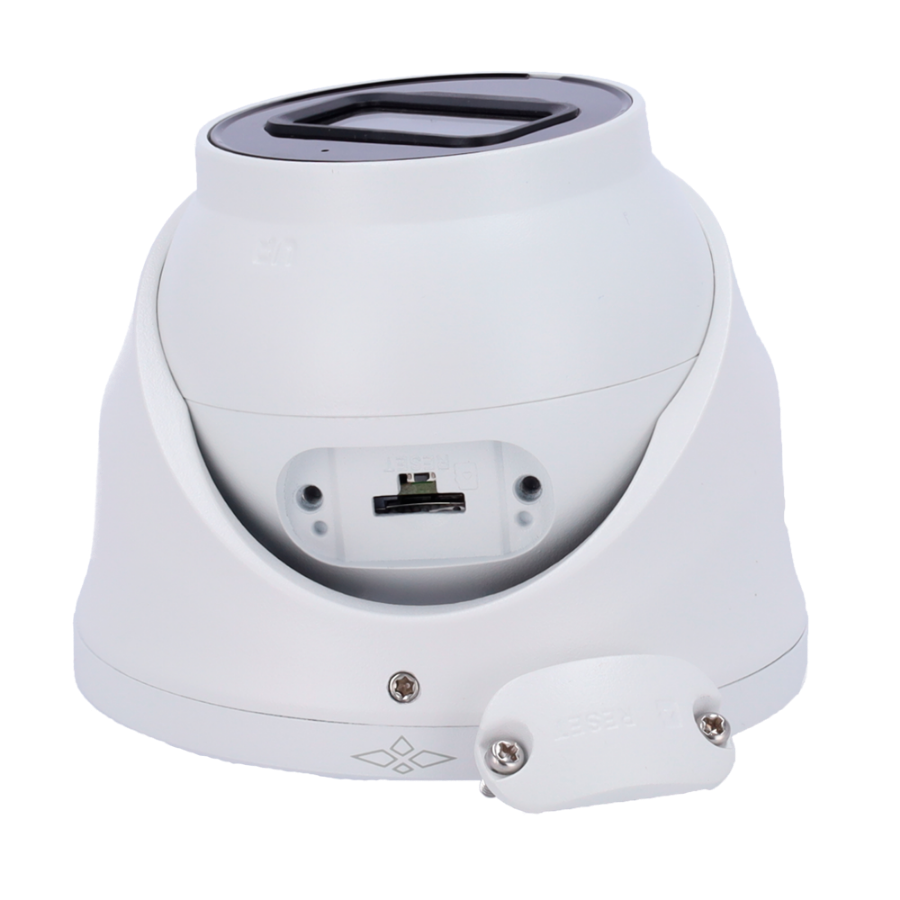

| External storage | 256 GB microSD card slot |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power | DC 12 V / 4.2 W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 93.6 mm (D) x 106 (O) mm |
