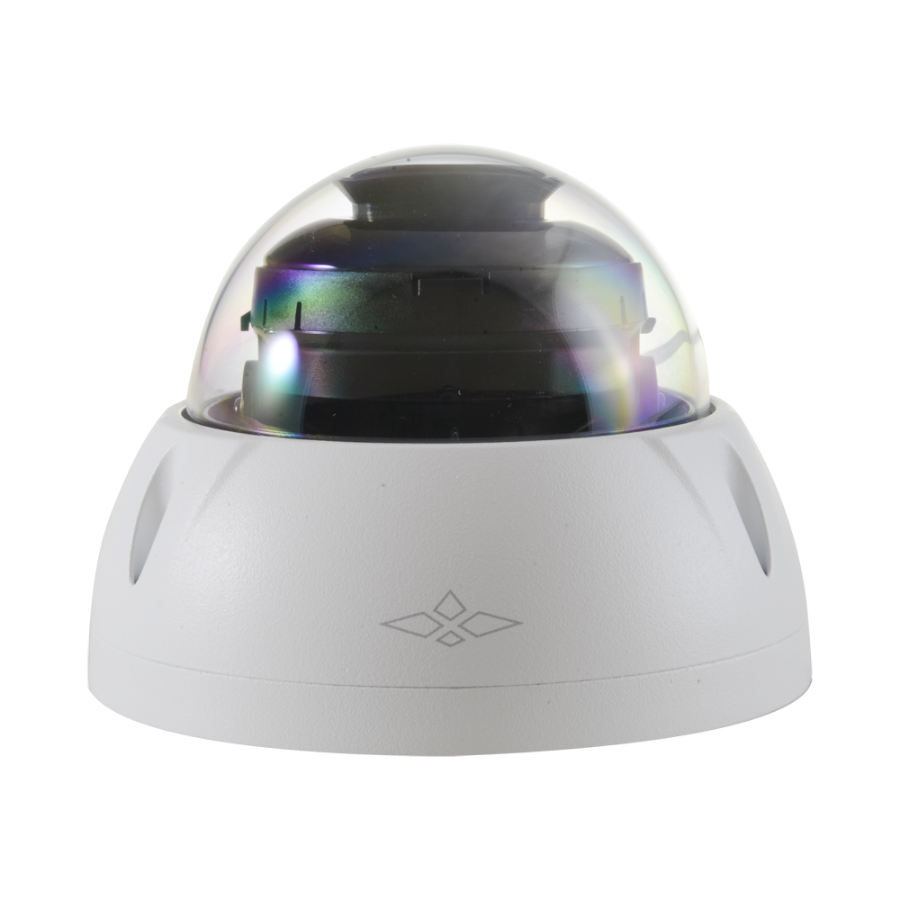

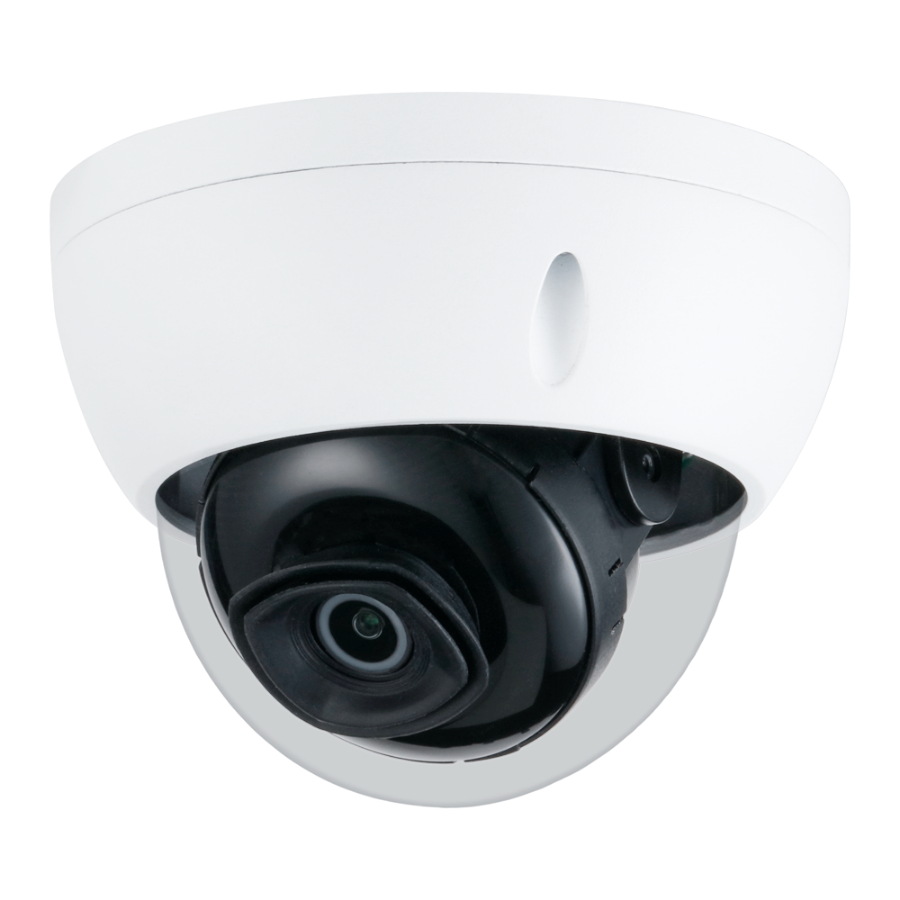

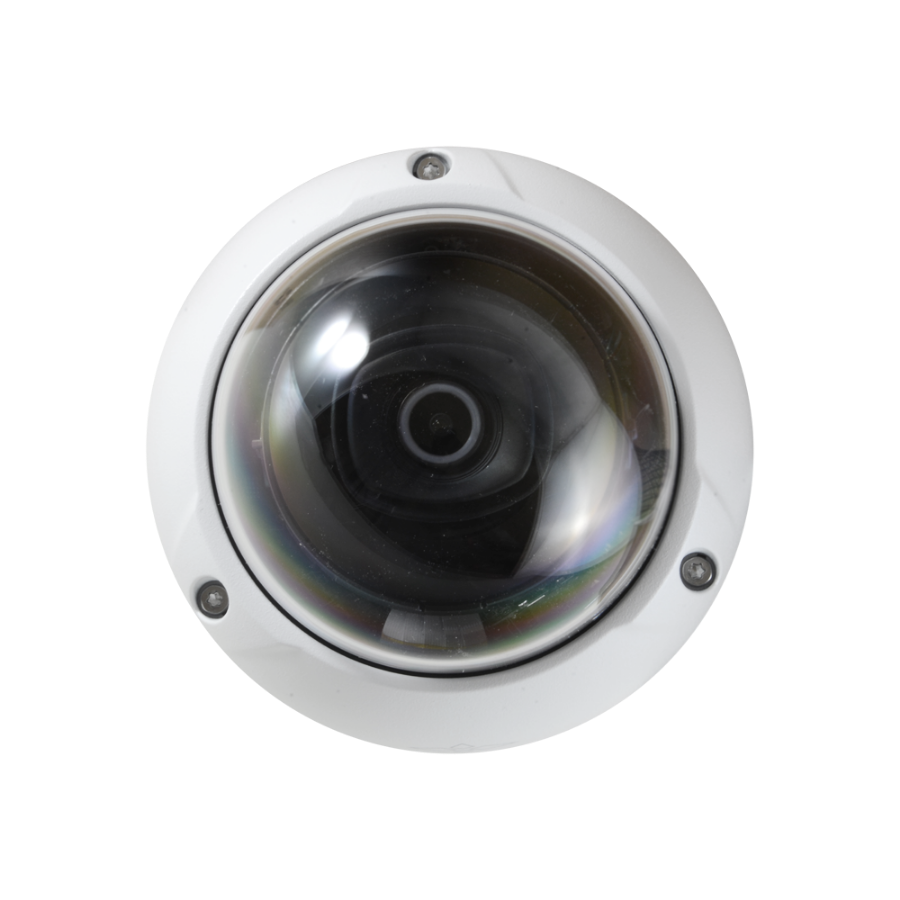

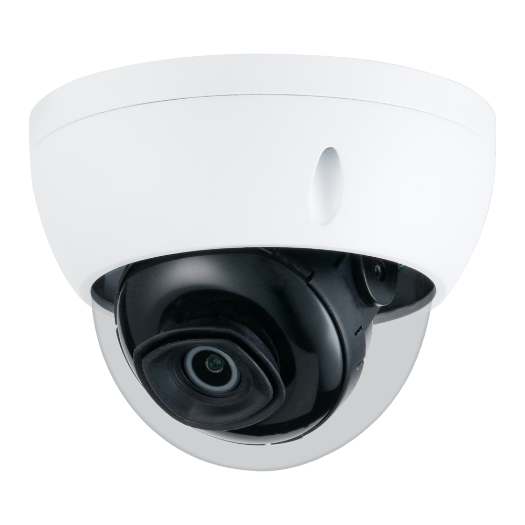

| Brand | X-Security |
| Maximum resolution | 4 Megapixel (2688 × 1520) |
| Image sensor | 1/2.9” Progressive CMOS |
| Lens | 2.7 mm–13.5 mm (H: 104°–29°; V: 54°-16°; D: 125°–34° |
| IR range | 40 m |
| Main Stream rate | 2688 × 1520@(1–20 fps )/2560 × 1440@(1-25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Smart H.265+Smart H.264+ |
| Range performance | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum illumination | 0.008 lux@F1.5 (Color, 30 IRE)0.0008 lux@F1.5 (B/W, 30 IRE)0 lux (Illuminator on) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |
| Network interface | Ethernet 10/100 BaseT |
| Audio | Built-in microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
| Power | DC 12 V / 3,2W, PoE IEEE802.3af |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP67, Vandal-proof IK10 |
| Dimensions | 93.4 mm (D) x 122 (O) mm |
| Weight | 490 g |
