| Brand | X-Security |
| Maximum resolution | 6 Megapixel (3288x1850) |
| Image sensor | 1/2.7” Progressive CMOS |
| Lens | 2.7~13.5 mm Varifocal Motorised Lens |
| Viewing angle | H: 114°~32°; V: 58°~17°; D: 138°~36° |
| Range performance | 64~210 m (D), 25.6~84 m (O), 12.8~42 m (R), 6.4~21 m (I) |
| Main Stream rate | 3288x1850@(1~20 fps) / 2688×1520@(1~25/30 fps) |
| Extra Stream rate | 704x576@(1~25 fps) / 704x480@(1~30 fps) |
| Video bitrate | H.264: 32 kbps~8192 kbps;H.265: 12 kbps~8192 kbps |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum illumination | 0.007 lux@F1.5 (Colour, 30 IRE)0.0007 lux@F1.0 (B/W, 30 IRE)0 lux (with illuminator on) |
| Dual Light | Detection modes:Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target)IR modeWhite LED mode |
| IR range | 60 m (IR)60 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart Dual Light, Privacy masking, Mirror Effect |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Network interface | Ethernet 10/100M BaseT |

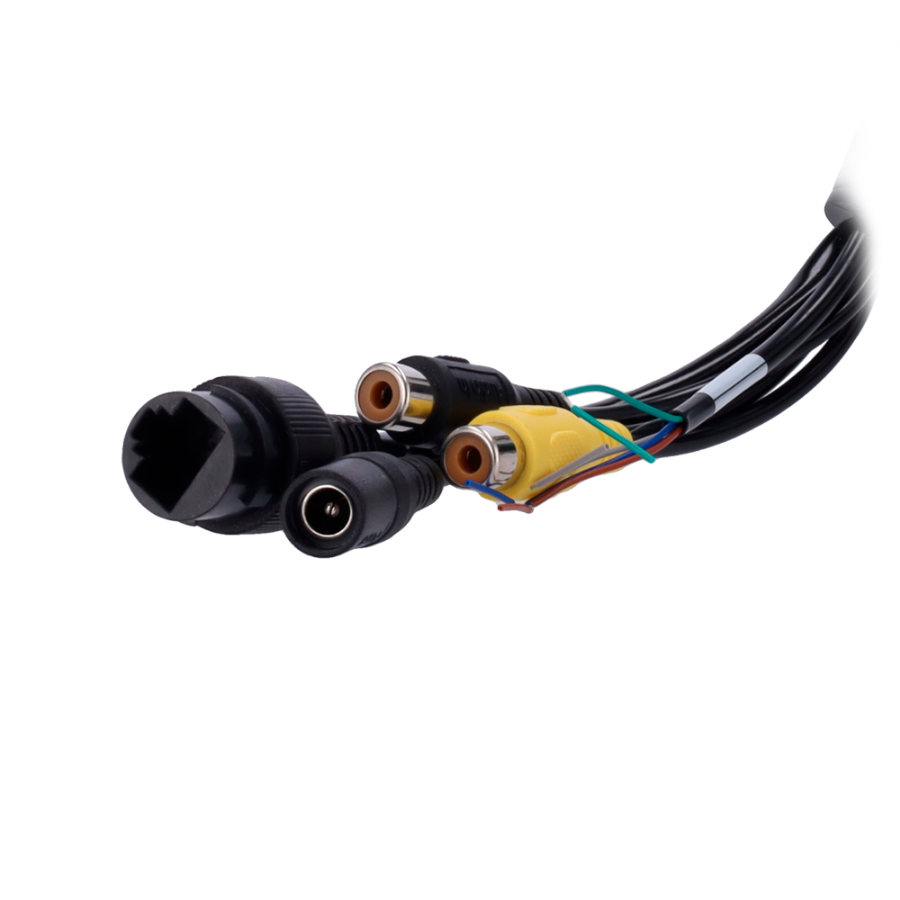

| Audio | 1 input / 1 outputBuilt-in microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM; |
| Alarms | 1 input / 1 output |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S, G, T), CGI |
| Power | DC 12 V / 10.2 W max.PoE IEEE802.3af / 12.7 W max. |
| Temp. operation | -30o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 238.5 (D) x 90.7 (W) x 90.7(Al) mm |

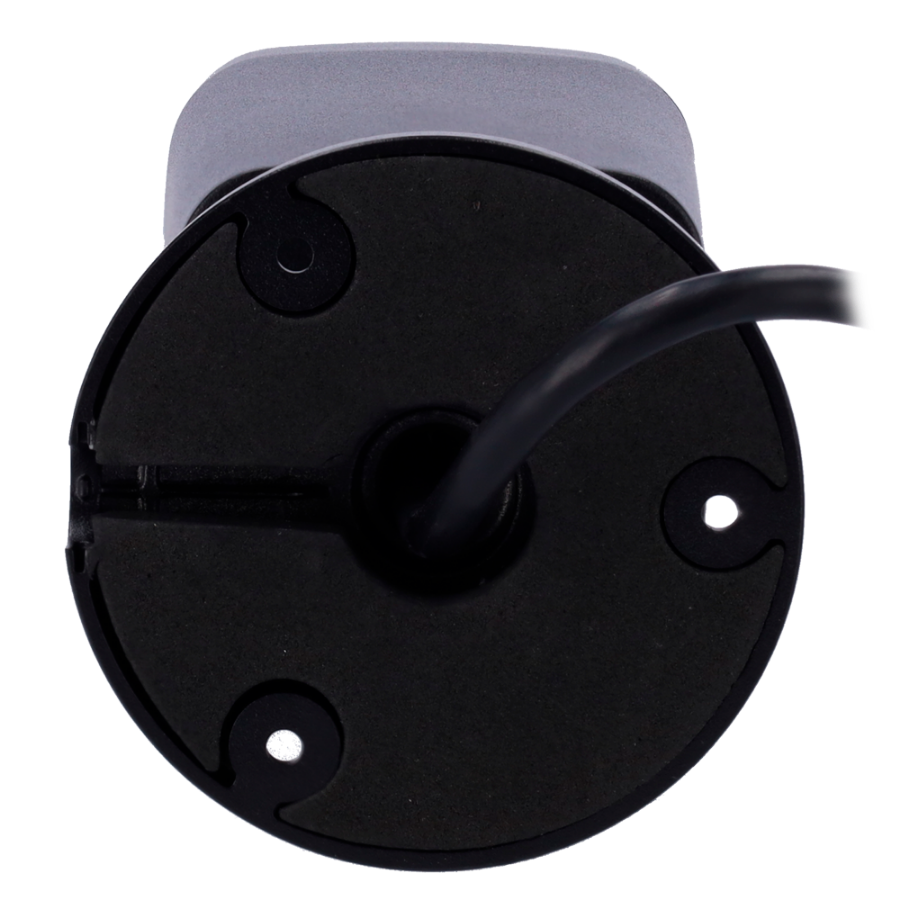

| Base dimensions | O base 90.7 mm / O between bolts 70 mm / 3 bolts |
| Weight | 760 g |
| Color | Black |
