| Brand | X-Security |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Image sensor | 1/2.9” Progressive CMOS |
| Lens | Motorized 2.7~13.5mm (H: 97°-28°; V: 52°-16°; D: 117°-32°) |
| Main Stream rate | 2688x1520@(1–20 fps) / 2560×1440@(1-25/30 fps) |
| Extra Stream rate | 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Range performance | 64-210 (D), 25.6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Minimum illumination | 0.006 lux@F1.0 (Color, 30 IRE)0.0006 lux@F1.0 (B/W, 30 IRE)0 lux (Illuminator on) |

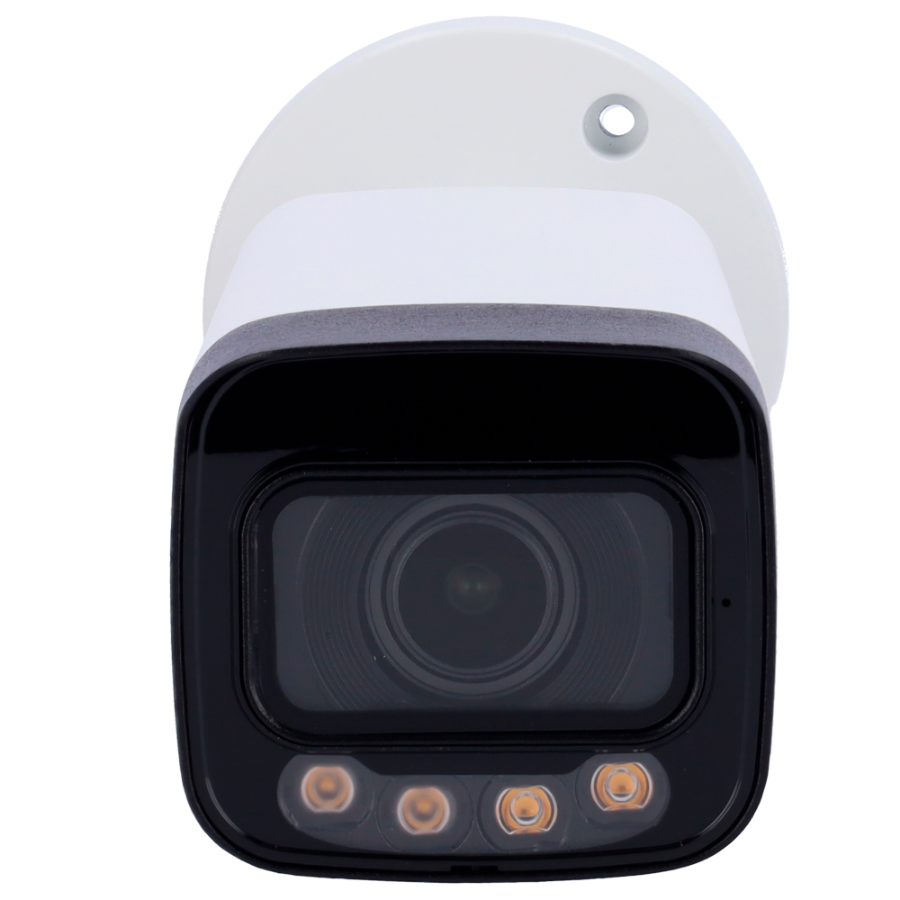

| Dual Light | Detection modes:Intelligent Mode (By default, IR activated and switches to white LED in the presence of a target)IR modeWhite LED mode |
| IR range | 60 m (IR)60 m (White light) |
| Image improvements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| SMD Plus | Yes (Human and vehicle based motion detection) |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Using microSD card or NVR X-Security |
| Network interface | Ethernet 10/100M BaseT |

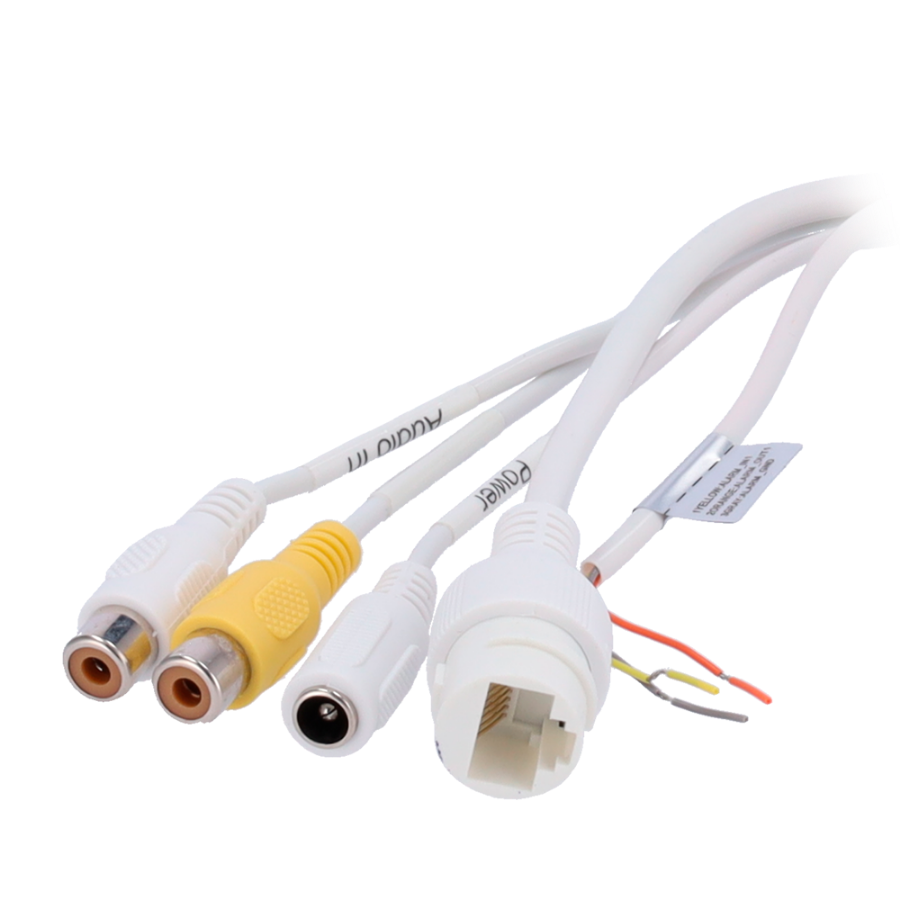

| Audio | Built-in microphone / 1 Input / 1 Output |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarms | 1 input / 1 relay |
| Remote access | WEB, CMS (Smart PSS Lite / DSS / DMSS), Smartphone and NVR interface |
| Material | Metallic |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 3W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 238.5 (D) x 90.7 (W) x 90.7(Al) mm |
| Weight | 760 g |
