| Brand | X-Security |
| Image sensor | 1/2.7” Progressive CMOS |
| Maximum resolution | 8 Megapixel (3840 × 2160) |

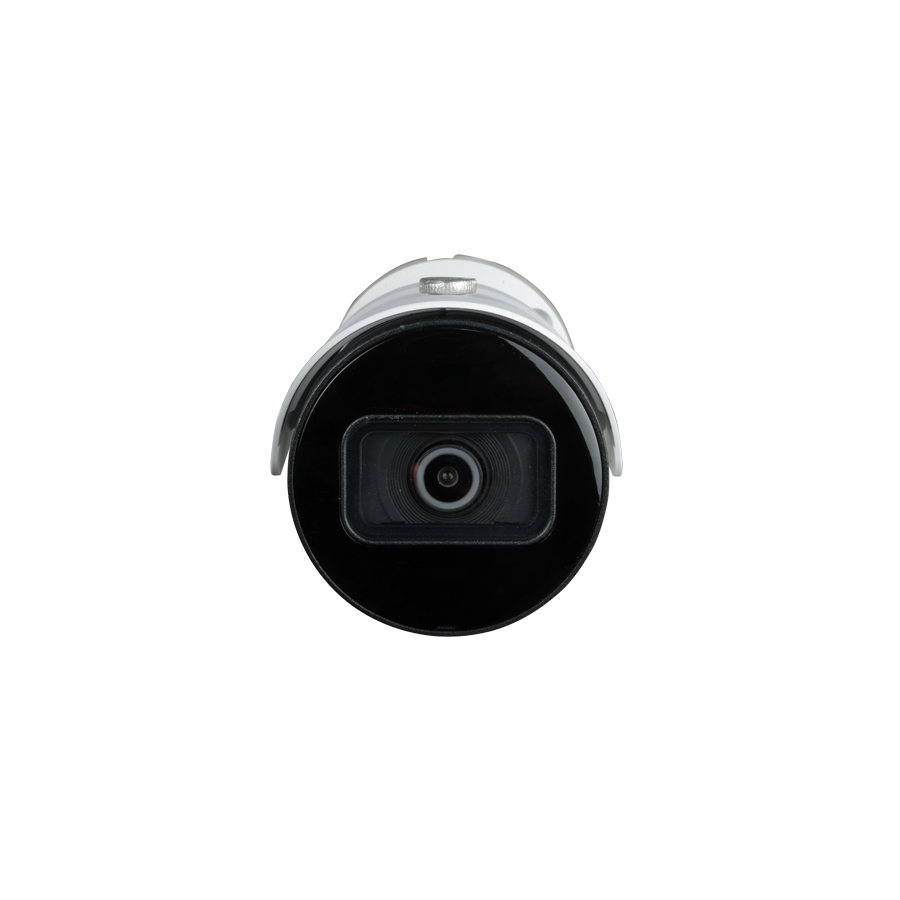

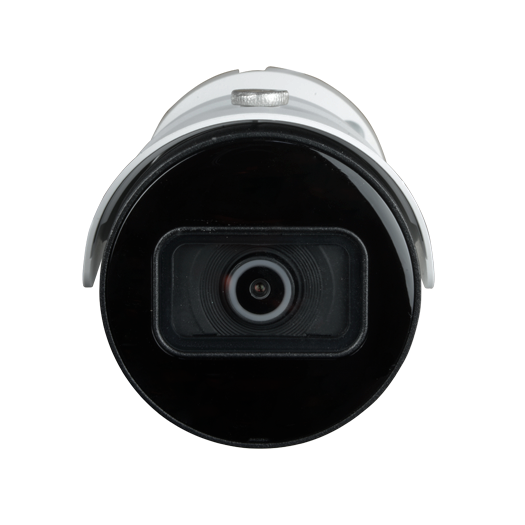

| Lens | 2.8 mm (H: 106°; V: 56°; D: 125°) |
| Main Stream rate | 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) |
| Extra Stream rate | 7704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG (substring compatible only) |
| Intelligent codec | Smart H.265+; Smart H.264+ |
| Infrared lighting | 0.008 lux@F1.6 (Color, 30 IRE)0.0008 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on) |
| Range performance | 88 (D), 35.2 (O), 17.6 (R), 8.8 (I) |
| Image improvements | WDR 120dB, BLC, HLC, AWB, AGC, 3D-DNR, |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Intelligent search | Work together with Smart NVR to refine intelligent search, event extraction and merging with event videos |
| Day / Night | Removable mechanical ICR filter |

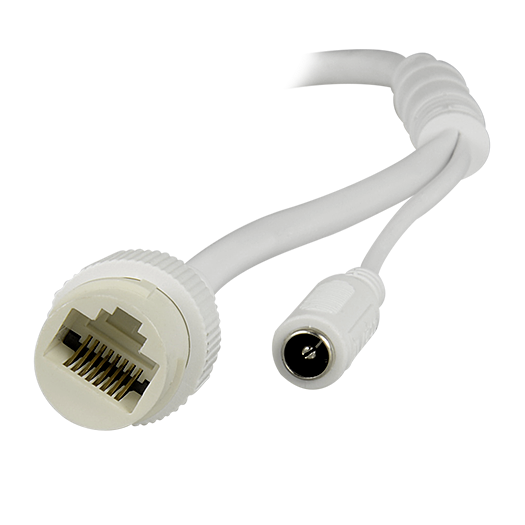

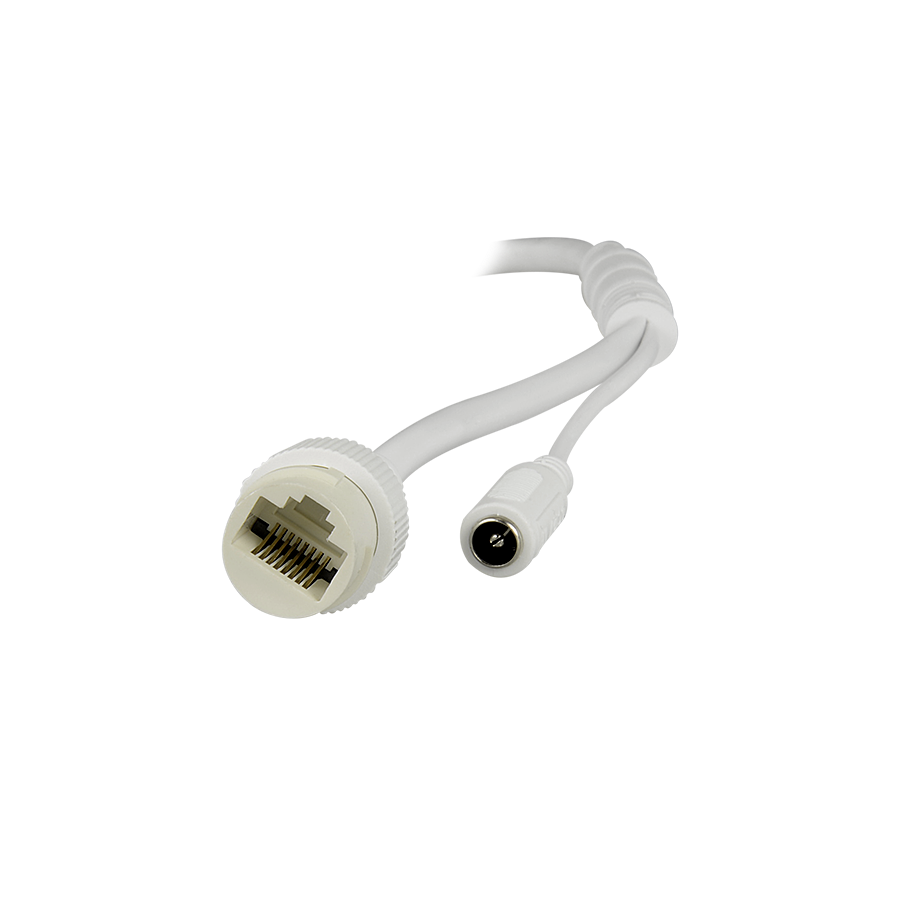

| Network interface | Ethernet 10/100 BaseT |
| Audio | Integrated microphone |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Material | Metallic |
| Power | DC 12 V / 3,4W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Internal memory | Micro SD Max 256GB |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 166,2 mm × 70 mm × 70 mm (L × W × H) |
| Weight | 480 g |
