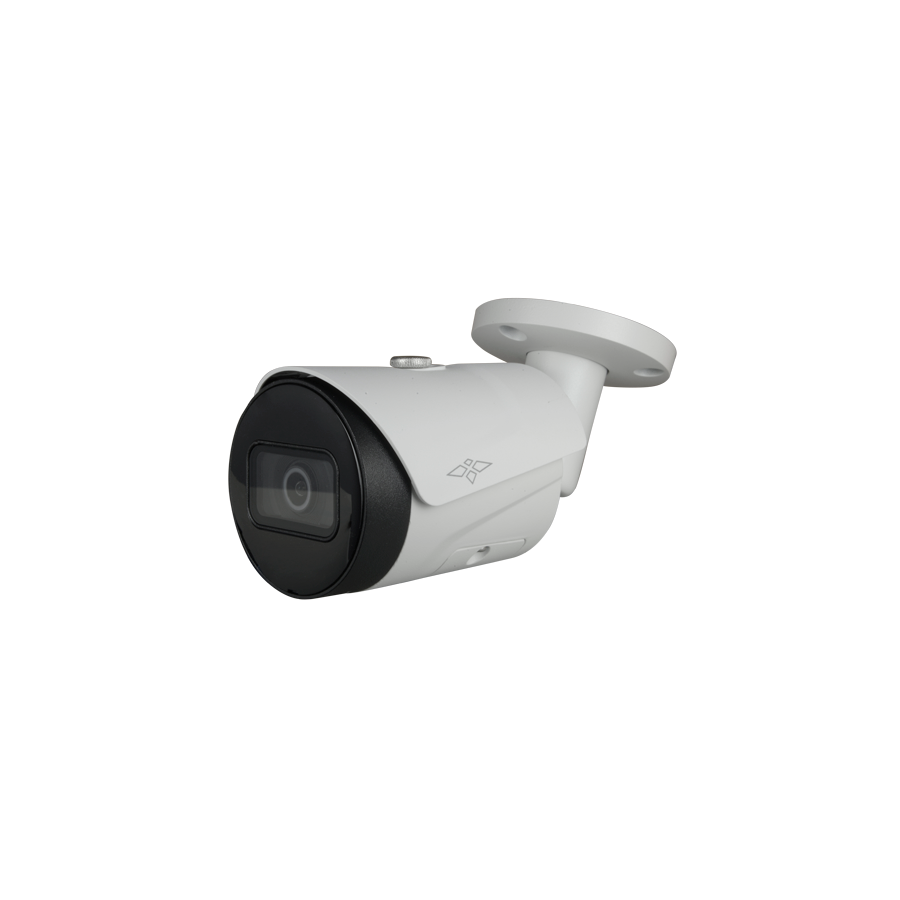

| Brand | X-Security |
| Image sensor | 1/2.9” Progressive CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Lens | 2.8 mm (H: 95°; V: 52°; D: 114o) |
| Main Stream rate | 1920x1080@ (1–25/30 fps) |
| Extra Stream rate | 704×576@ (1–25 fps) / 704×480@ (1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG (only compatible with extra stream) |
| Infrared lighting | 0.002 lux@F1,6 (color, 30 IRE) 0.0002 lux@F1,6 (black and white, 30 IRE), 0 lux (illuminator on) |
| Range performance | 43.9 (D), 17.5 (O), 8.8 (R), 4.4 (I) |
| Image improvements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-DNR |
| IVS (Perimeter protection) | Intrusion, tripwire (both functions support the accurate classification and detection of vehicles and persons) |
| Day / Night | Removable mechanical ICR filter |

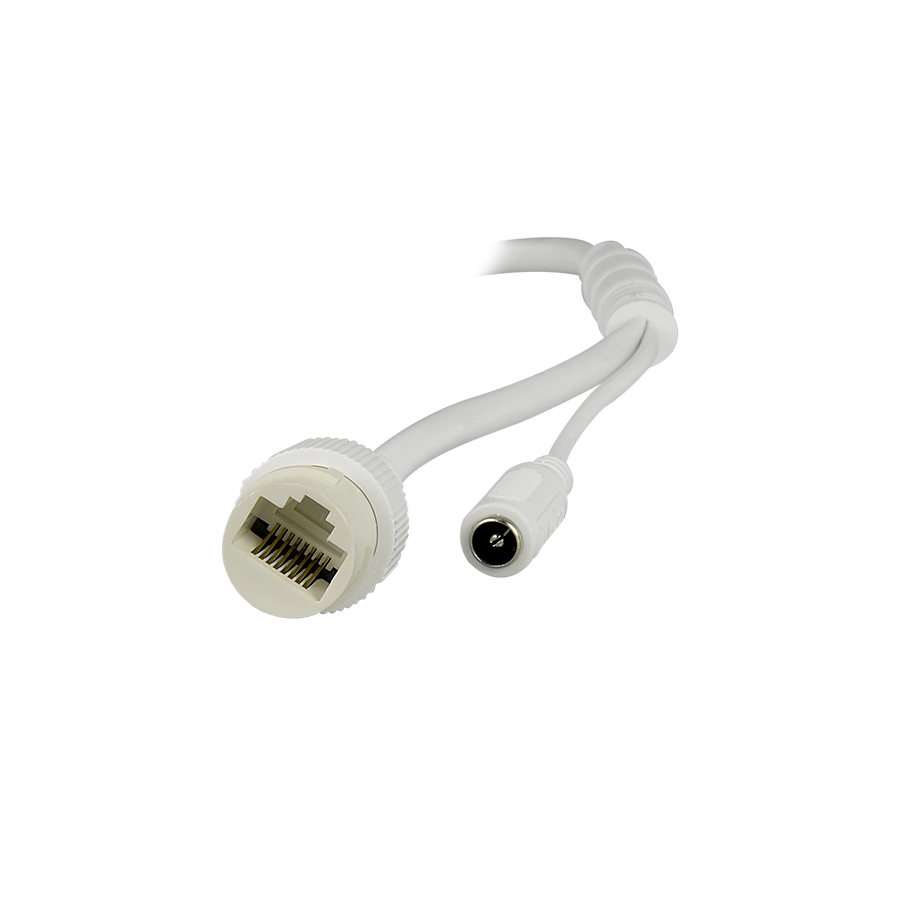

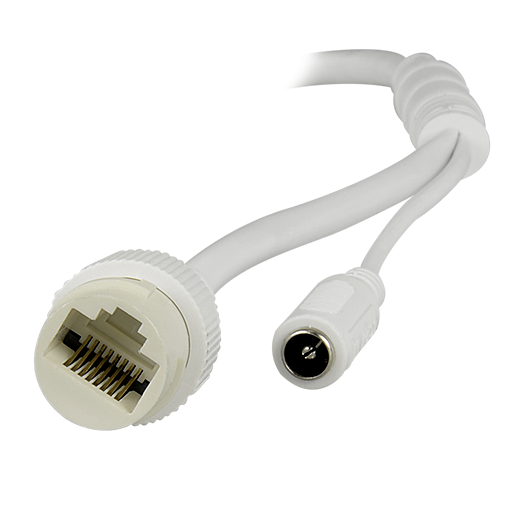

| Network interface | Ethernet 10/100 BaseT |
| Audio | Integrated microphone |
| Internal memory | Micro SD Max 256 GB |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V / 3.3W, PoE IEEE802.3af |
| Temp. operation | -40o C ~ +60o C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 166.2 mm × 70 mm × 70 mm (L × W × H) |
| Weight | 480 g |
