| Brand | X-Security |
| Range | ECO |
| Image sensor | 1/2.7" CMOS |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps)CVI: 1080p (25~30 fps)AHD: 1080p (25~30 fps)CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 102o, V: 60o, D: 129o |
| Range performance | 41.1 m (D), 16.5 m (O), 8.3 m (R), 4.1 m (I) |
| Lens Adjustment | 3-axis |
| Minimum illumination | 0.01 Lux @(F2.0, AGC ON)0 lux with dual light |
| Supplementary lighting | Dual Light (IR + white light) range 40 m |
| Day / Night | Mechanical ICR filter |
| Electronic Shutter | 1/25~1/100000 s |

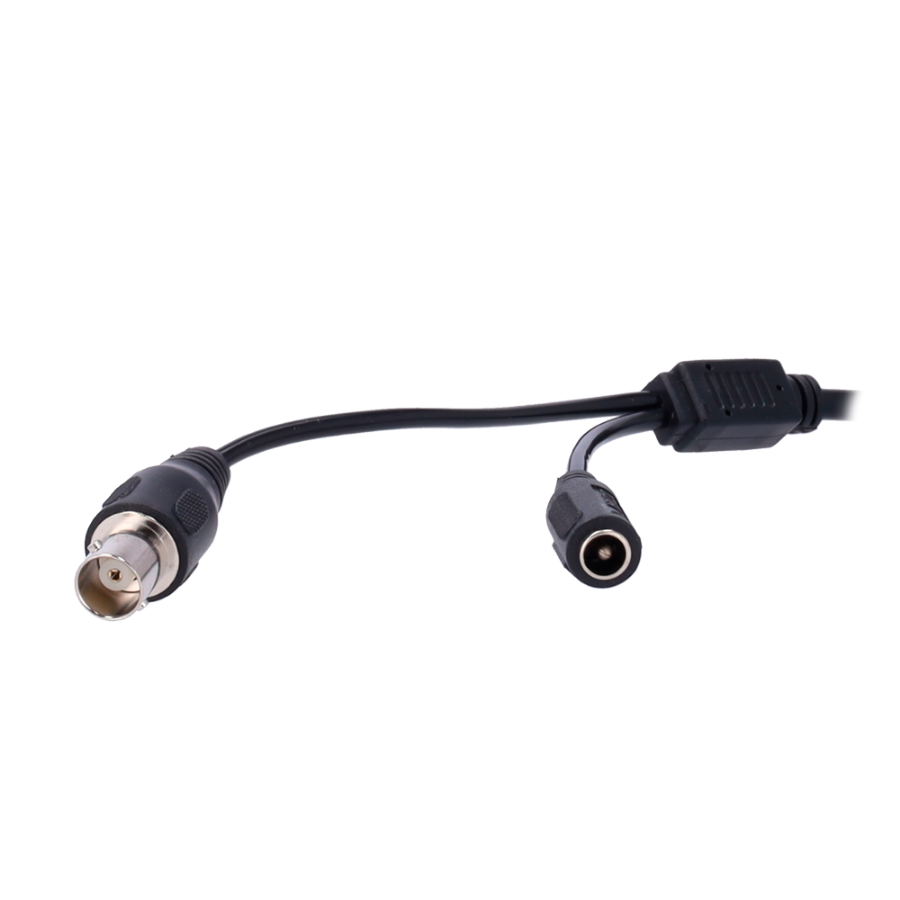

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via OSD |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D-DNR, HLC, BLC, AGC, AWB, Smart Light, Mirror function, Privacy Mask |
| Power | DC 12 V / 4.1 W max |
| Degree of protection | Weatherproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 198.9 (D) x 80.2 (W) x 76.2 (H) mm |

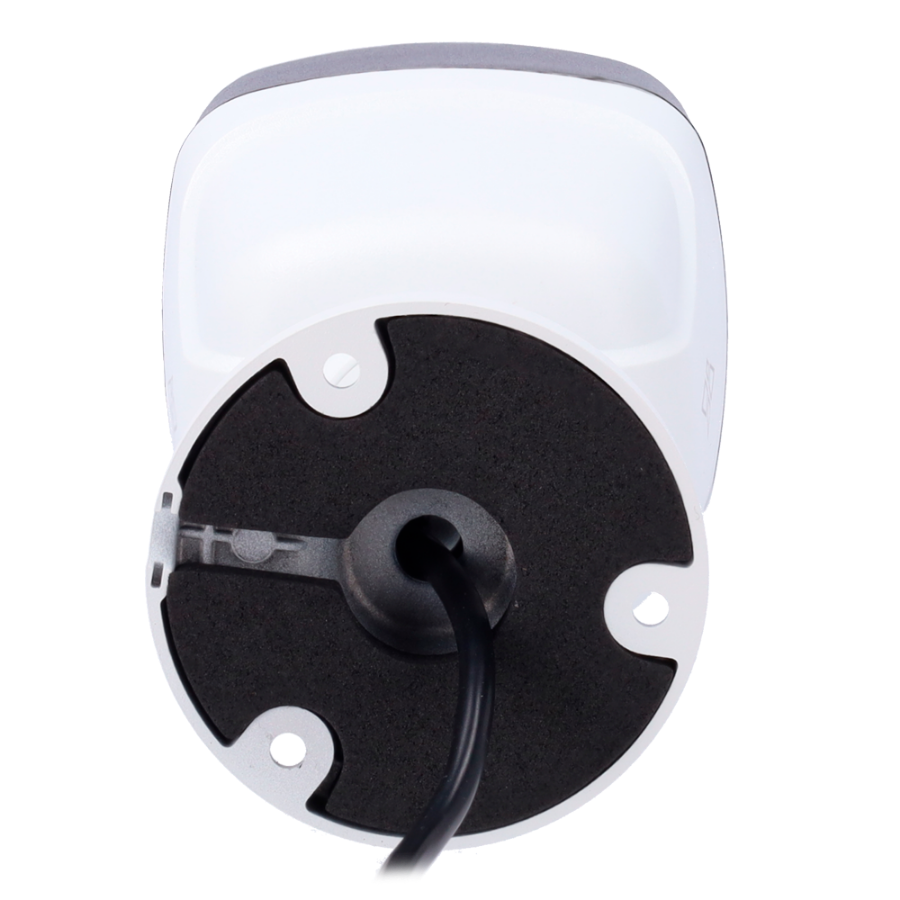

| Base diameter | O base 70.1 mm / O between bolts 56 mm / 3 bolts |
| Weight | 290 g |
