| Brand | Anviz |

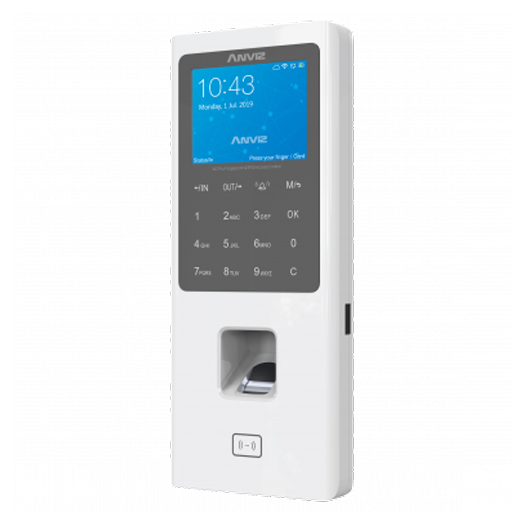

| Model | W2-PRO |
| Capacity | Up to 3.000 fingerprints and 3.000 cards/passwords |
| Records | 100.000 registers |
| Screen | 2.8" Color TFT LCD |
| Identification modes | Fingerprint, card, PIN and/or combinations |
| Proximity card | RFID EM (125 kHz) |
| PC communication | TCP/IP, WiFi, USB, RS485 and Wiegand |
| Inputs | 1 x door sensor, 1 x pushbutton, 1 x Wiegand IN |
| Outputs | 1 x relay NO/NC, 1 x Wiegand OUT |
| Special functions | Doorbell and anti-passback |
| Software | CrossChex Standard: free local PC software for access and presence controlCrossChex Cloud: free cloud for time and attendance control |
| Power | DC 12 V / 1 A max. |
| Degree of protection | Valid for interior |
| Temp. operating | -30 oC ~ +60 oC |
| Dimensions | 84 (W) x 205 (H) x 31 (D) mm |
| Weight | 200 g |
A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay. Hybrid terminals combine access control and time and attendance control, being able to perform time and attendance control of workers at the moment they identify themselves.

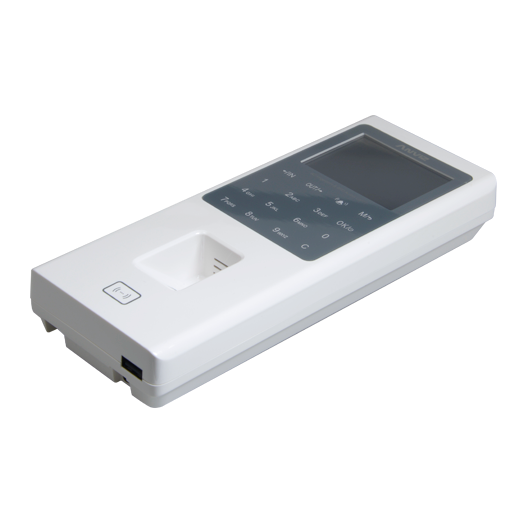

This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, as well as keypad for numeric codes and fingerprint biometrics.

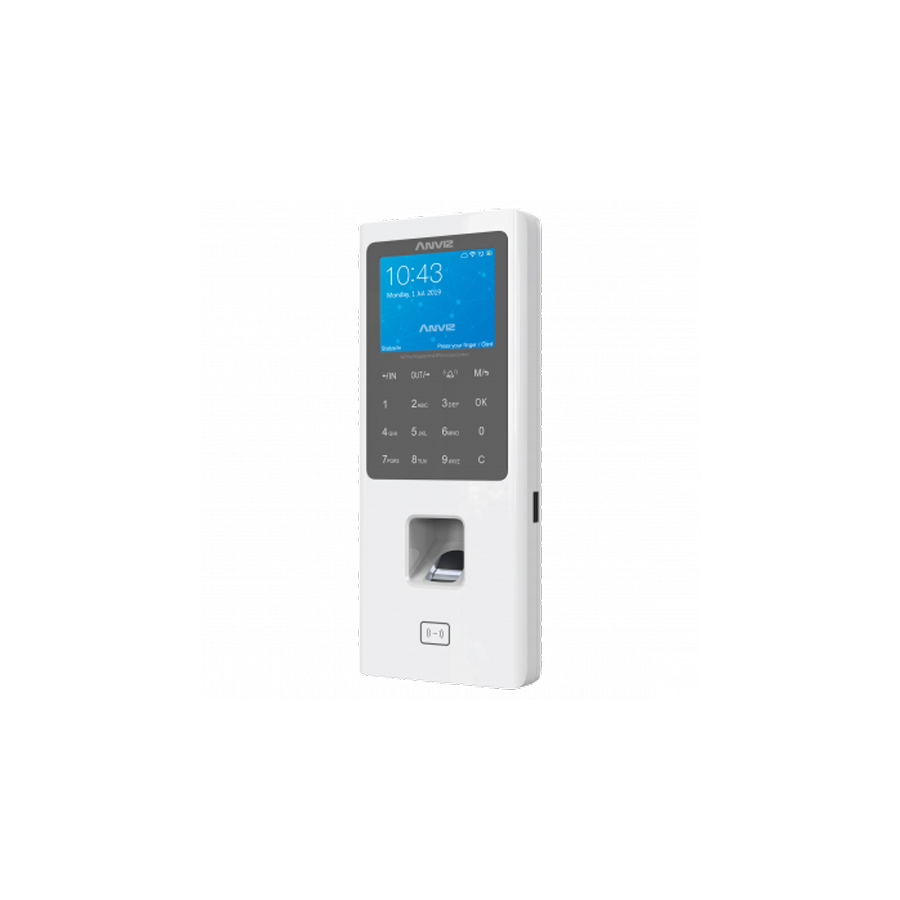

Its 2.8" screen facilitates the operation and configuration of the equipment locally, both to use it autonomously without software, and to set some parameters required to connect to the software, such as network configuration.
The CrossChex Standard software is used to configure users, schedules and access groups, as well as special functions, relay opening times or reader reading times.
