| Operating system | Embedded Linux |
| Languages | English, Chinese, Russian |
| Video compression | H264 / H265 |
| OSD | Camera title, date and time, Vehicle ID |
| Video channels | 4 AHD video inputs 1080P |
| Video output | 1 composite video RCA output1 VGA video output |
| Live view | 1 full screen channel, split screen 2/4 and full screen per event |
| Resolution | 4 channels at 1080P 25 frames |
| Recording modes | - Automatic- For vehicle start-up- Manual- By alarm |
| Audio input | 4 channels through M12 |
| Audio output | 1 RCA output |
| Audio Compression | G.711A 8KB/s |
| Alarm inputs | 4 physical inputs through I/O cable |
| Alarm output | 2 physical outputs through I/O cable |
| Communication Interface | 1 channel RS232, 1 channel RS485 |
| Storage | 1 SD card up to 512GB |
| USB | Interface for recording backups |
| Reproduction | Up to 4 simultaneous channels, supports forward x2, x4, x8, x16 |
| Input voltage | DC:+12V ~ +36V |
| Output voltage I/O cable | 12V 2,5A, 5V 2A |
| Consumption | 5W |
| Working temperature | -20? to +70? |
| Relative Humidity | 20% to 80% |
| Security | Password protected access |
| Dimensions | 15 x 14,7 x 4cm |
| Weight | 0.7kg |

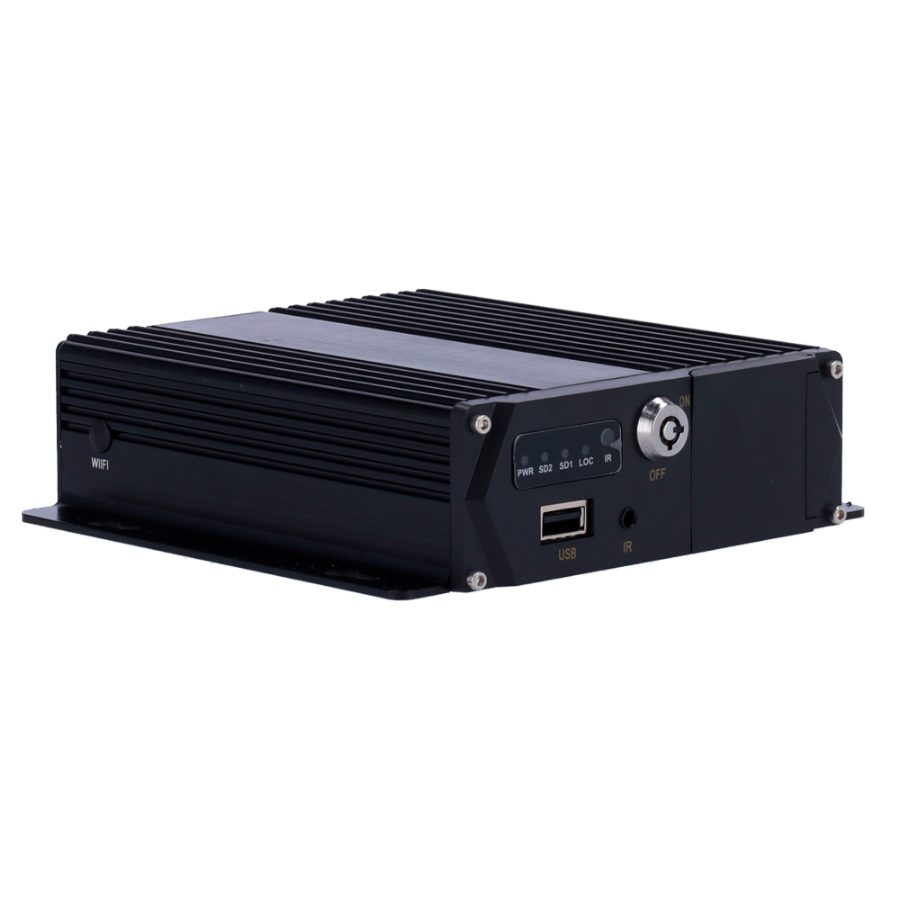

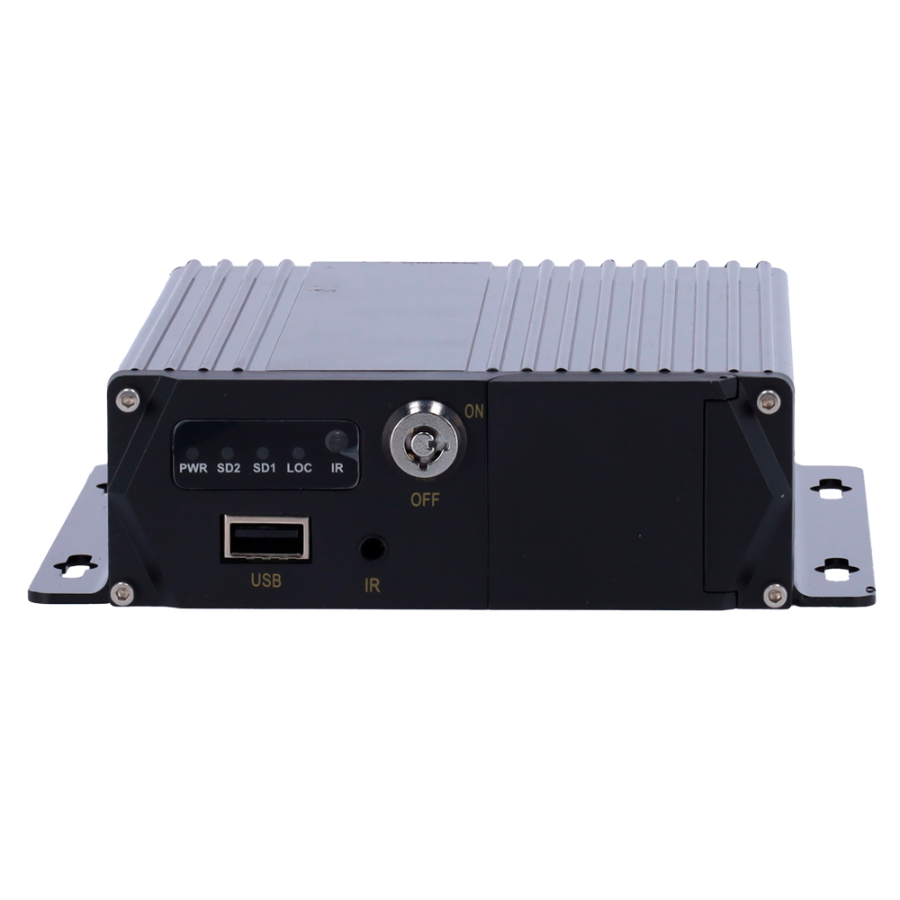

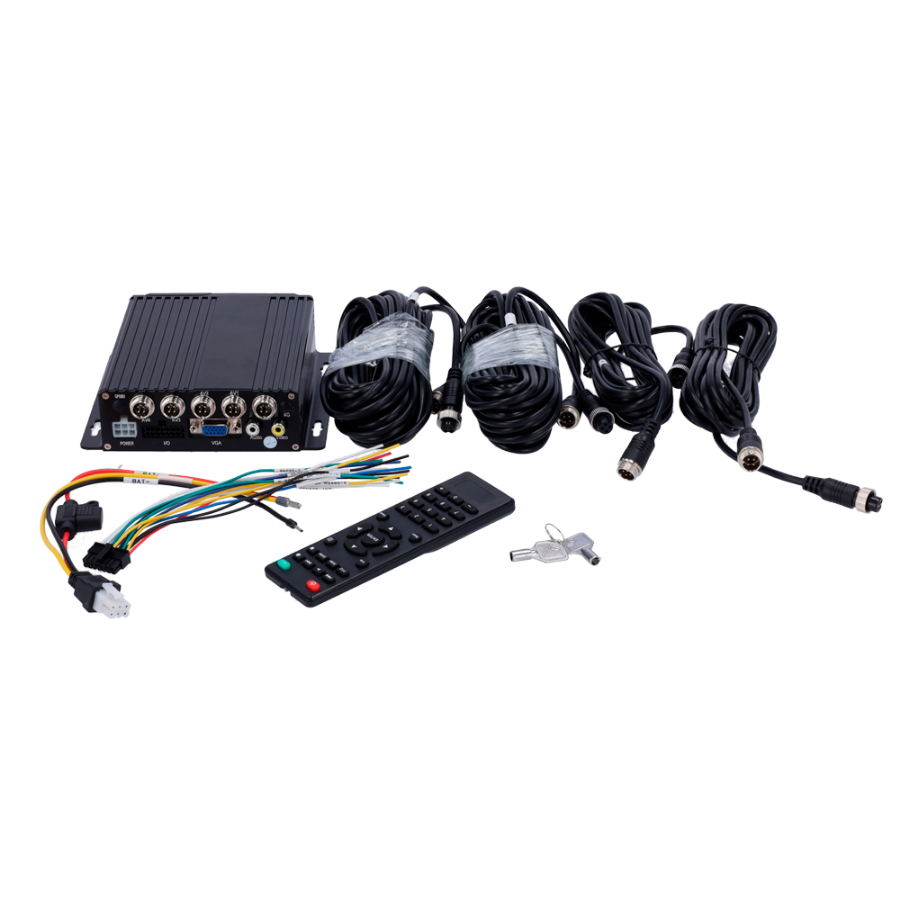

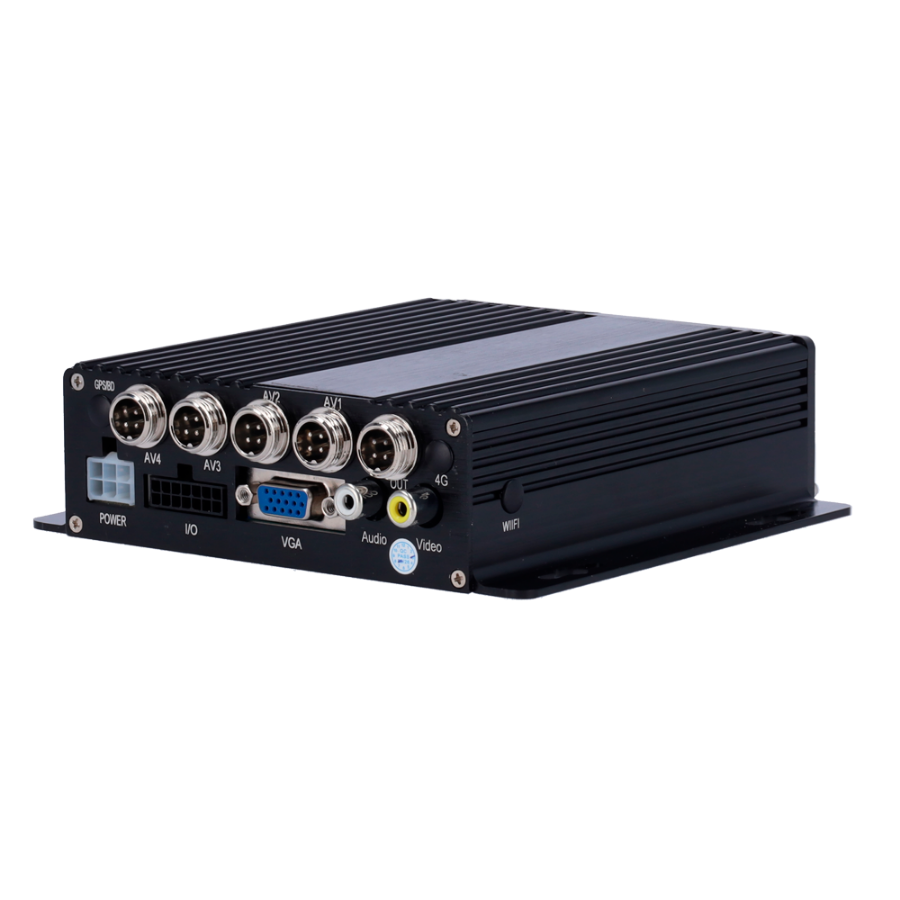

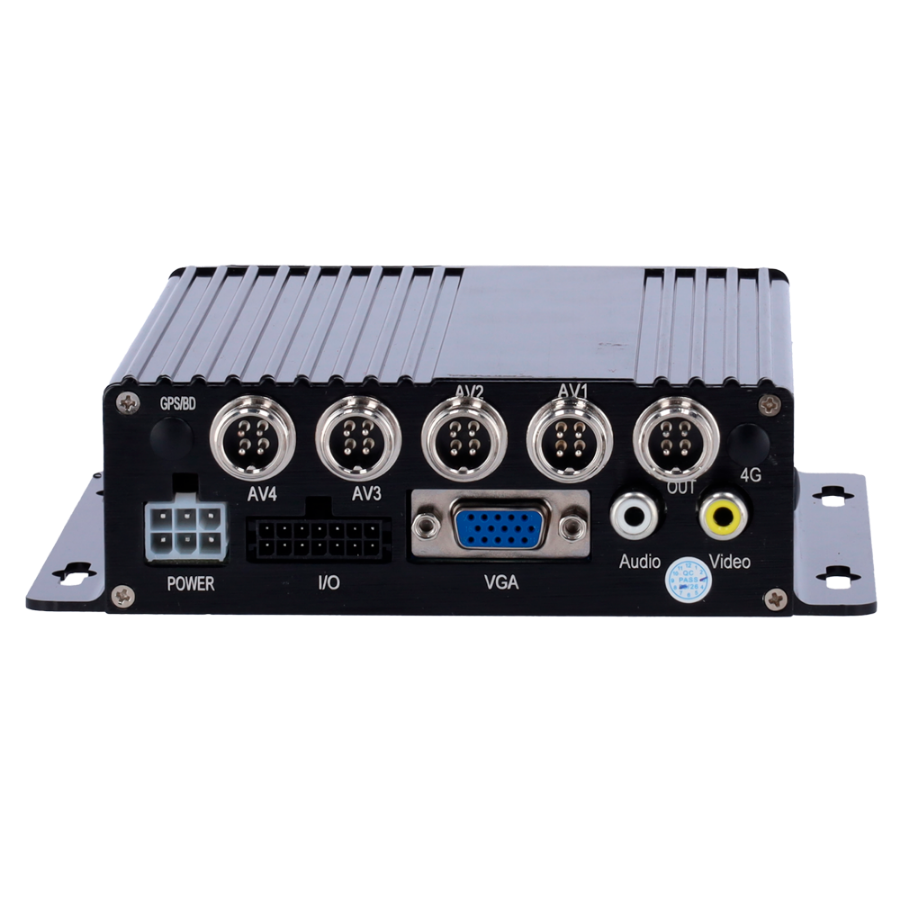

Basic 4 AHD channel recorder 1080P with aviation connectors M12 4 pins for real-time display via monitor, video playback and recording download via USB.
