| Brand | VCA Technology |
| Range | IPAi |

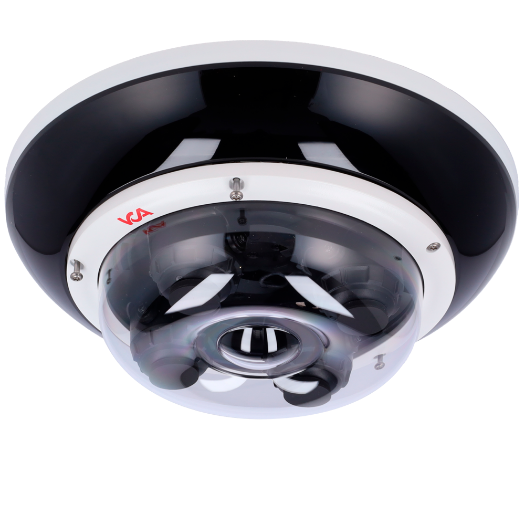

| Model | VCA-IPAi97A20-MR |
| Image sensor | 4 x Sony Starvis EXMOR 1/2.8” 5M CMOS |
| Maximum resolution | 2592(H) x 1944(V) per chamber |
| Minimum illumination | Colour: 0.1 Lux B/W : 0 Lux (IR LED On) |
| WDR | Real WDR 120 dB |
| Lens | 2.8 ~ 8mm. |
| Viewing angle | Horizontal: 93° (wide) to 51° (tele) |
| Aperture | F1.6 |
| Shutter | Auto / Manual: 1/30 ~ 1/32000, Anti-Flicker, Slow Shutter (1/2,1/3,1/5,1/6,1/7.5,1/10) |
| IR LED | High Power IR LED x 1630m. range |
| Video compression | H.264, H.265, MJPEG |
| Privacy Mask | Up to 16 zones |
| Integrated video analytics | intrusion, detection zones and lines, sabotage detection, appearance, disappearance, permanence, entry, exit, etc |
| Optional video analytics (deep learning) | person tracking, object tracking (person, car, motorcycle), meta data objects |
| Ethernet | 10/100BASE-T |
| ONVIF | ONVIF profile S/T/M |
| Security | HTTPS (SSL), IP filtering, 802.1x, Digest Authentication |
| Protocols | TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB 2), UPNP, RTCP, SSH, ONVIF |
| Storage | 4 x microSD/microSDHC/microSDXC card slot (not included) |
| Audio Compression | G.711 u-law 8KHz, AAC LC 48Kbps at 8KHz |
| Audio input | Supply voltage: 3VDC (3mA), input impedance: 3K Ohm |
| Audio output | Line output, maximum output level: 1Vrms |
| I/O terminals | 1 x alarm input, 1 x relay output |
| Construction material | Aluminum (die-cast) and polycarbonate, black and white |
| Housing | Surround View |
| Consumption | DC12V max. 37.2WPoE max. 41.8W |
| Power | DC12V, Ultra PoE (IEEE 802.3bt Class5) |
| Operating conditions | Humidity 10% ~ 90% RH (non-condensing)-30°C ~ 50°C |
| Standards | FCC, CE, IP67, IK10 |
| Certifications | NDAA compliant |
| Dimensions | O280.5mm x 126.2mm |
| Weight | 3.5 kg |
| Warranty | 2 years |
