| Brand | V-SOL |
| Interface | 1X PON 4x LAN RJ45 10/100/1000Mbps 1x USB3.0 |
| PON | XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 dBm (GPON)Transm |
| WiFi Antennas | Complies with IEEE802.11b/g/n/acWi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 1,167 Gbps, multiple SSIDsTransmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBmReceiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: V |
| Funciones WiFi | 802.11b/g/n/ac integradoAutenticación: WAP-PSK (TKIP)/WAP2-PSK (AES)Múltiples SSIDSSID ocultosWiFi MeshAdmite hasta 64 conexiones de dispositivos |
| Protocolos de Gestión | OAM/OMCI/Telnet/Web/TR069Admite la gestión completa de las funciones de HGU mediante VSOL OLT |
| Funciones de capa 2 ( switching ) | Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q |
| Funciones de capa 3 ( routing ) | IPv4, IPv6 e IPv4/IPv6 dual stackDHCP/PPPOE/EstáticoRuta estática, servidor DHCPNAT/DMZ/DDNS/Servidor virtual |
| Multicast | IGMP v1/v2/v3, espionaje IGMPProxy IGMPEspionaje MLD v1/v2Proxy MLD |
| QoS | Admite 4 colas de QoS ( Voip, IPTV, Internet ..)Compatible con SP, WRR, 802.1P y DSCP |
| Seguridad | Funciones básicas de firewall Filtrado de MAC basado en MAC o URLACLsCompatible con detección de bucles |
| Funciones del sistema | NTP (Protocolo de Tiempo de Red) Reinicio programado del dispositivoHerramientas de diagnósticos de ping y traceroute |
| Color | Blanco |
| Dimensiones | 180mm x 120mm x 32mm |
| Peso | 280g |
| Temp. Funcionamiento | 0o C ~ +55o C |
| Alimentación | DC 12V 1A (adaptador incluido) |

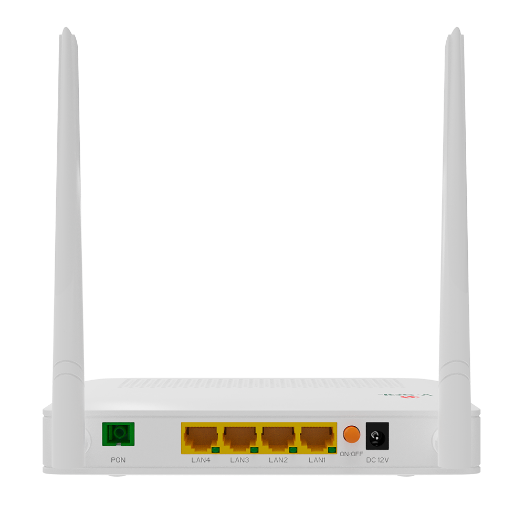

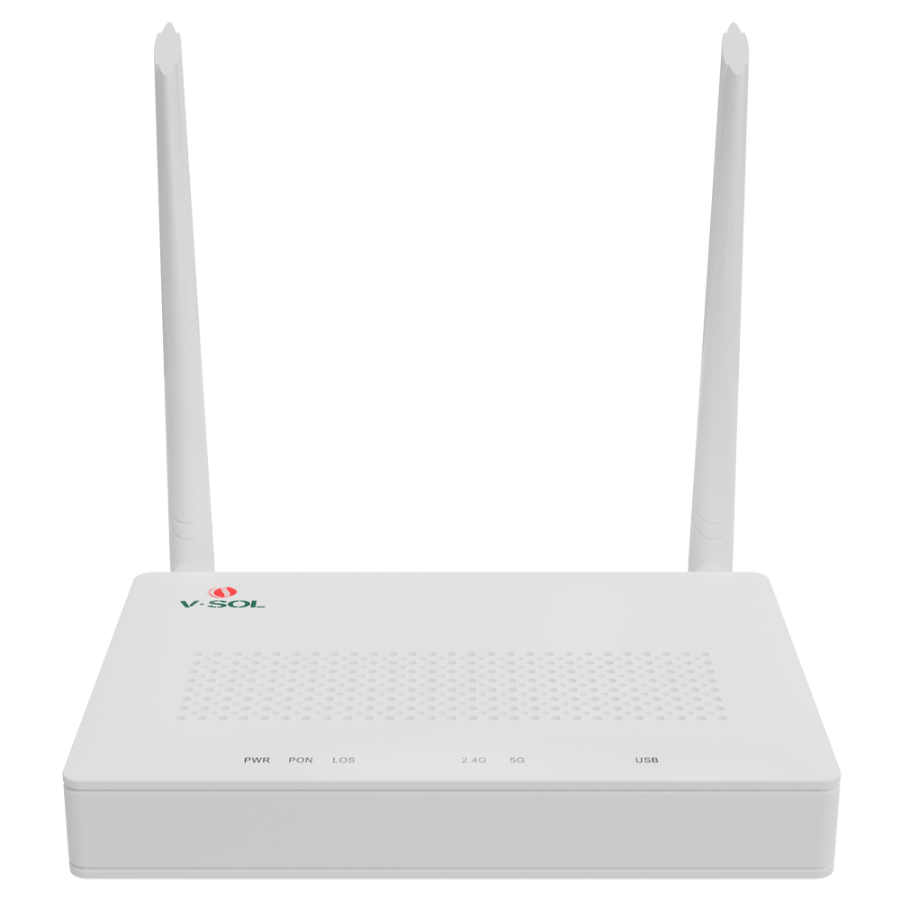

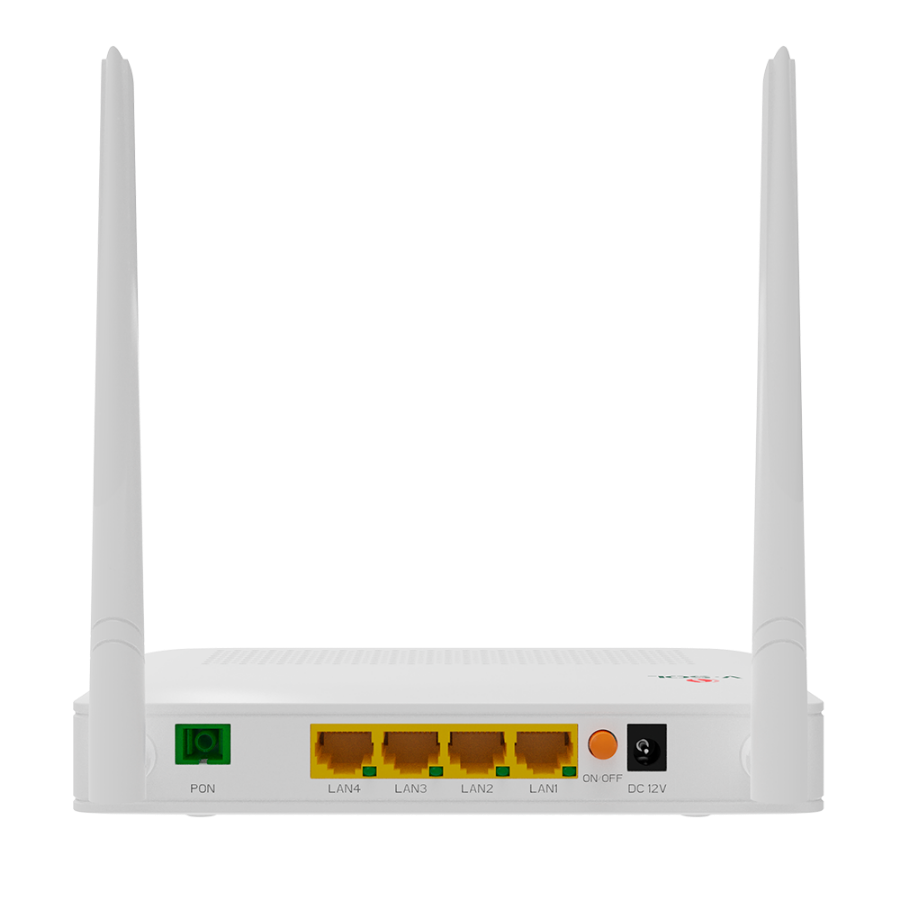

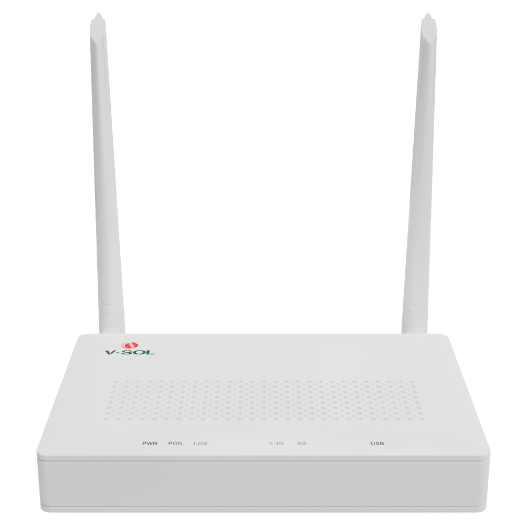

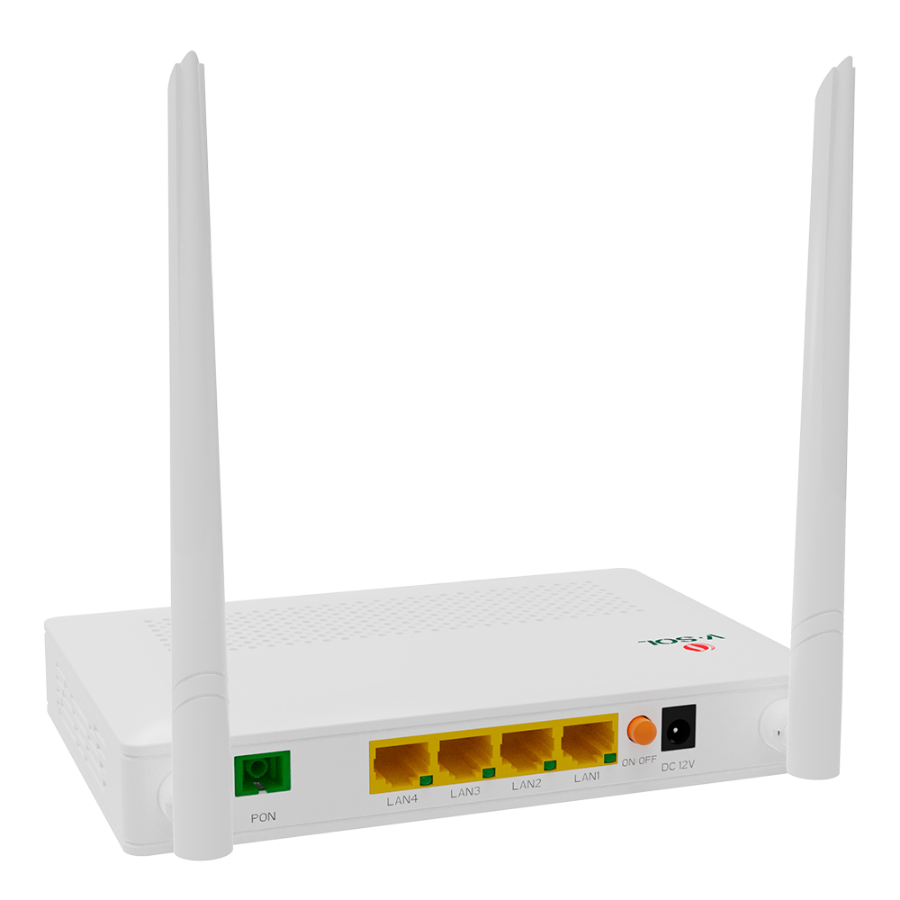

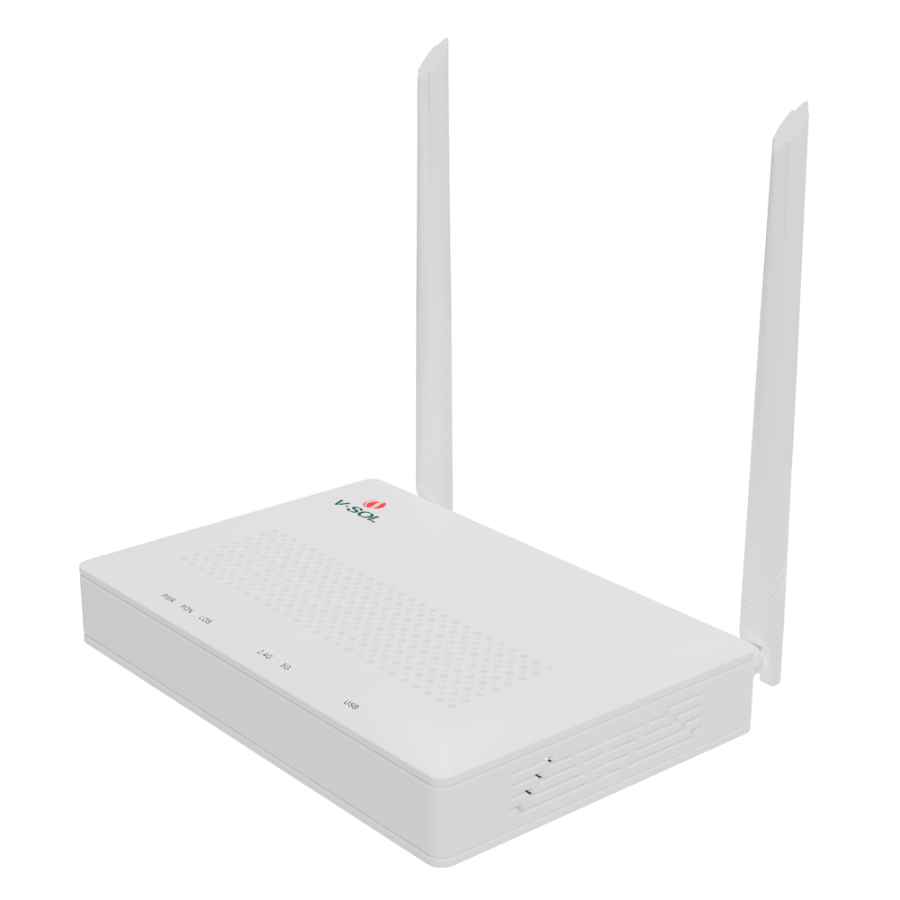

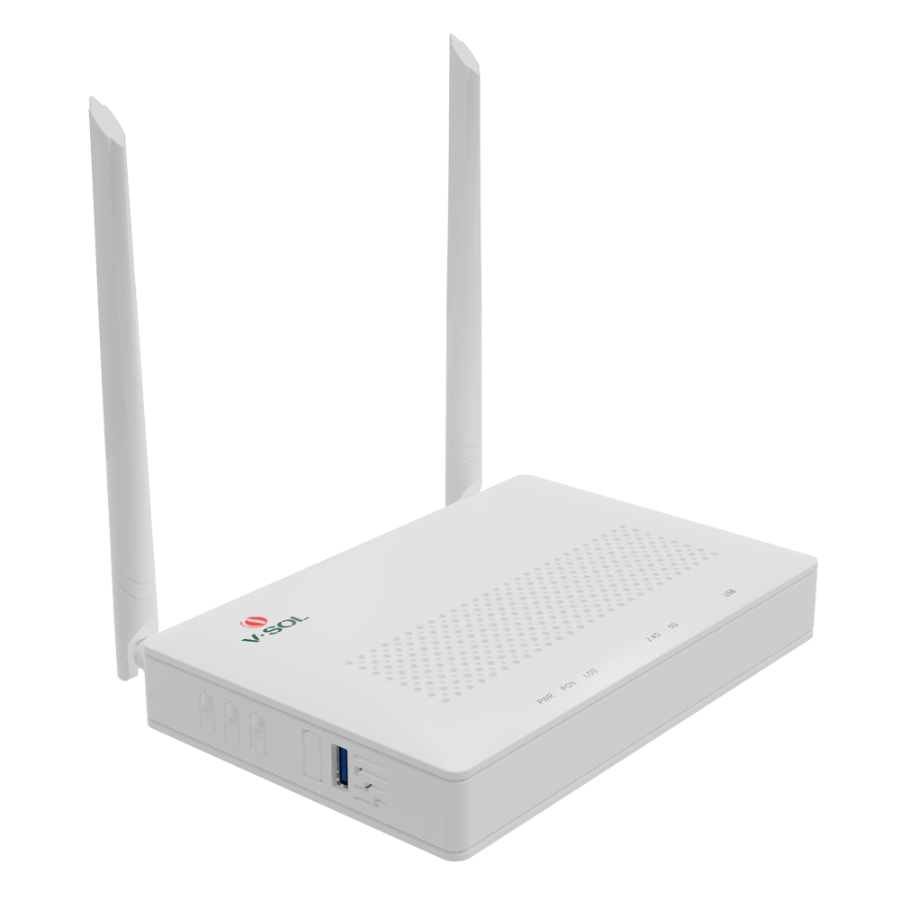

The V2804AC-A (4GE+USB 3.0+WiFi 5 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports dual-mode XPON technology (EPON and GPON), as well as IEEE802.11b/g/n/ac Wi-Fi 5 technology and other layered 2/capa 3, functions providing data services for carrier-grade FTTH applications.
While maintaining its performance, the antenna has been transformed into an integrated dual-band antenna, which not only simplifies the design, but also reduces hardware costs and saves valuable physical space. In addition, the ONT is compatible with the OAM/OMCI protocol, and allows the configuration or management of various ONT services on the VSOL OLT.
The ONT offers high reliability, is easy to manage and maintain, and has quality of service (QoS) guarantees for various services. Complies with a number of international technical standards such as IEEE802.3ah and ITU-T G.984.
