| Brand | VSOL |
| Interface | 1*XPON + 4x RJ45 10/100/1000Mbps ( POE+) |
| PON | XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 dBm (GPON)Transm |
| PoE | 4x PoE+/PoE,IEEE 802.at/afUp to 30 W per (60W port for the entire device) |
| Layer functions 2 ( switching ) | Port speed restrictionsLoop detectionFlow control Storm controlVLAN ( up to 8 vlans ) |
| Multicast | IGMPv1/v2/SnoopingUp to 8 VLAN multicastUp to 64 multicast groups |
| QoS | Supports 4 QoS queues (Voip, IPTV, Internet...)Compatible with SP, WRR, 802.1P |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069/ CLI |
| Dimensions | 205mm x 125mm x 28mm |
| Temp. operation | 0o C ~ +55o C |
| Power | DC 54V 1,11A (adapter included) |

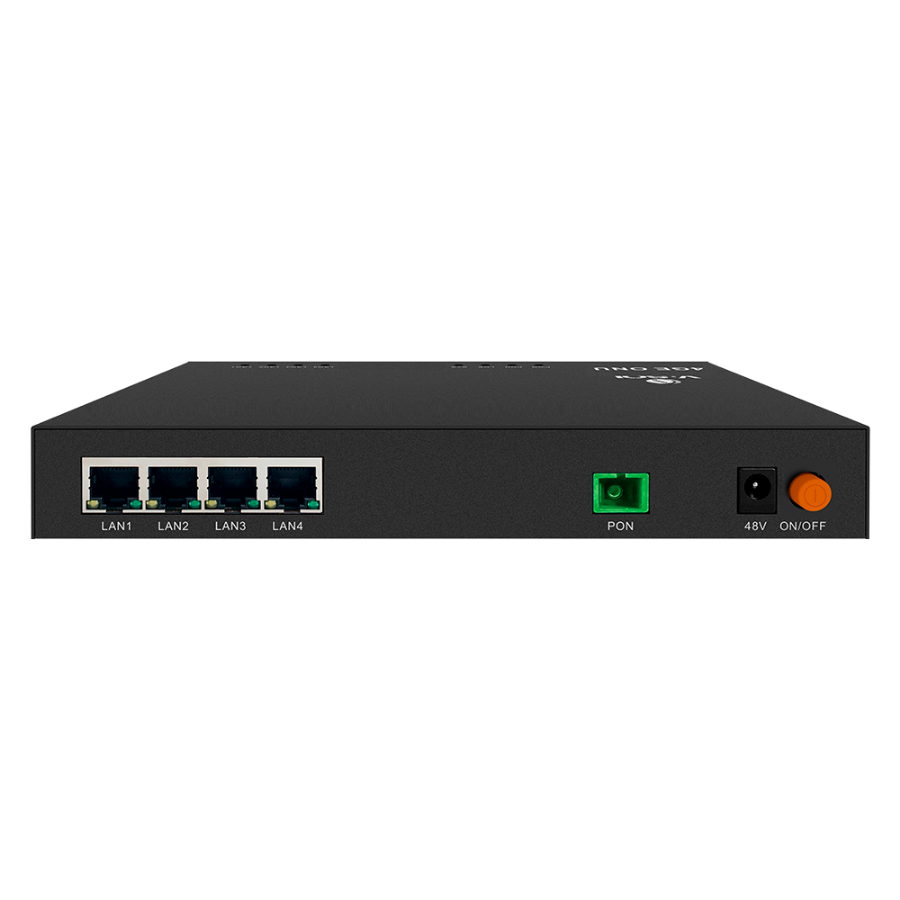

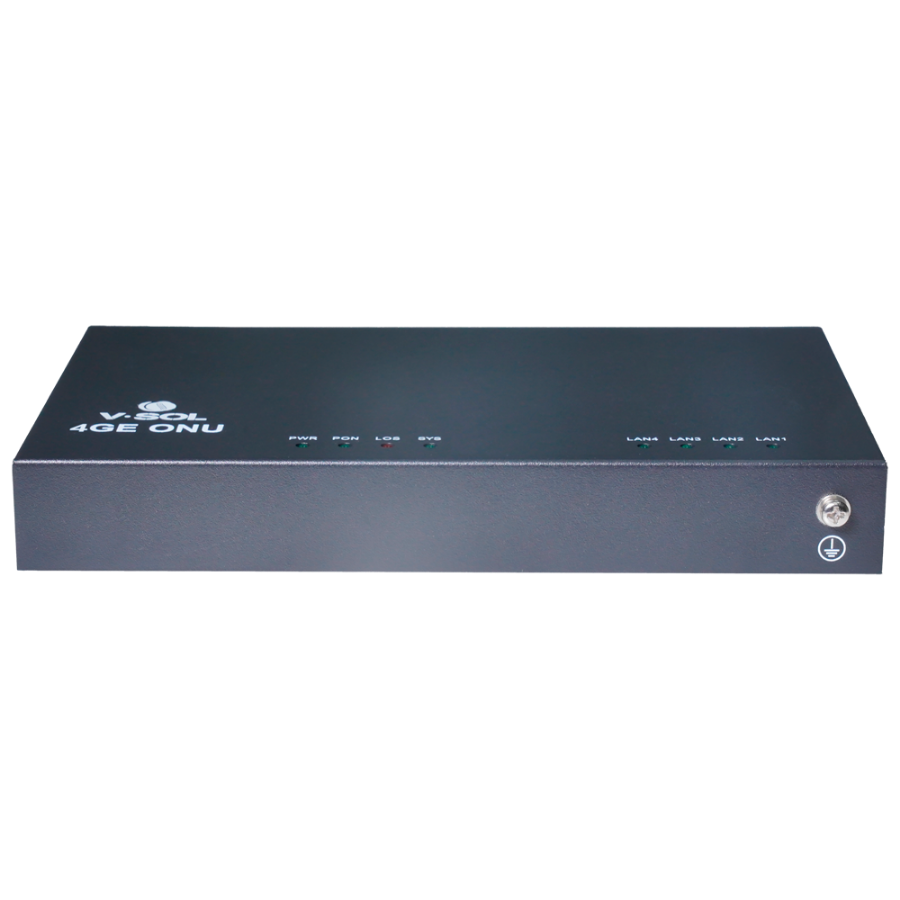

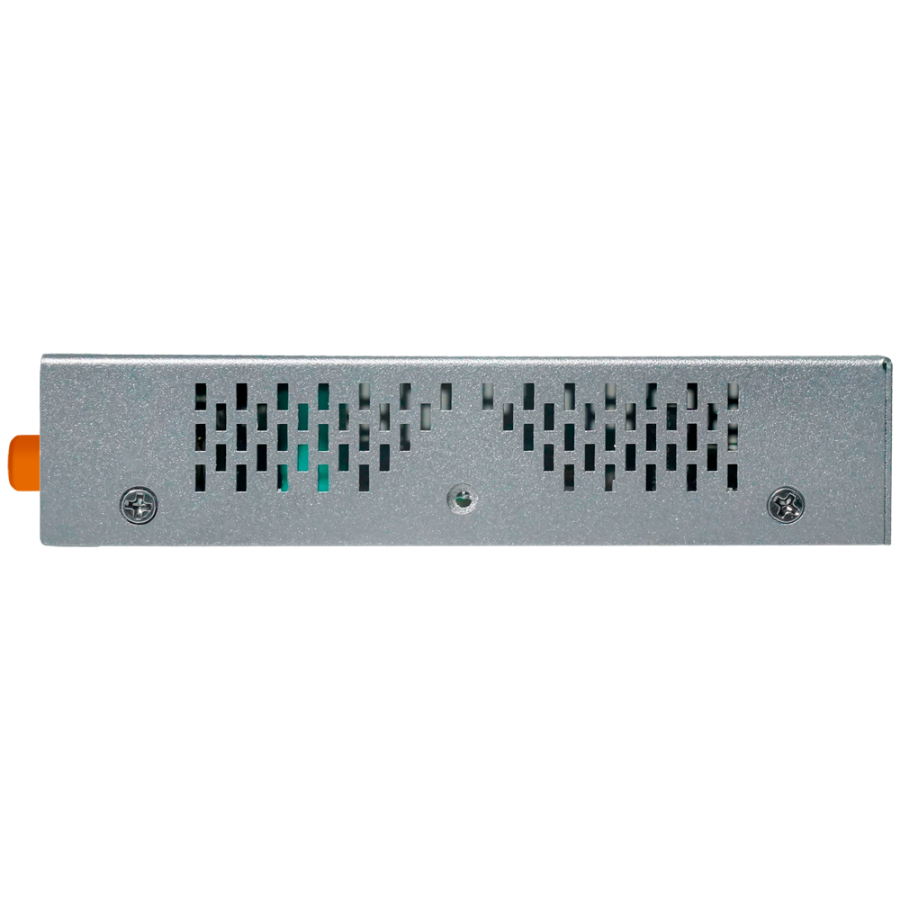

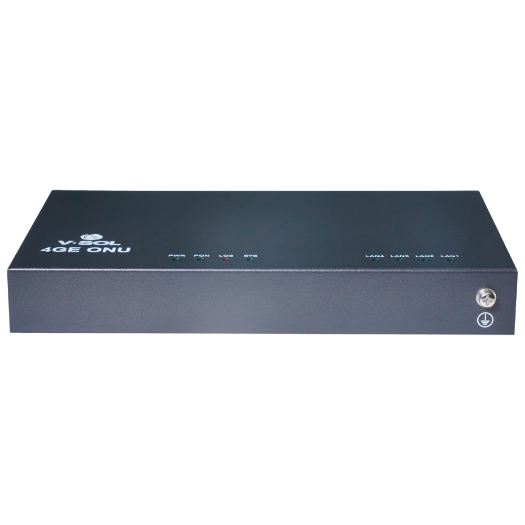

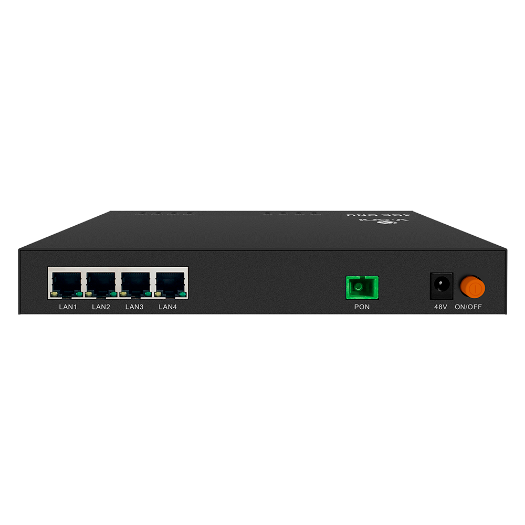

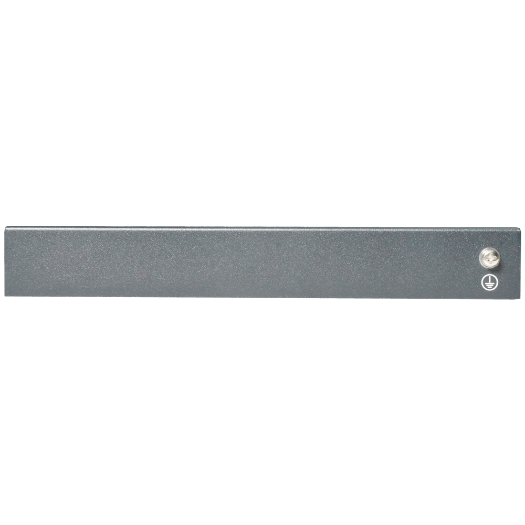

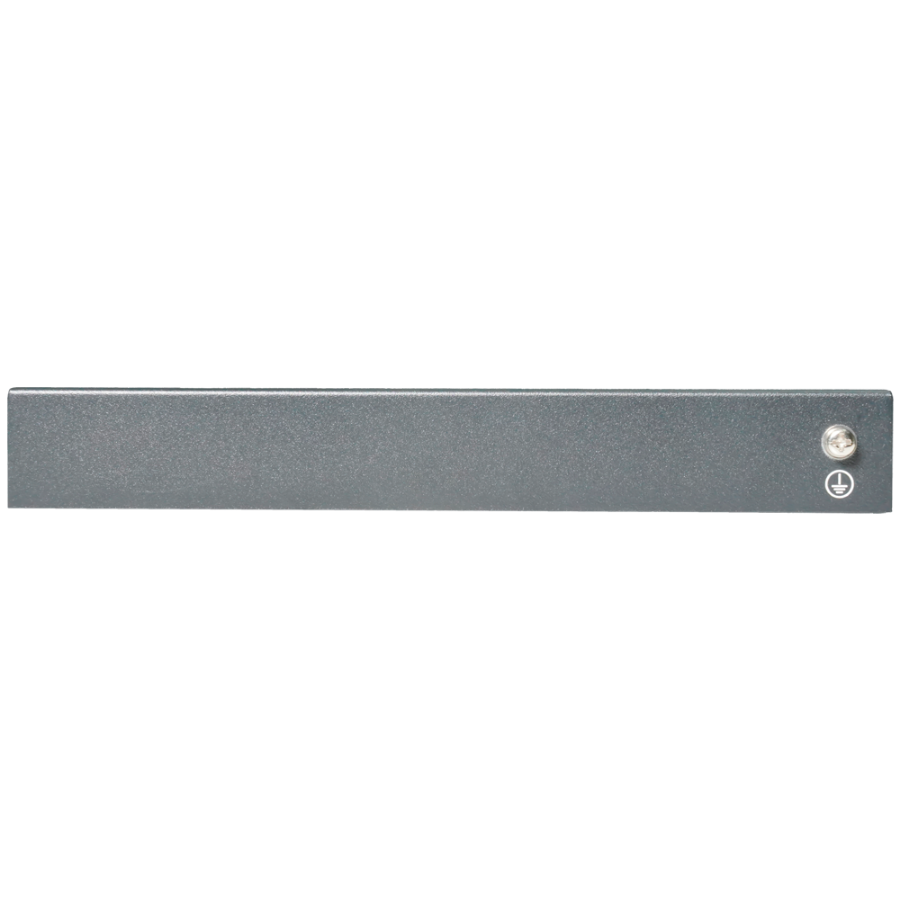

The V2804-4GL-PSE (UN XPON 4GE(PoE+)) is a broadband access device specially designed to meet the needs of telecommunications operators in FTTO (office), FTTD (desktop), FTTH (home), SOHO and video surveillance. This ONU is based on high-performance chip solutions and also supports 2, Layer functions providing data services for carrier-grade FTTH applications. Its 4 network ports support the PoE function, which allows powering IP cameras, wireless access points and other devices via network cables. This ONU offers high reliability, is easy to manage and maintain, and provides quality of service (QoS) assurance for various data services. Complies with various international technical standards, such as IEEE802.3ah and ITU-T G.984.
