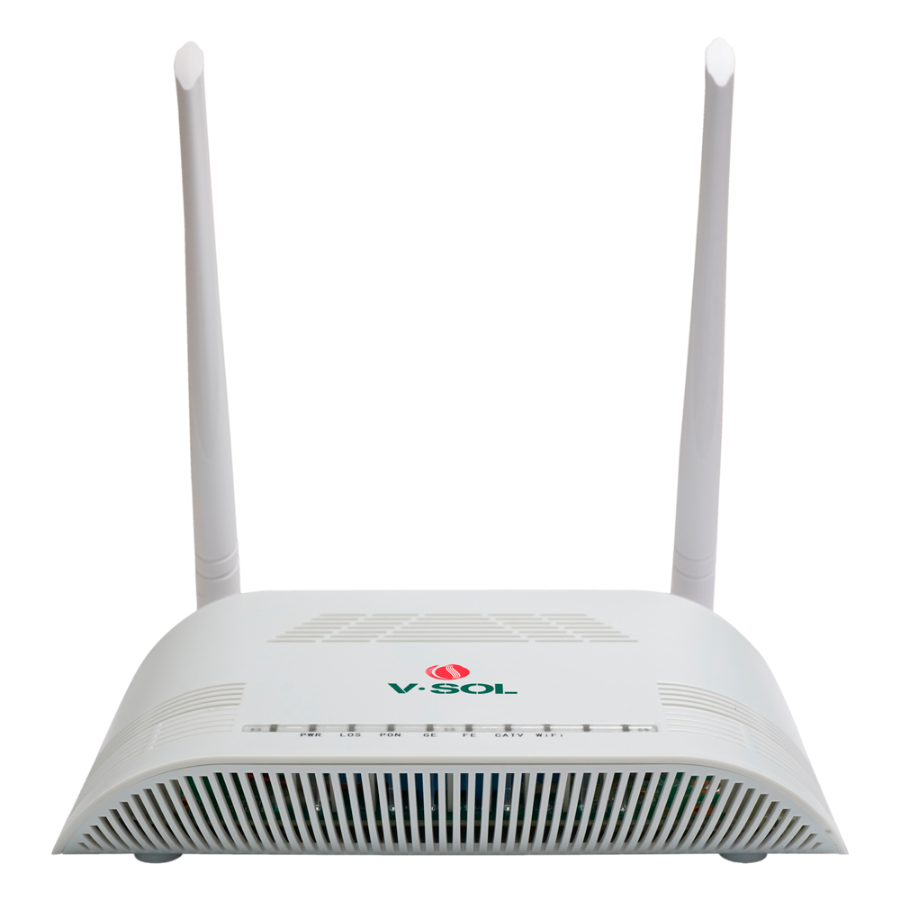

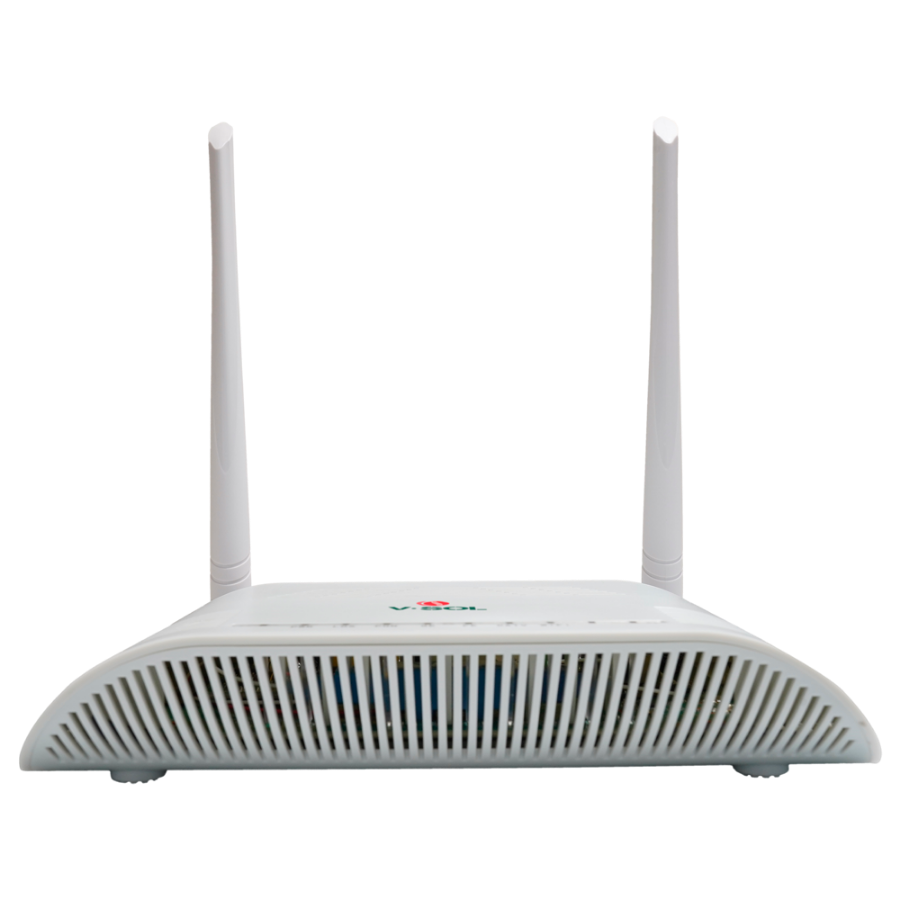

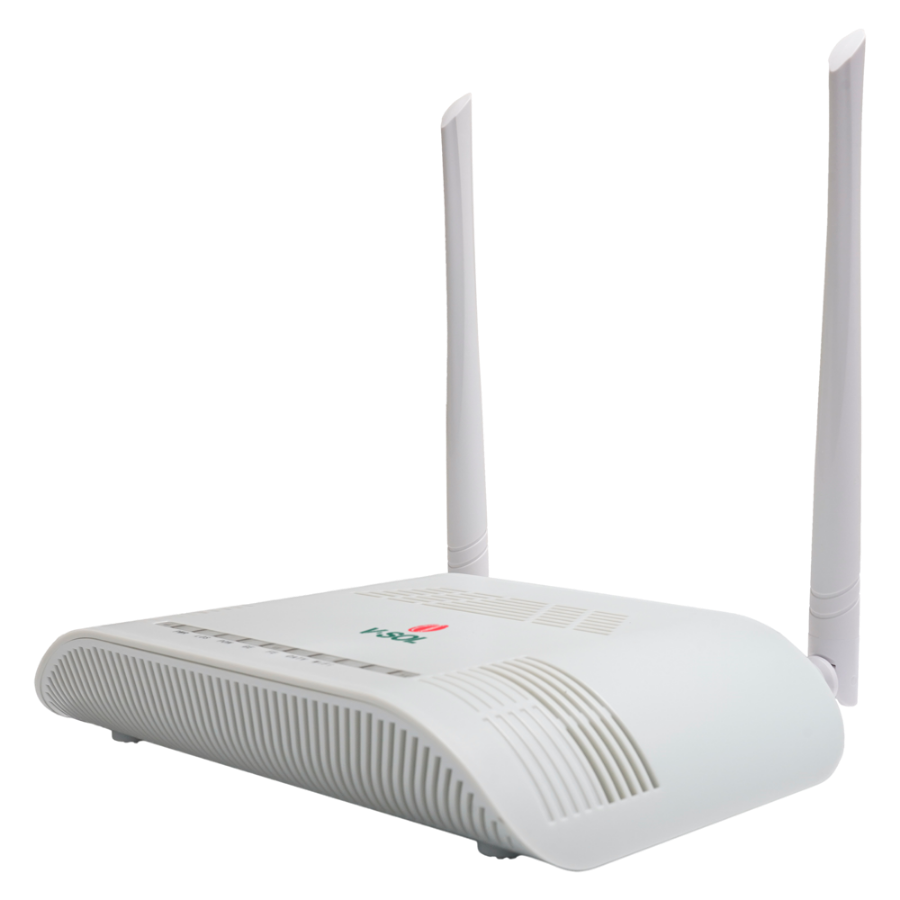

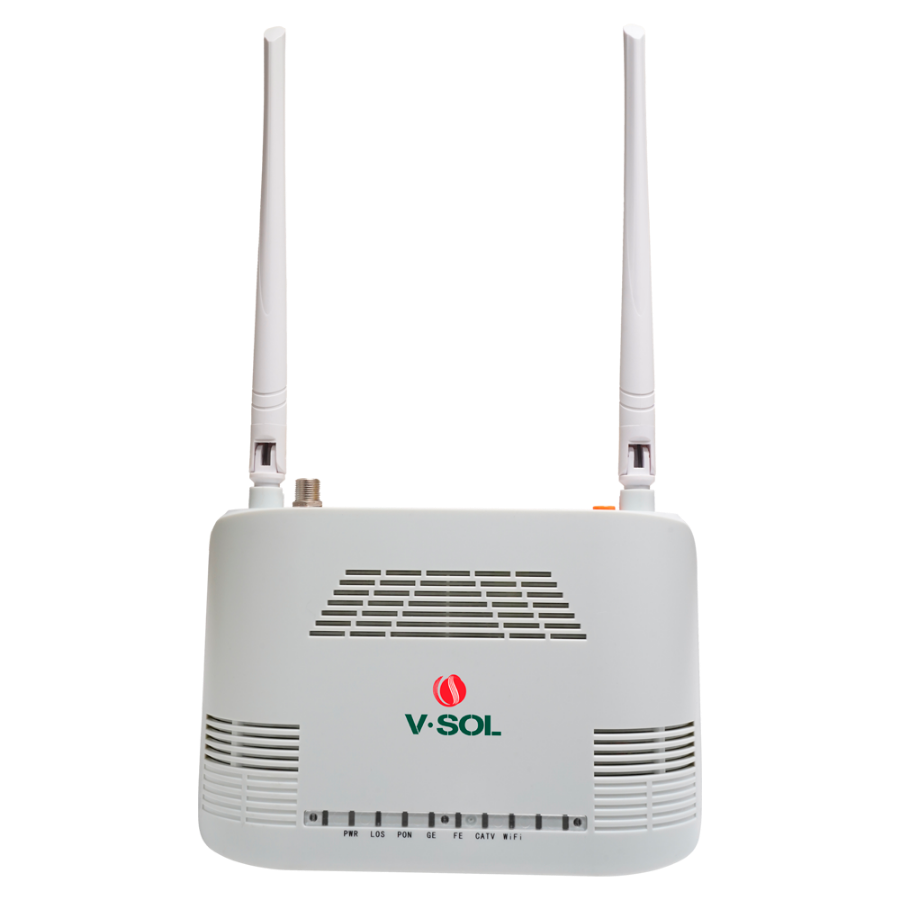

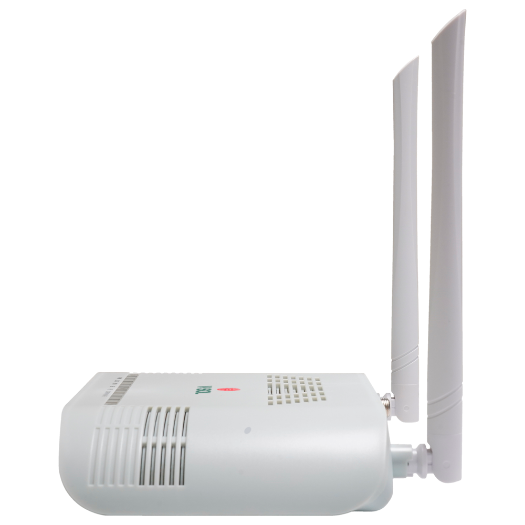

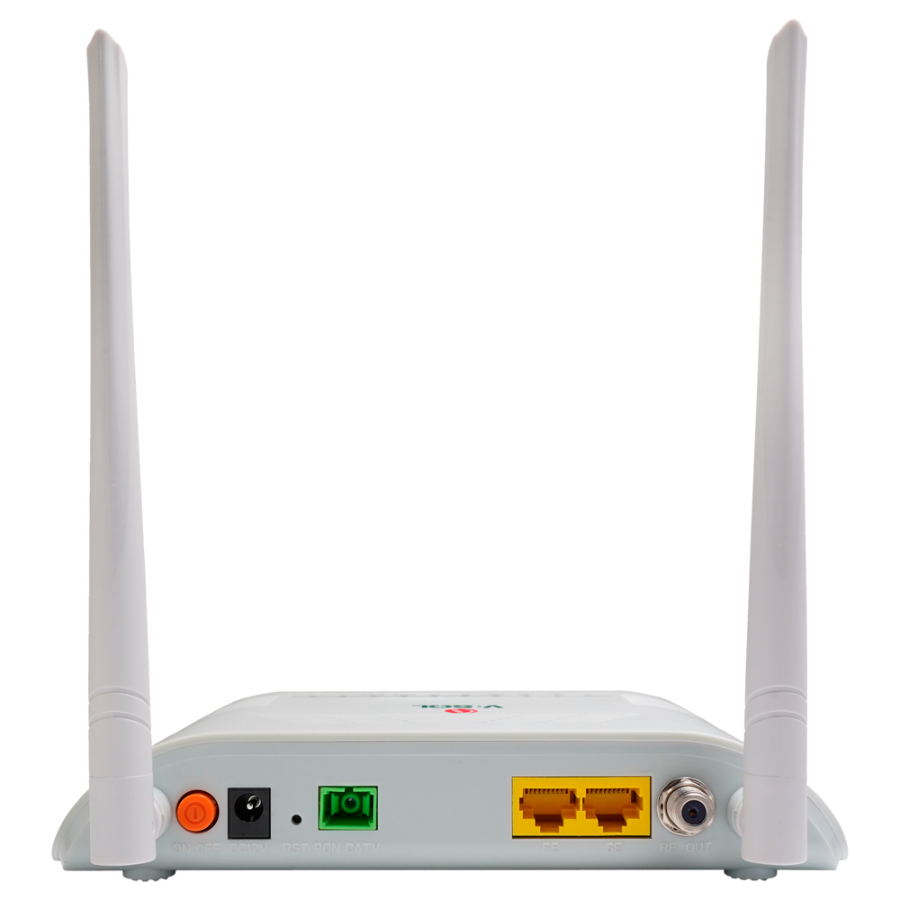

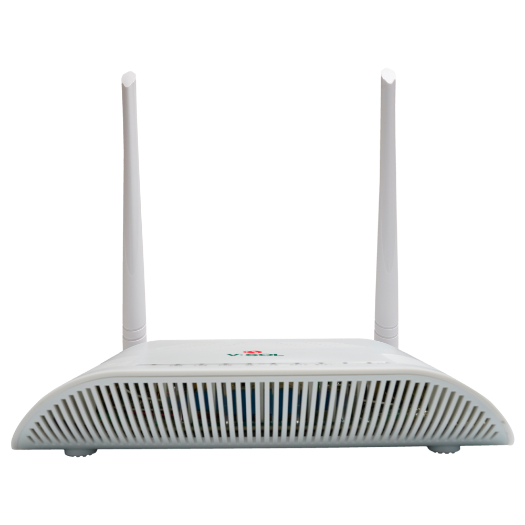

V2802GWT

V-SOL Router ONT Wi-Fi 4 CATV
1X PON 1x LAN RJ45 FE 1x LAN RJ45 GE 1x CATV
802.11ac 2x2 double band 2.4 and 5GHz
Ideal for home and business FTTH

Brand: VSOL

Šifra: V2802GWT

29,16 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	V-SOL
Interface	1X PON 1x LAN RJ45 FE 1x LAN RJ45 GE 1x CATV
PON	XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 dBm (GPON)Transm
CATV	Optical reception wavelength: 1550 ± 10 nmOptical input range: +2 ~ -18 dBmOptical reflection loss: ?40 dB- RF frequency range: 47 ~ 1000 MHzRF output impedance: 75 ?RF output level and AGC range:?81
WiFi Antennas	Complies with IEEE802.11b/g/n/acWi-Fi: 2,4 GHz, 5 GHz 2x2, speed up to 1,167 Gbps, multiple SSIDsTransmission power: 2,4 GHz: 18 dBm; 5 GHz: 17 dBmReceiving power: 2,4 GHz: HT40-MCS7 -71 dBm; 5 GHz: V
Funciones WiFi	802.11b/g/n/ac integradoAutenticación: WAP-PSK (TKIP)/WAP2-PSK (AES)Múltiples SSIDSSID ocultosWiFi MeshAdmite hasta 64 conexiones de dispositivos
Protocolos de Gestión	OAM/OMCI/Telnet/Web/TR069Admite la gestión completa de las funciones de HGU mediante VSOL OLT
Funciones de capa 2 ( switching )	Compatible con bridge 802.1D y 802.1ad, VLAN 802.1Q
Funciones de capa 3 ( routing )	IPv4, IPv6 e IPv4/IPv6 dual stackDHCP/PPPOE/EstáticoRuta estática, servidor DHCPNAT/DMZ/DDNS/Servidor virtual
Multicast	IGMP v1/v2/v3, espionaje IGMPProxy IGMPEspionaje MLD v1/v2Proxy MLD
QoS	Admite 4 colas de QoS ( Voip, IPTV, Internet ..)Compatible con SP, WRR, 802.1P y DSCP
Seguridad	Funciones básicas de firewall Filtrado de MAC basado en MAC o URLACLsCompatible con detección de bucles
Funciones del sistema	NTP (Protocolo de Tiempo de Red) Reinicio programado del dispositivoHerramientas de diagnósticos de ping y traceroute
Color	Blanco
Dimensiones	185mm x 120mm x 34mm
Peso	290g
Temp. Funcionamiento	0o C ~ +55o C
Alimentación	DC 12V 1A (adaptador incluido)

Opis

The V2802GWT (1GE+1FE+WiFi 4+CATV XPON ONT) is specially designed for various FTTH solutions. This ONT is based on a high-performance chipset (Realtek), supports Wi-Fi IEEE802.11b/g/n technology and other Layer 2/Capa 3, functions and can provide data services for carrier-grade FTTH applications.The ONT offers high reliability and is easy to manage and maintain. Offers quality of service (QoS) guarantees for various services.
