| Brand | V-SOL |
| Interface | 1x PON 1x LAN RJ45 10/100/1000/2500 Mbps |
| PON | XPON Port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 dBm (GPON)Transm |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069 |
| Layer functions 2 ( switching ) | Compatible with bridge 802.1D and 802.1ad, VLAN 802.1Q |
| Layer functions 3 ( routing ) | IPv4, IPv6 and IPv4/IPv6 dual stackDHCP/PPPOE/StaticStatic route, DHCP serverNAT/DDNS/Virtual Server |
| Multicast | IGMP v1/v2/v3Maximum multicast VLANs: 8Maximum multicast groups: 64 |
| QoS | Supports 4 QoS queues (Voip, IPTV, Internet...)Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions MAC or URL based MAC filteringACLsLoop detection support |
| Colour | White |
| Dimensions | 82mm x 82mm x 25mm |
| Weight | 85g |
| Temp. operation | 0o C ~ +55o C |
| Power | DC 12V 0.5A (adapter included) |

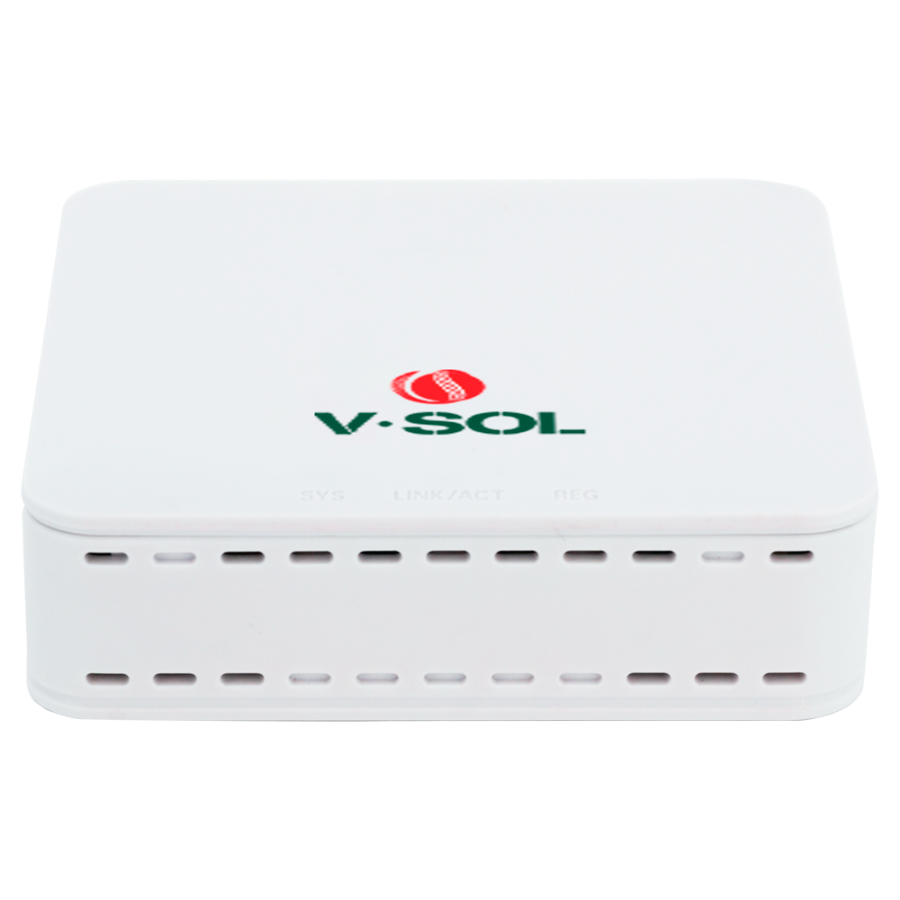

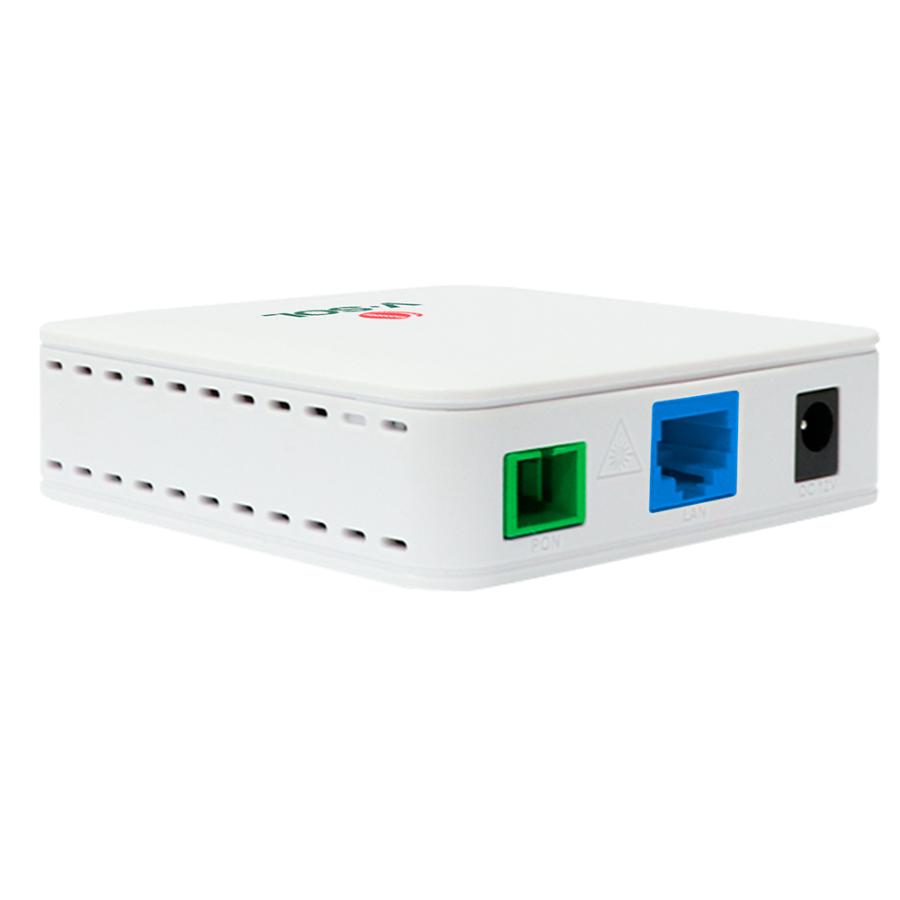

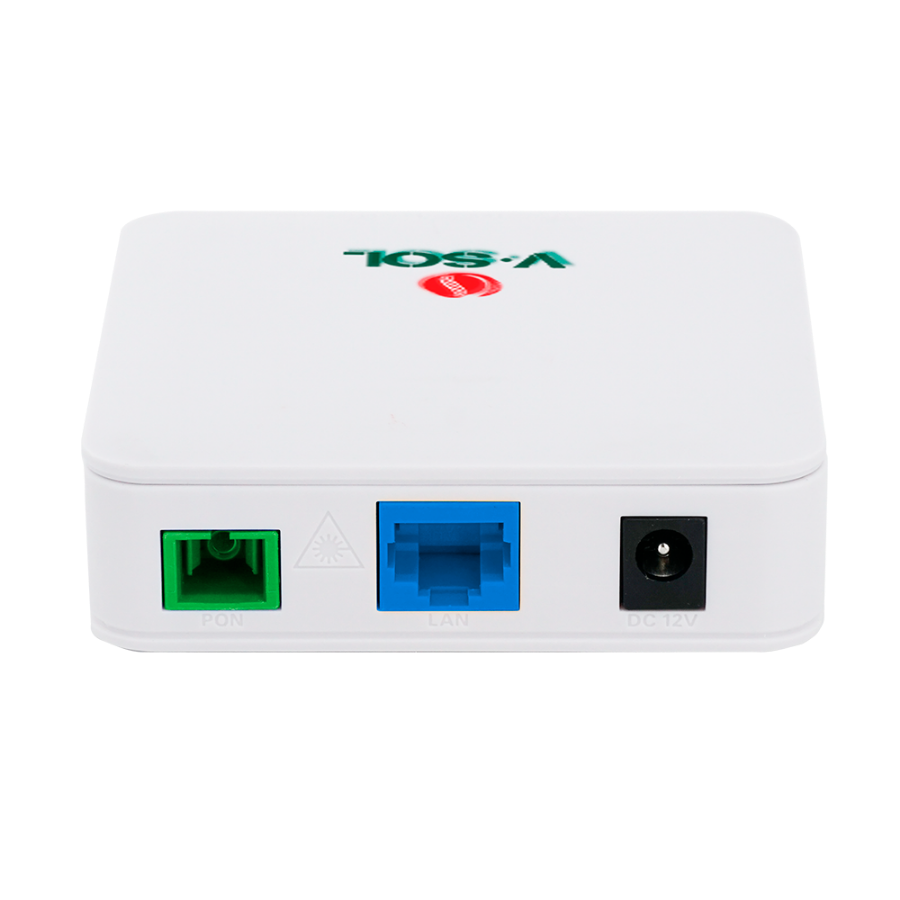

The V2801Q ONT (XPON 2.5GbE ONU) is specially designed to meet the needs of telecom operators in FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. This ONU is based on a high-performance chip and features an 2.5GbE, port that provides users with a high-speed networking experience and true Gigabit connectivity on the desktop. The ONT offers high reliability and can be applied to a wide range of temperatures and has a powerful firewall function, easy to manage and maintain. Offers quality of service (QoS) assurance for different services. The ONT complies with international technical standards such as IEEE802.3ah and ITU-T G.984.
