| Brand | VSOL |
| Interface | 1X PON ( PoF ) 1x LAN RJ45 10/100/1000Mbps |
| PON | 1 XPON port (EPON PX20+ and GPON Class B+)Single-mode SC, SC/UPC connectorPoF compatibleOptical transmission power: 0 to +4 dBmReceiving sensitivity: -27 dBmOptical overload power: -3 dBm (EPON) o -8 |
| WiFi Antennas | Compatible with IEEE802.11b/g/n/ac/ax2402 Mbps at 5 GHz and 574 Mbps at 2,4 GHz2,4 GHz: 2 x 2, 5 GHz: 3 x 3; 5 internal 4 dBi antennas |
| WiFi functions | 802.11b/g/n/ac integratedAuthentication: WAP-PSK (TKIP)/WAP2-PSK (AES)Multiple SSIDsHidden SSIDsWiFi MeshSupports up to 64 device connections |
| Management Protocols | OAM/OMCI/Telnet/Web/TR069Supports full function management via VSOL OLT |
| Layer functions 2 ( switching ) | Compatible with bridge 802.1D and 802.1ad, VLAN 802.1Q |
| Layer functions 3 and 4 | IPv4, IPv6 and IPv4/IPv6 dual stackDHCP/PPPOE/StaticStatic route, DHCP serverNAT/DMZ/DDNS/Virtual Server/ALG and UPnP |
| Multicast | IGMP v1/v2/v3, IGMP eavesdroppingIGMP ProxyMLD Espionage v1/v2MLD Proxy |
| QoS | Supports 4 QoS queues (Voip, IPTV, Internet...)Compatible with SP, WRR, 802.1P and DSCP |
| Security | Basic firewall functions MAC or URL based MAC filteringACLsLoop detection supportCompatible with anti-DoS functionParental Controls |
| System functions | NTP (Network Time Protocol)Scheduled device restartPing and traceroute diagnostic toolsCompatible with Iperf speed measurement functionWLAN packet capture |
| Colour | White |
| Dimensions | 240mm x 240mm x 32mm |
| Weight | 400g |
| Temp. operation | 0o C ~ +55o C |
| Power | AC : 12 V 1,5 APoF: 14-60 V |

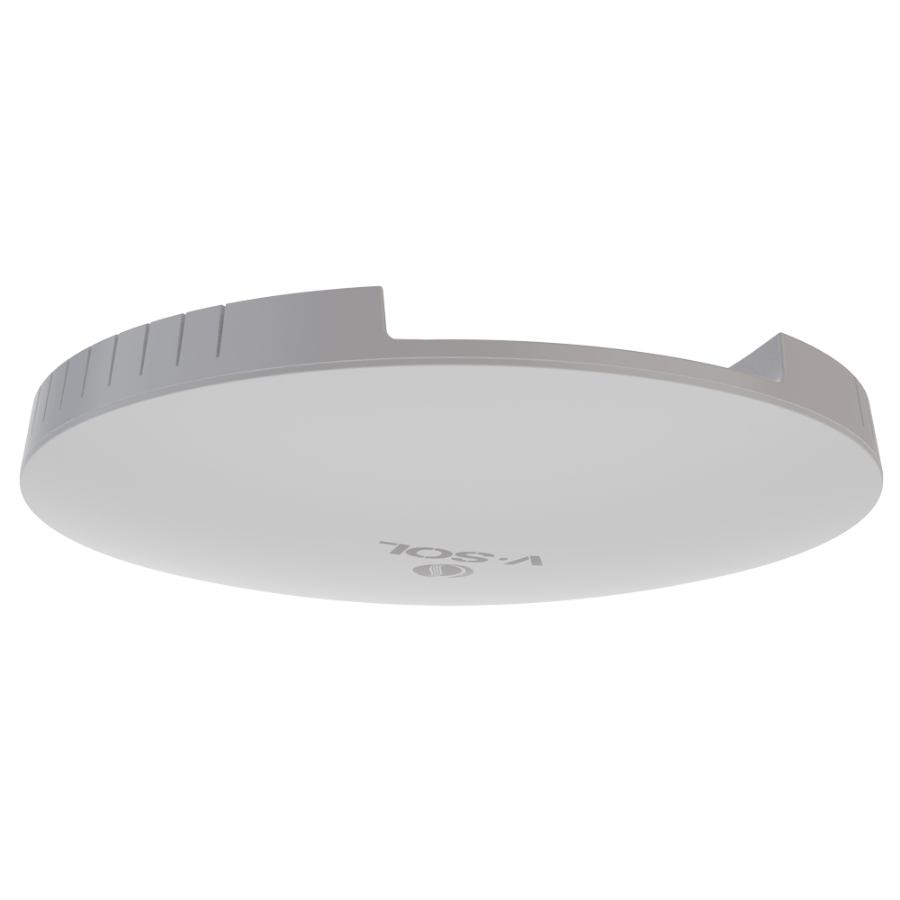

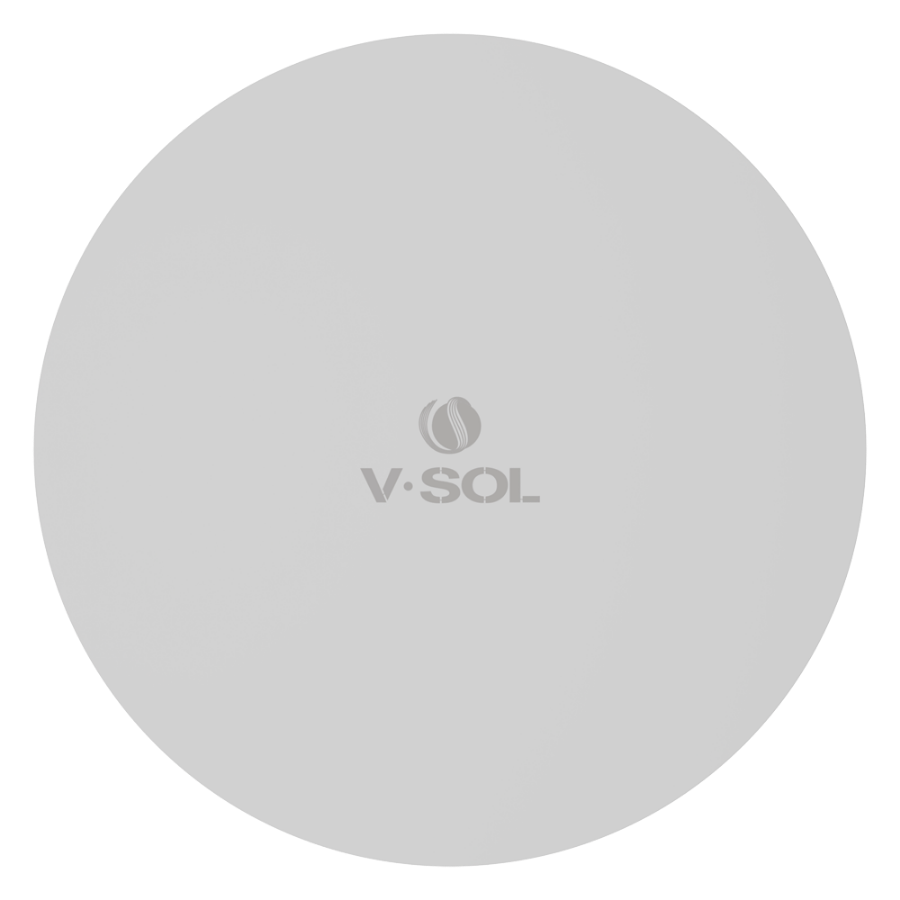

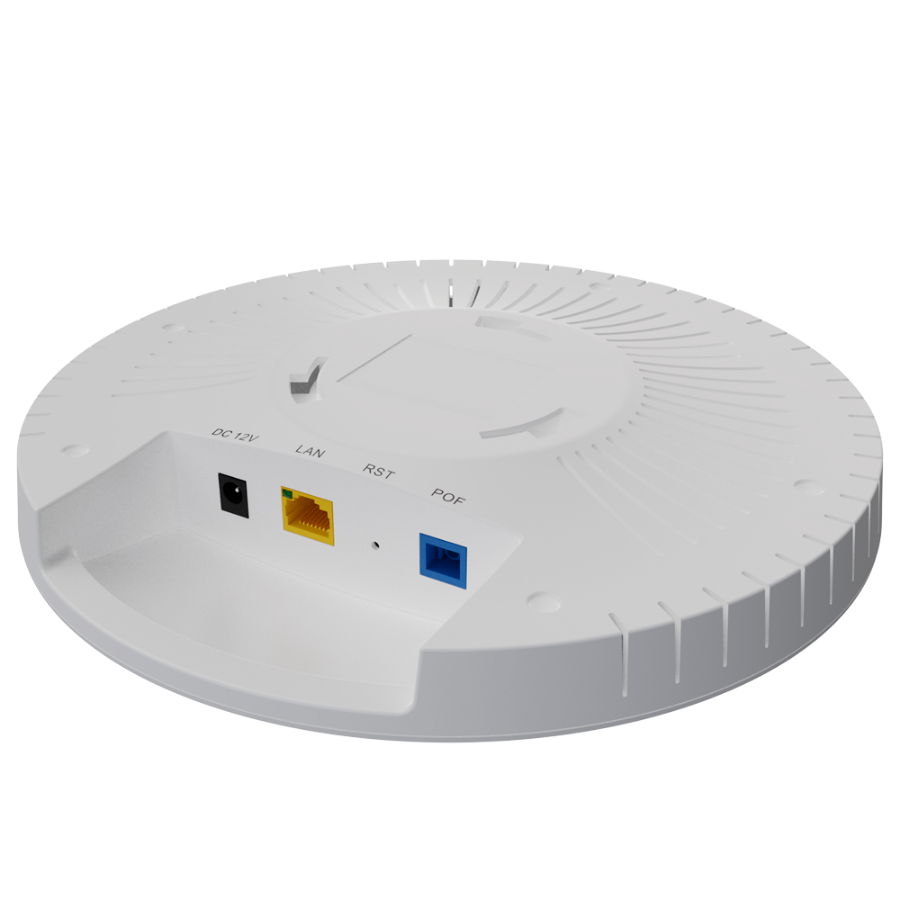

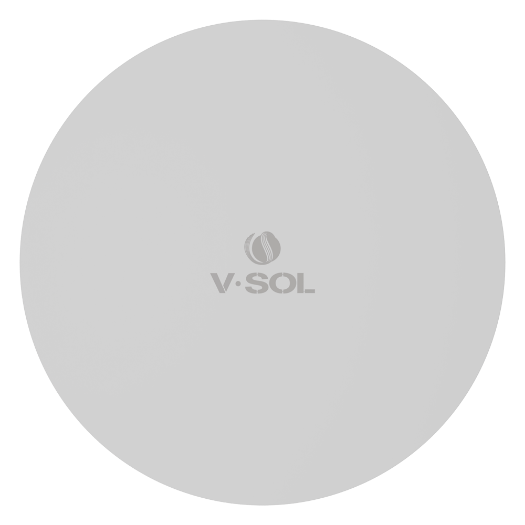

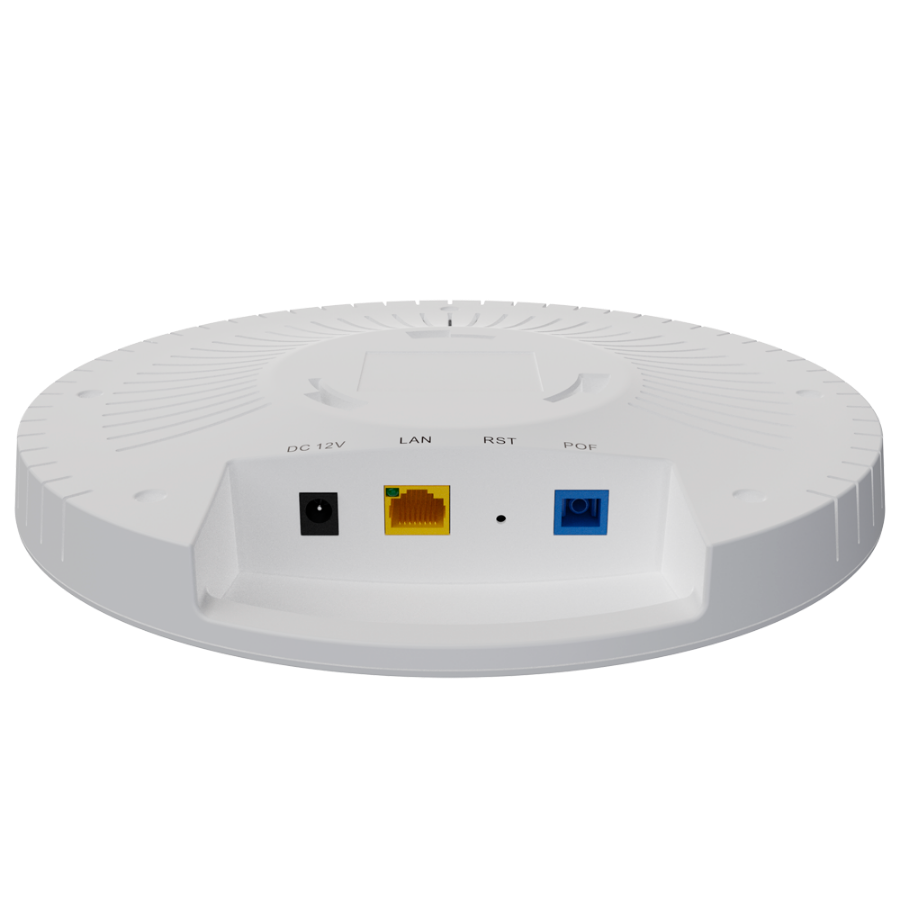

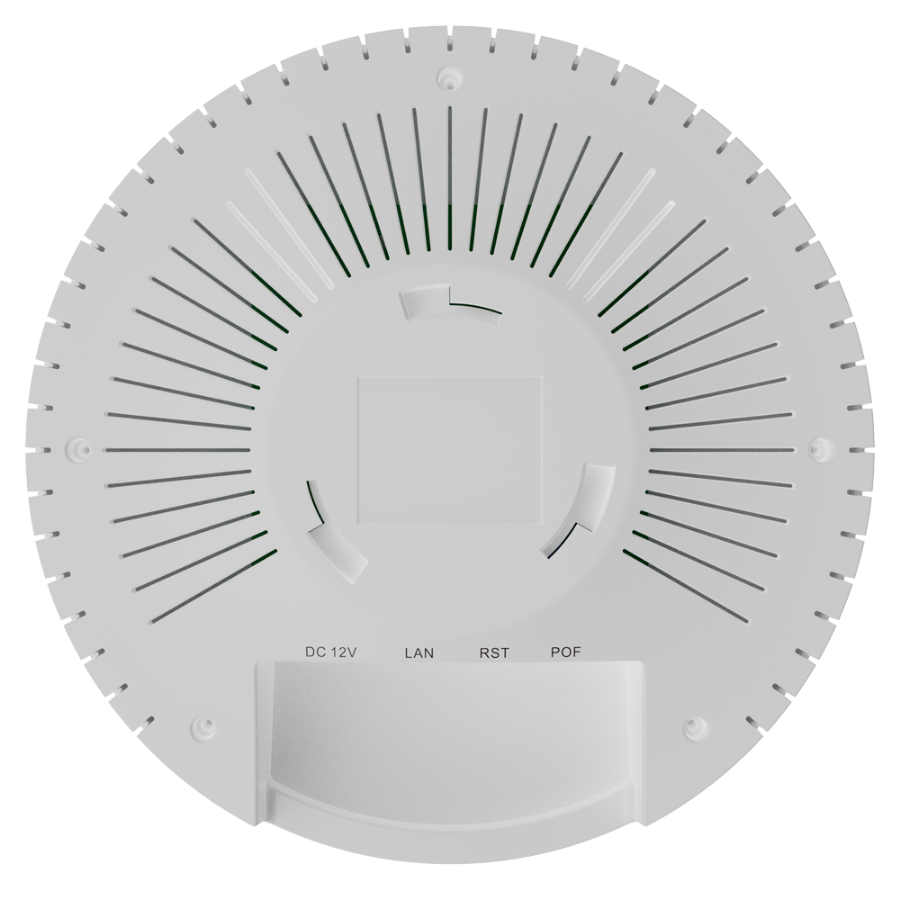

The VSOL V2801AX30C-A is a newly launched, compact, stylish and easy-to-install 6 circular ceiling-mounted WiFi ONT. Supports PoF optical-electric composite cable power supply, PoF in the room, no power failure, and power transmission and fiber optic transmission do not interfere with each other, which makes it more stable and secure. This ONT is flexible and easy to use in various scenarios, such as hotel lobbies, classrooms, conference rooms, restaurants, etc. It is equipped with a high-performance AX3000 chipset, integrated WiFi antenna and a wireless speed of up to 3000 Mbps, providing users with excellent performance.
