| Brand | V-SOL |
| Fiber type | PoF ( PON with fiber optic power supply ) |

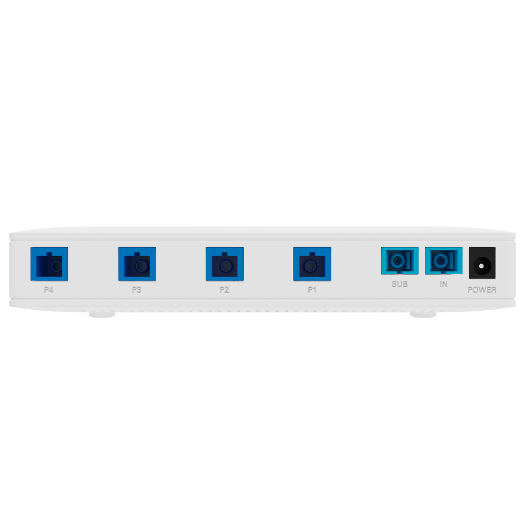

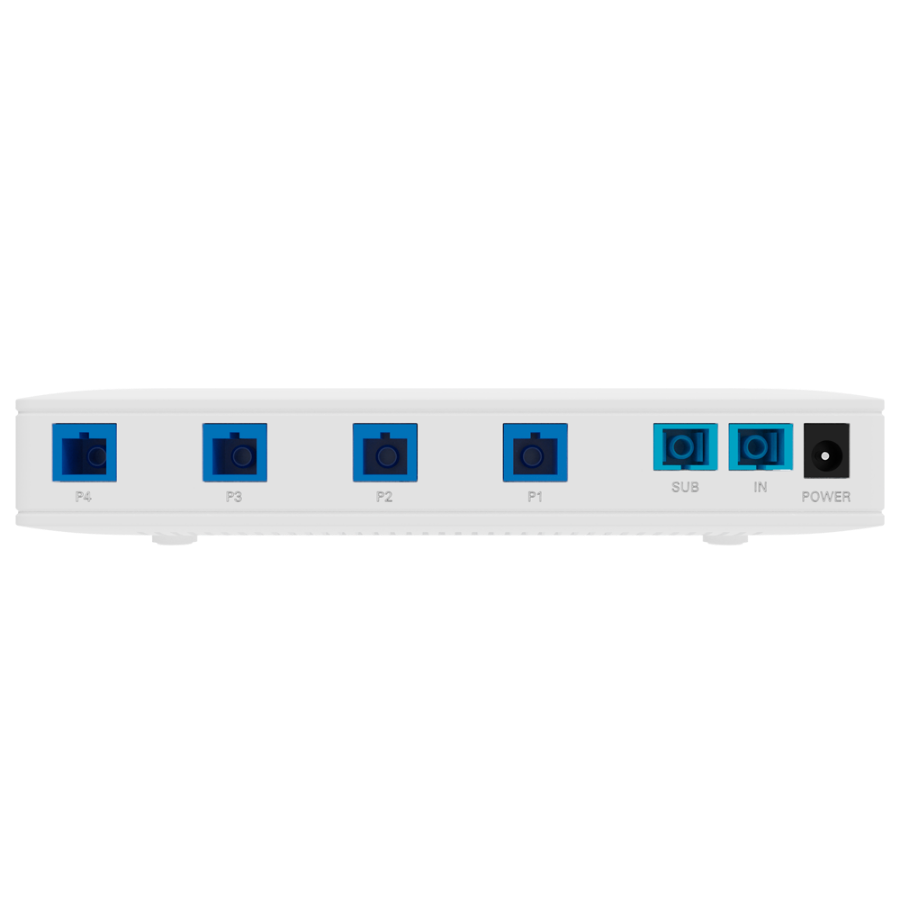

| PON | From 1 to 5 power dividers, 1 cascaded output port (4 output ports, single port with a maximum of about 30 W, optional APC and UPC) |
| Connector type | SC |
| Optical signal indicator | Output insertion loss ( dB ) : ?15.6Cascade port insertion loss ( dB ) : ?1.8Uniformity ( dB ) : ?0.7Polarization related loss ( dB ) : ?0.3Return loss ( dB ) : ?50Directionality ( dB ) : ?55Operating |
| Power indicator | Input voltage : 48VDCPermissible input fluctuation range : 44~54VDCNumber of outputs : 4Rated output voltage : 48VDCOutput voltage range : 44~54VDCRated output current : 0.25A( 0.5A max per port ) |
| Operating environment | Operating temperature : -20~+45?Storing temperature : -20~+55? |
| Dimensions | 26 (H) x 180 (W) ×120 (D)mm |

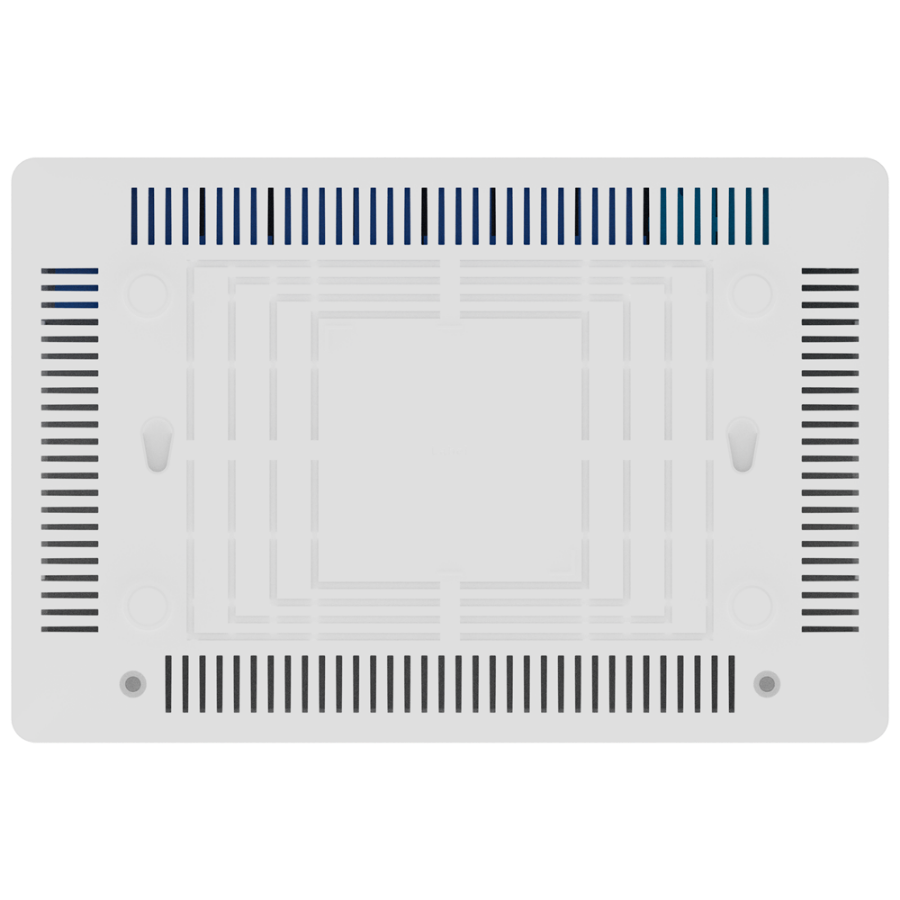

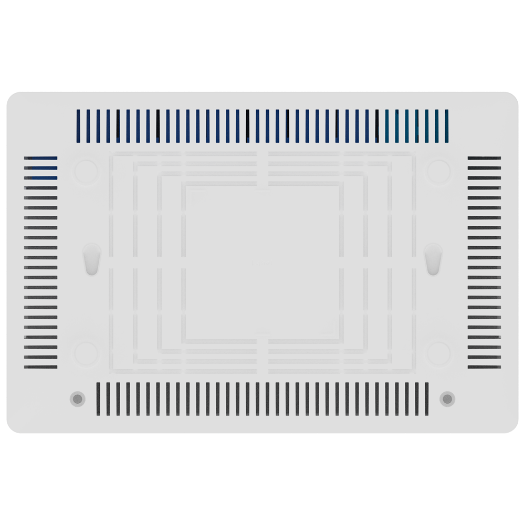

| Installation | Wall and tabletop mounting |

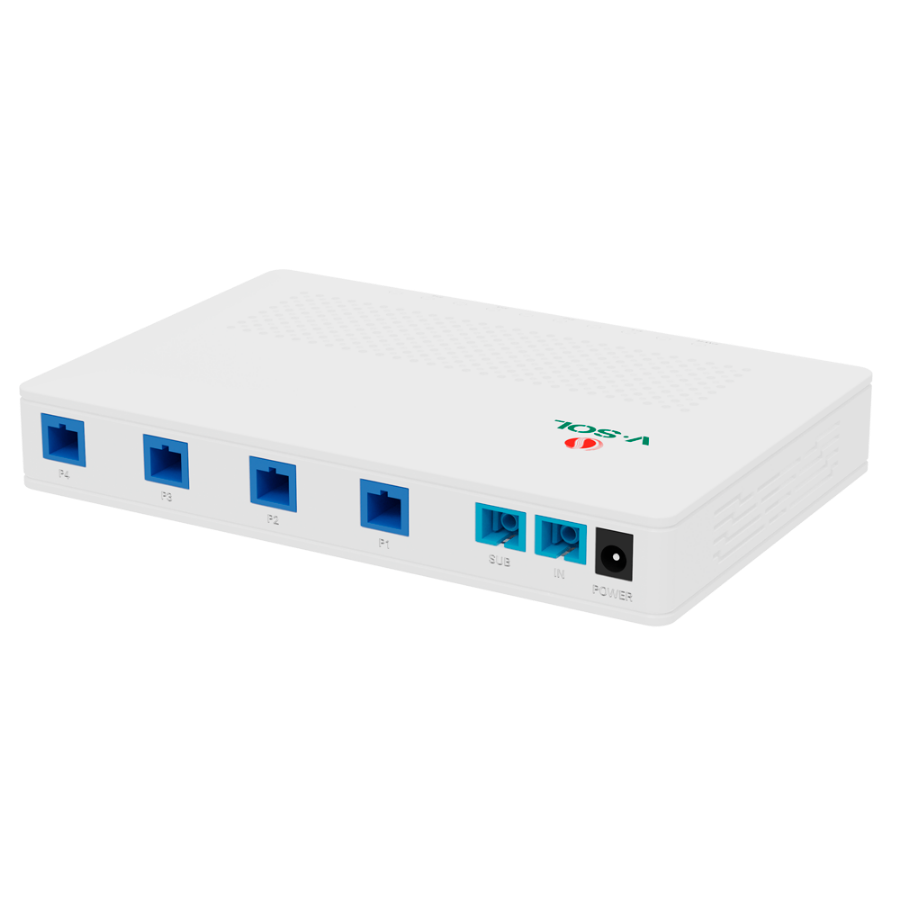

The V180XP series optical power splitter integrates splitting and power supply, takes up little space and provides data transmission and remote PoF power to terminal equipment via optoelectronic composite cable. It is ideal for indoor access networks in business parks and other terminal equipment such as ONU/MDUs, PON optical access points, etc., with difficulties in obtaining power. This product is widely used in commercial buildings, schools, parks, homes and other FTTR network applications. It is easy to implement and offers a better solution for power supply difficulties and cabling problems of access network equipment.
