| Brand | V-SOL |
| Chassis | Rack 1U |
| Interfaces | 4 Ports RJ45 10/100/1000 Mbps + 2 1/10Gigabit SFP+ Port 2 Ports ( GPON 1.25Gbps/2.5Gbps, XG-PON 2.5Gbps/9.95Gbps, XGS-PON 9.95Gbps/9.95Gbps )1 USB-COM port ( Type C )1 Port USB2.01 Auxiliary Port1 Co |
| GPON | GPON port speed: Up/Down ~ 1.25Gbps/2.5Gbps XG-PON port speed: Up/Down ~ 2.5Gbps/9.95Gbps XGS-PON port speed: Up/Down ~ 9.95Gbps/9.95Gbps Fiber Type : Single mode 9/125µmConnector: SC/UPC,TX: 7.5±0.5 |
| Plate bandwidth | 208 Gbps |
| Forwarding rate | 124.992 Mbps |
| Management Protocols | WEB/Telnet/CLI/SNMPPort status configuration monitoring and managementONT online configuration and managementUser managementAlarm management |
| Switching Layer 2 | Mac address table ( up to 16000 )Supports Vlans ( up to 4096 ) Storm control by portsSupports 802.1D and 802.1W ( STP )Port isolation Bandwidth limitation per portIEEE802.x Flow controlPort monitoring |
| Multicast | IGMP snooping1000 IP Multicast Groups L21000 IP Multicast Groups L3 |
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82DHCPv6 server, DHCPv6 relay |
| Routing Layer 3 | Dynamic and static ARP tableWAN configuration (DHCP/PPPOE/Estatic)Static routing, NAT, DMZQoS based on DSCP, MAC, IP, Protocol, etc.Access Control List ( ACL ) |
| GPON functions | Complies with the ITU-T984.x standard (standard for GPON networks) Transmission distance up to 20 km Data encryption, multicast, port VLAN, splitting, etc. ONT autodiscovery, link detection and remote |

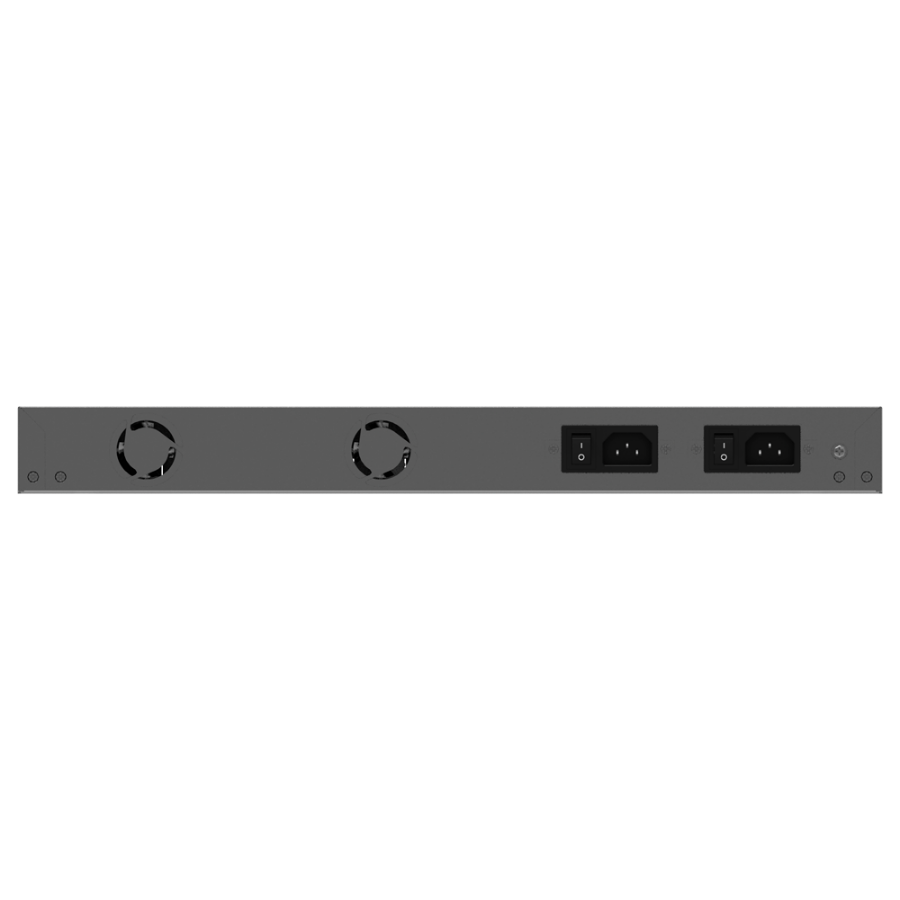

| Power | AC 100 V - 240 V |
| Operating temperature | -20°C - 60°C |
| Dimensions | 442mm x 200mm x 43.6mm |
| Weight | 2.485 kg |

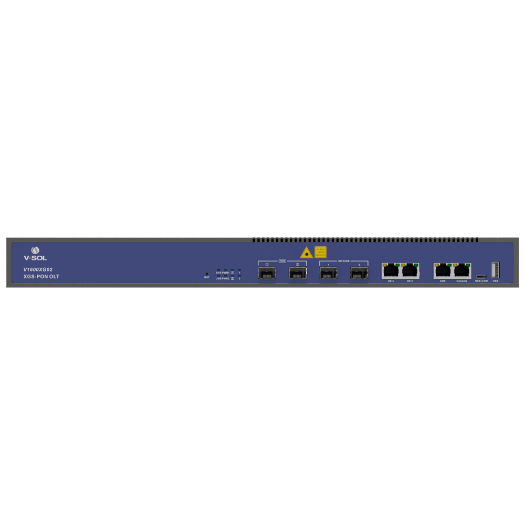

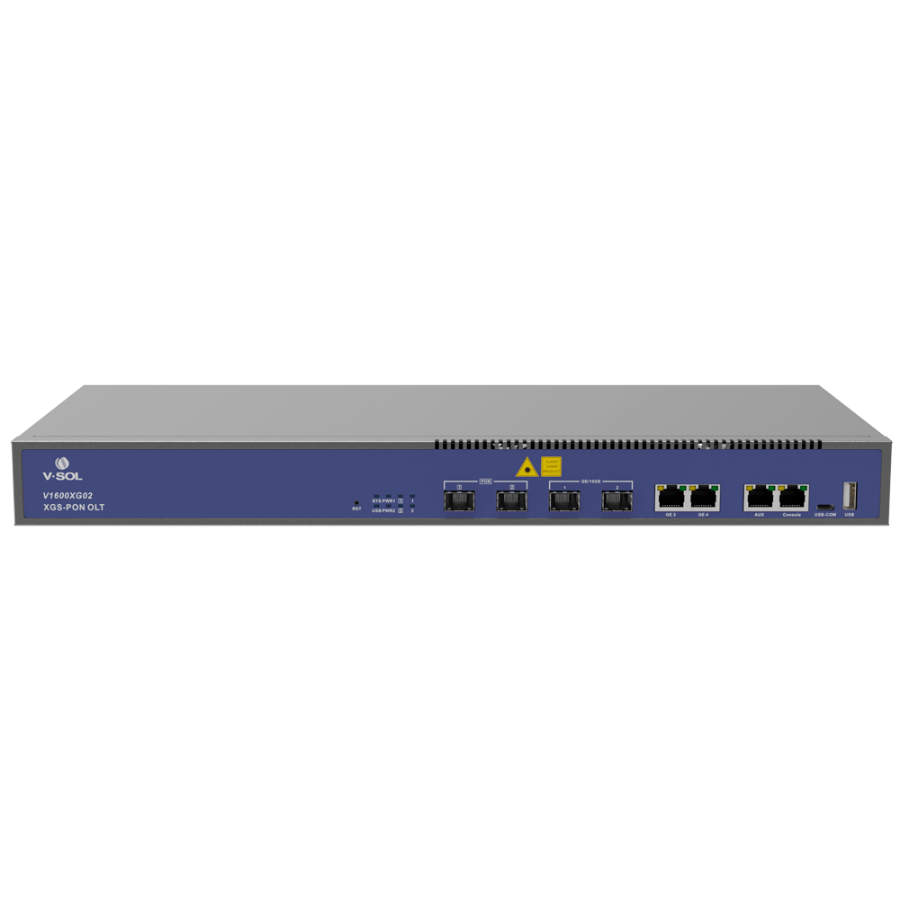

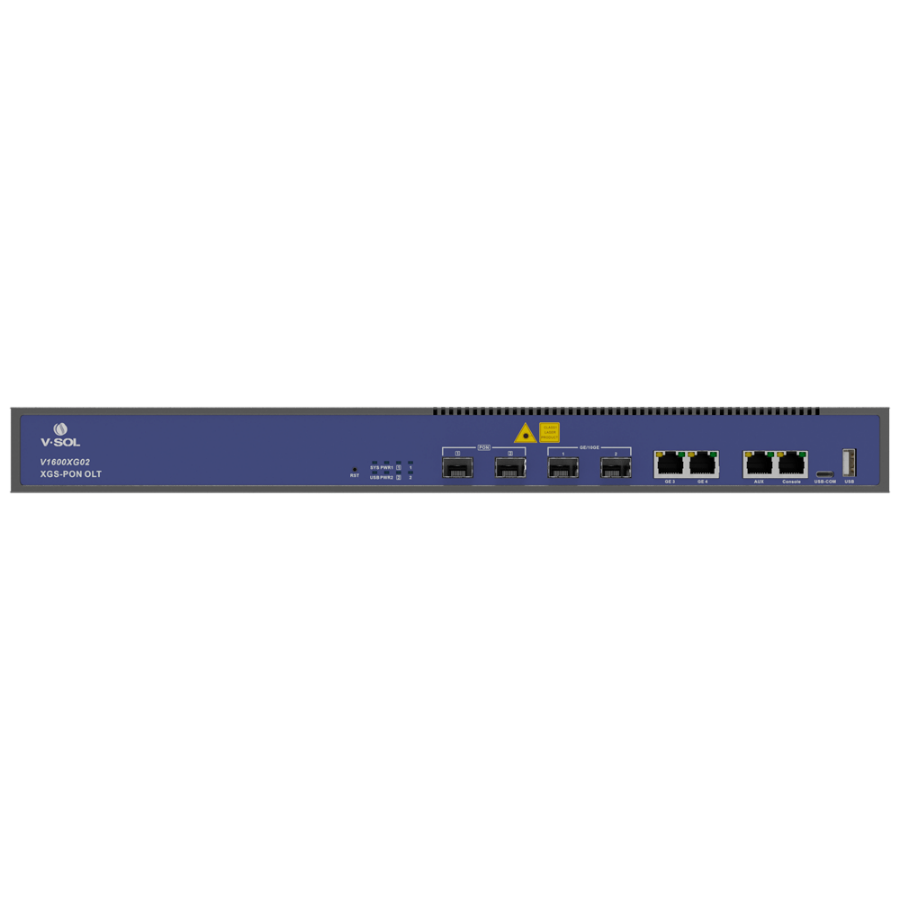

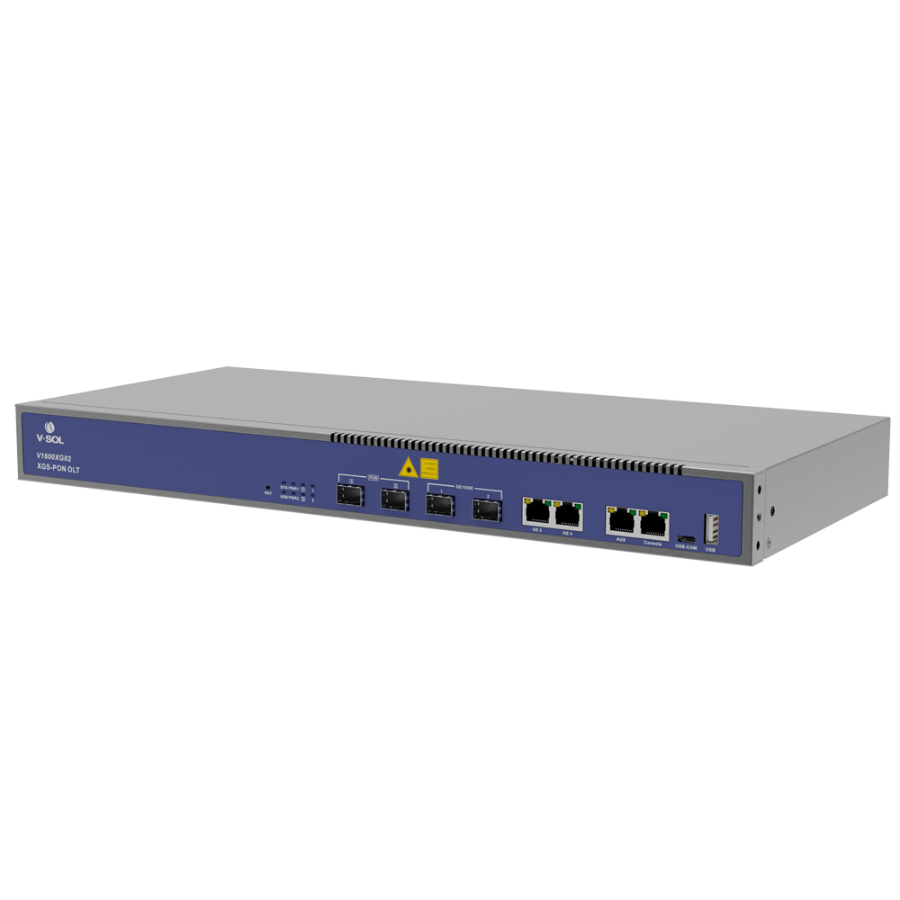

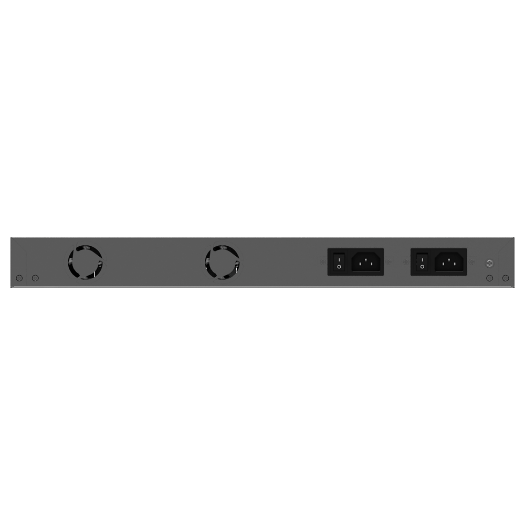

The V1600XG02 is an 1U OLT box equipped with 2 PON ports (optional GPON, XG-PON, XGS-PON) and 2 optical uplink ports 10GE/GE. With a maximum division ratio of 1:256 (recommended 1):128) and speeds up to 10 Gbps, it is designed for small businesses, retail and real estate leasing, offering an efficient and flexible fiber access network solution.
