| Brand | V-SOL |
| Chassis | Rack 1U |
| Interfaces | 2 Ports RJ45 10/100/1000 Mbps + 1 1/10Gigabit SFP+ Port 1 GPON Port 1.25Gbps/2.5Gbps1 USB-COM port ( Type C ) |
| GPON | GPON port speed: Up/Down ~ 1.25Gbps/2.5Gbps Fiber Type : Single mode 9/125µmConnector: SC/UPC,TX: 7.5±0.5dBm, Sensitivity: -32dBmWave length : TX 1490nm, RX 1310nmWavelength division ratio : 1/128 ( |
| Plate bandwidth | 16 Gbps |
| Forwarding rate | 23.808 Mbps |
| Management Protocols | WEB/Telnet/CLI/SNMPPort status configuration monitoring and managementONT online configuration and managementUser managementAlarm management |
| Surge protection | 4KV |
| Switching Layer 2 | Mac address table ( up to 1000 )Supports Vlans ( up to 4096 ) Storm control by portsSupports 802.1D and 802.1W ( STP )Port isolation Bandwidth limitation per portIEEE802.x Flow controlPort monitoring |
| Multicast | IGMP snooping256 IP Multicast Groups |
| DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82DHCPv6 server, DHCPv6 relay |
| Routing Layer 3 | Dynamic and static ARP tableWAN configuration (DHCP/PPPOE/Estatic)Static routing, NAT, DMZQoS based on DSCP, MAC, IP, Protocol, etc.Access Control List ( ACL ) |
| GPON functions | Complies with the ITU-T984.x standard (standard for GPON networks) Transmission distance up to 20 km Data encryption, multicast, port VLAN, splitting, etc. ONT autodiscovery, link detection and remote |
| Power | AC 100 V - 240 V DC 12V/2A |
| Operating temperature | -20°C - 60°C |
| Dimensions | 210mm x 173mm x 43.6mm |
| Weight | 1.07kg |

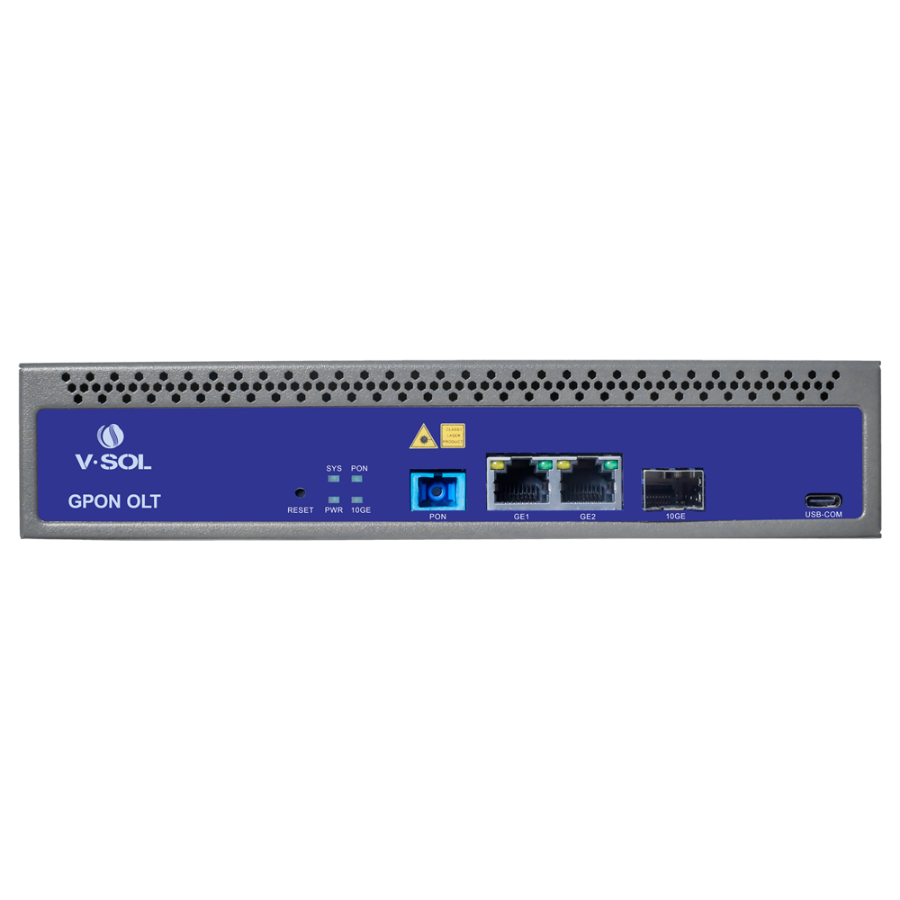

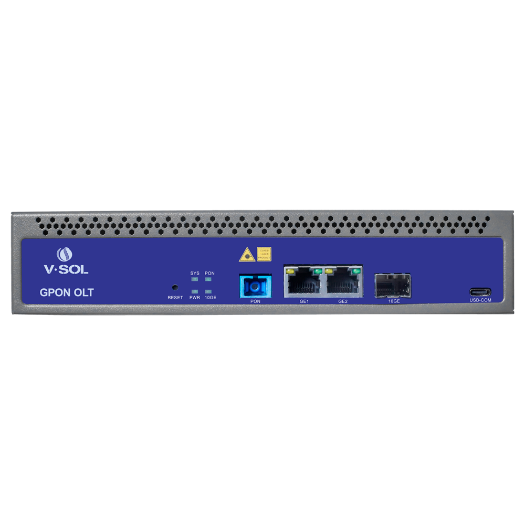

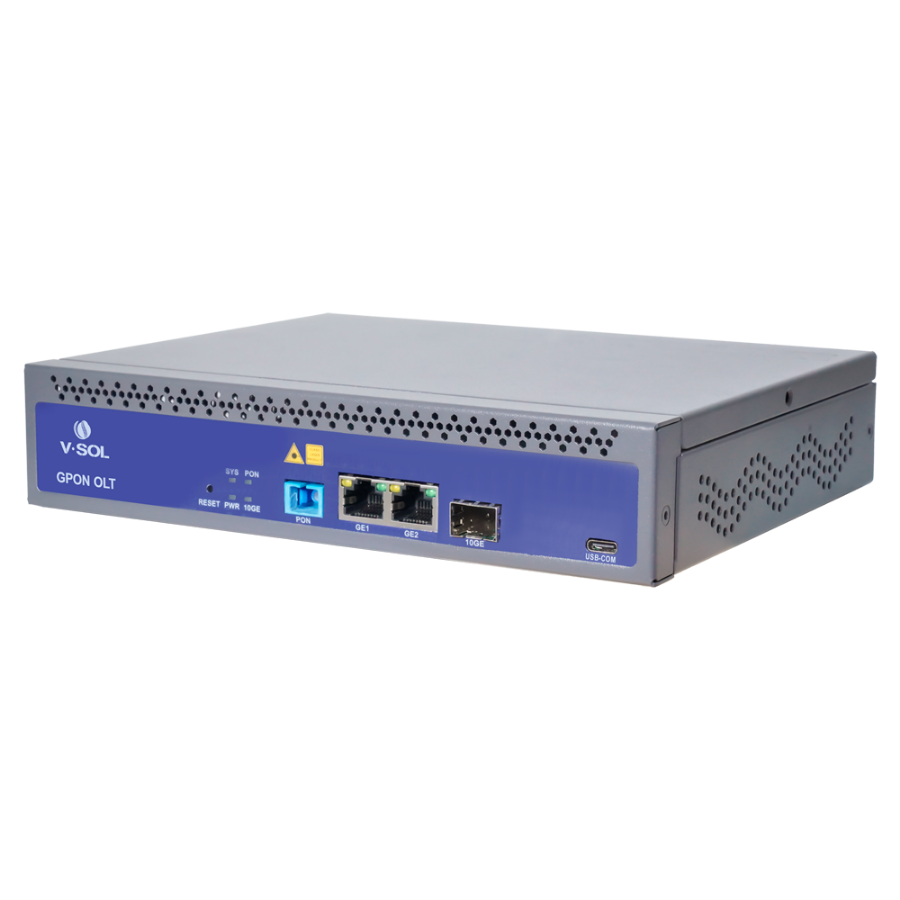

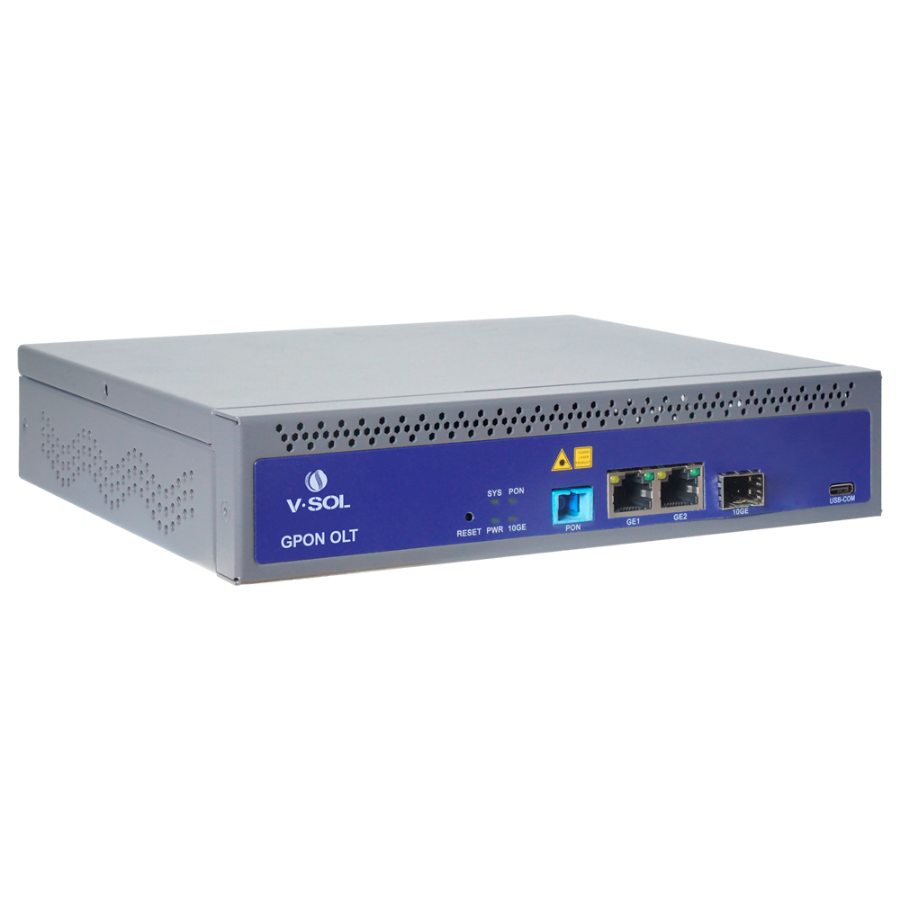

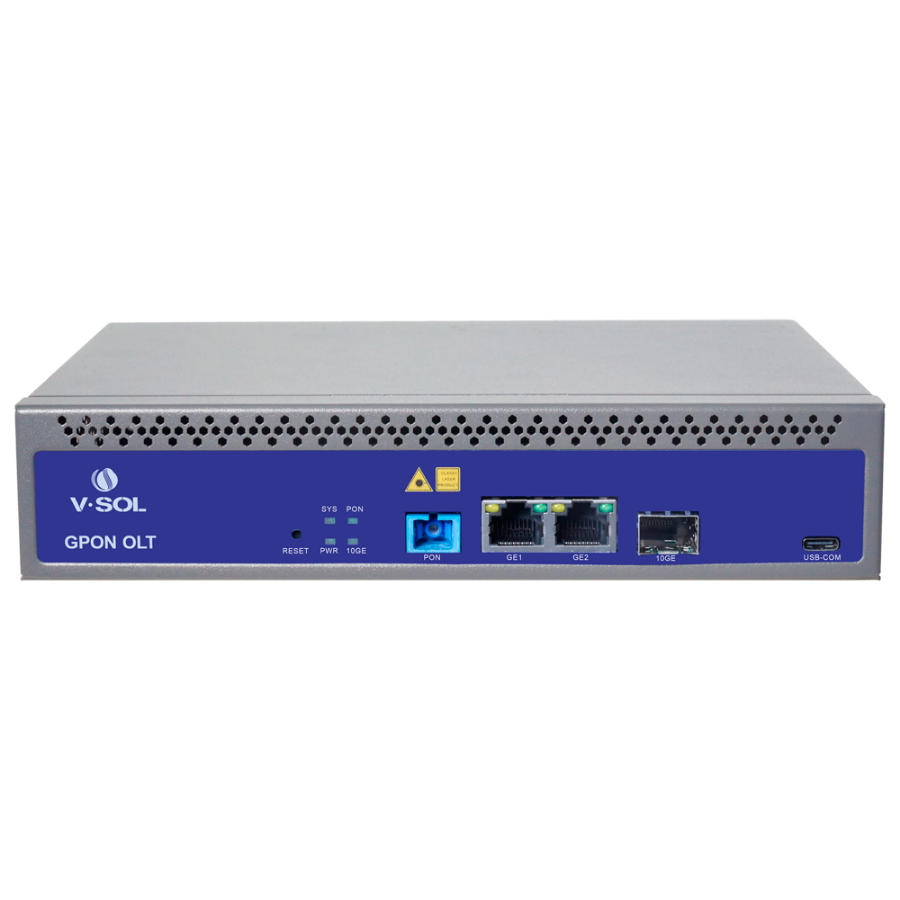

OLT V1600GS-F is a device that provides Internet and other services (such as telephone or TV) to many homes or businesses using fiber optics.
An OLT is the "brain" of the fiber optic network used by many Internet companies.
Think of it as a central fiber Internet delivery system: receives a large internet signal and distributes it through fiber optic cables to many users at the same time.
Use cases of V1600GS-F
-Connecting many homes in a new neighborhood
Imagine building a new neighborhood with 500 houses. Instead of running an internet cable to each house from the city (which is costly and inefficient), a company installs this OLT equipment in a nearby technical room and connects all the houses by fiber optics from there.
-Providing internet in an office building
In a building with many companies, the OLT can be installed in the building's communications room. Each office receives its fiber connection from this point.
-Providing services at a university
A university with many buildings and dormitories can use this equipment to distribute fiber Internet to all spaces from a single point.
-Small or rural internet providers
A small company offering internet in a rural area can use this equipment to connect several villages or communities from a local exchange, using less infrastructure than other technologies.
