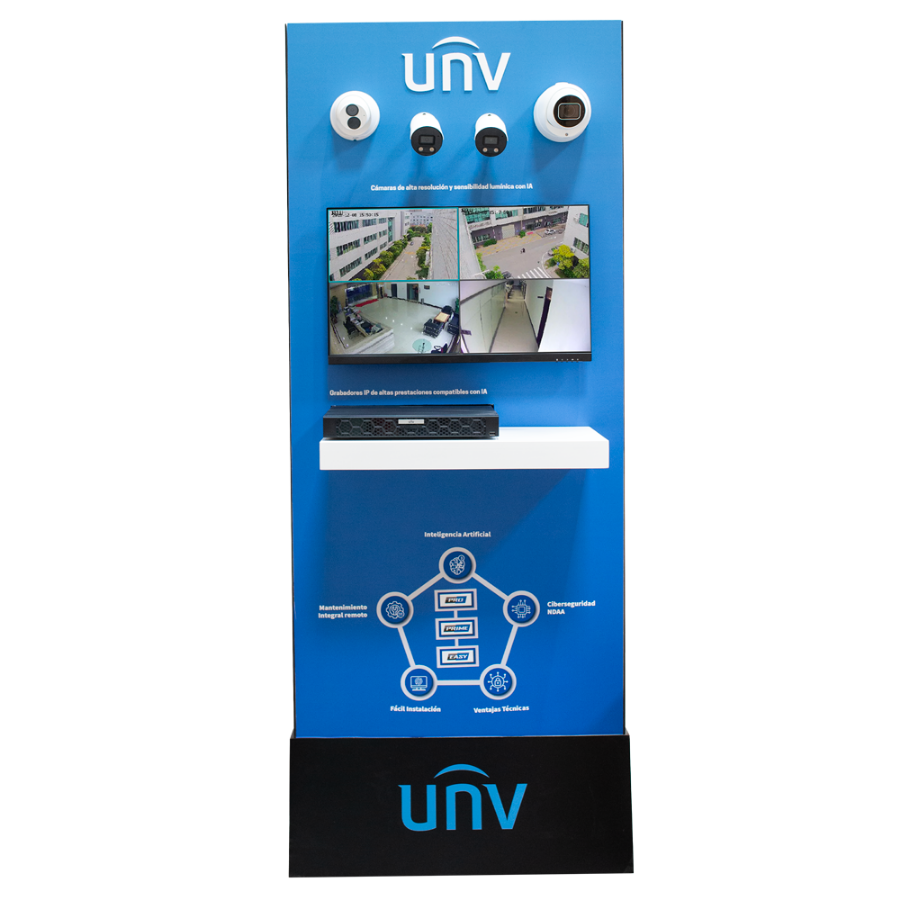

| Dimensions | High: 202 cmWidth: 81 cmDepth: 15 cm (40 cm with shelf) |
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Stream rate | 20 fps (3840x2160) 30 fps (3072x1728, 2560 1440, 1920 1080) x [%VAR%] x [%VAR%] |
| Extra Stream rate | 2o:1080p (1 ~ 30 FPS), 3o:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.01Lux (F2.0, AGC ON) |
| Infrared range | 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| UMD | Yes (Advanced motion detection with human and vehicle classification) |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Motion Detection, Audio Detection, Sabotage Protection |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphoneBuilt-in speaker |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 10.5WPoE IEEE802.3af |
| Temp. operation | -30o C ~ 60o C |
| Degree of protection | Weatherproof IP67Surge protection 4000 V |
| Dimensions | 191× 75 × 74mm |
| Weight | 410 g |
| Range | EasyStar |
| Image sensor | 1/3” CMOS Progressive Scan Starlight |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; |
| Viewing angle | Horizontal: 112.9oVertical: 59.1oDiagonal: 121.2o |
| Range performance | Detect: 63 mObserve: 25.2 mRecognize: 12.6 mIdentify: 6.3 m |
| Minimum illumination | 0.003Lux (F1.6 AGC ON) |
| Scope White light | 30 m |
| Image improvements | WDR (120dB)2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent functions | Motion Detection, UMD, Audio Detection, Tamper protection |
| UMD | SupportMotion detection based on human body detection |
| Internal memory | MicroSD card, Max 128 GB |
| Corridor mode | Yes |
| Audio | Built-in microphoneBuilt-in speakerG.711 |
| Power | DC 12V / 9WPoE IEEE802.3af |
| Dimensions | 191(Fo) × 75(An) × 74 (H) mm |
| Image sensor | 1/2.7" CMOS Progressive Scan Starlight |
| Maximum resolution | 8 Megapixel (3840*2160) |
| Main Stream rate | 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P(1920*1080)@30fps; |
| Extra Stream rate | 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Minimum illumination | 0.005 Lux (Colour) |
| Image improvements | WDR 120dB, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Day / Night | Automatic and configurable |
| Internal memory | Slot for microSD card up to 256GB |
| Alarms | No |
| Audio | Built-in microphone G.711 |
| Power | DC 12 V / 4.5 W, PoE IEEE802.3af |
| Temp. operation | -30°C ~ 60°C |
| Degree of protection | IP67 |
| Dimensions | ?118 x 95mm |
| Weight | 360 gr |
| Channels | 16 channels |
| IP compatible cameras | UNIVIEW, ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | Ultra H.265 / H.265 / H.264 |
| Network interface | 2 RJ-45 10M / 100M / 1000M |
| Display resolution | 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 320 Mbps downstream / 160 Mbps upstream |
| Main stream recording | 16Mpx / 12Mpx / 8Mpx / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p / D1 / 2CIF / CIF |
| Bidirectional audio | 1 input / 1 RCA output |
| Smart features by camera | 8 channels |
| VCA detection by camera | Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection) |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB / HDD USB memory |
| Internal memory | 2 SATA HDD 3.5" of up to 8 TB (not included) |
| Alarms | 8 Inputs / 2 Outputs |
| Communication | 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Power | 12 V CC/3,3 A ? 20 W (without hard disk) |
| Dimensions / weight | 380mm × 315mm × 53mm / 2 Kg |
| Maximum resolution | 5 Megapixel (2880 x 1620) |
| Lens | 2.7~13.5 mm Motorized Varifocal (H: 106.3~32.5°; V: 53.5~18.0°; D: 126.0~38.5°) |
| Main Stream rate | 5 MP (2880x1620), Max 30fps4MP (2688x1520), Max 30fps;4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; |
| Second Stream Rate | 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Third stream rate | D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Minimum illumination | Colour: 0.002Lux (F1.2, AGC ON)0 lux with IR on |
| Infrared range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area de |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| Face Capture | Support |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Aisle mode 9:16 | Supported |
| Alarms | 1 input / 1 relay |
| Audio | 1 Input / 1 Output / Integrated Microphone |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC input 12 V / 6.5 W, PoE IEEE802.3afDC output 12 V, 0.1 A, 1.2 W |
| Temp. operation | -40o C ~ 60o C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | ?111 x 83mm |
| Weight | 420 g |
