| Model | IPC-T122-APF28-ECO |
| Image sensor | 1/1.8” 4 Megapixel Progressive Scan CMOS |
| Resolution | 4 MP |
| Transfer Rate | Max 25 FPS |
| Compression | Ultra H.265 / H.265 / H.264 / MJPEG |
| Lens | 2.8 mm @ F1.0 |
| Minimum illumination | Colour: 0.0003 Lux / 0 Lux B/W |
| Scope White light | 30 m |
| Audio | Built-in microphone |
| Network interface | Ethernet 10/100 BaseT |
| Protection | Suitable for exterior IP67 |
| Power | DC 12 V / 9 W, PoE IEEE802.3af |
| Dimensions / weight | 73 (W) × 73 (H) x 206 (D) mm480 g |

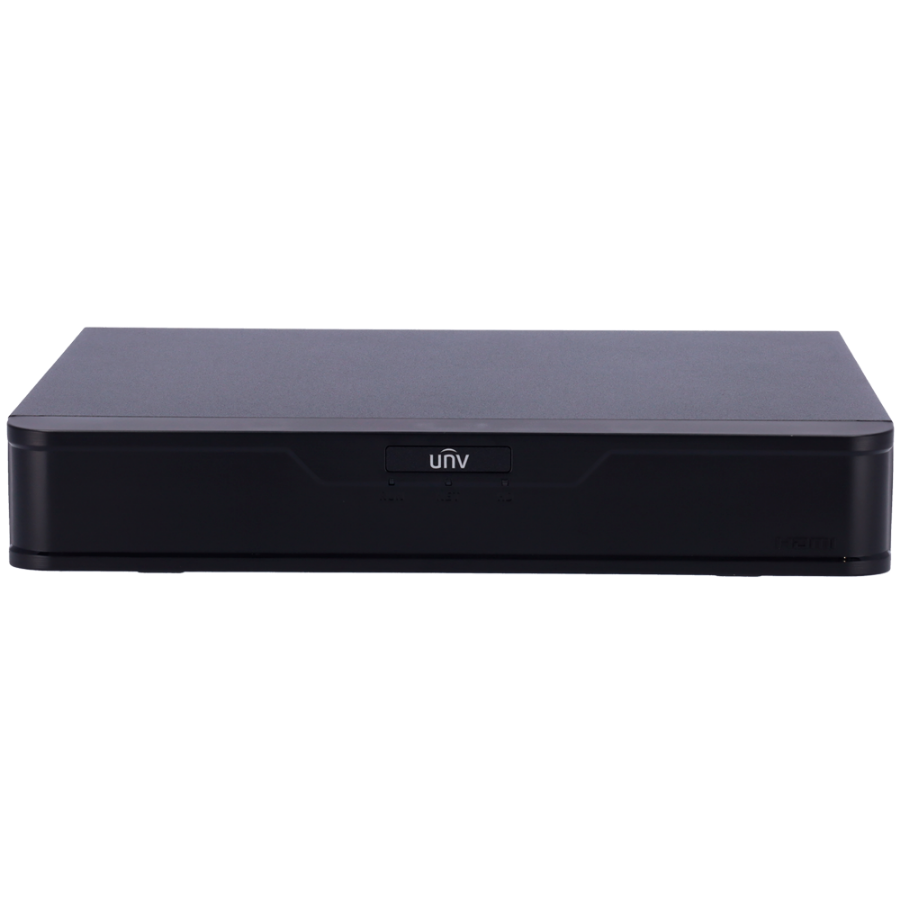

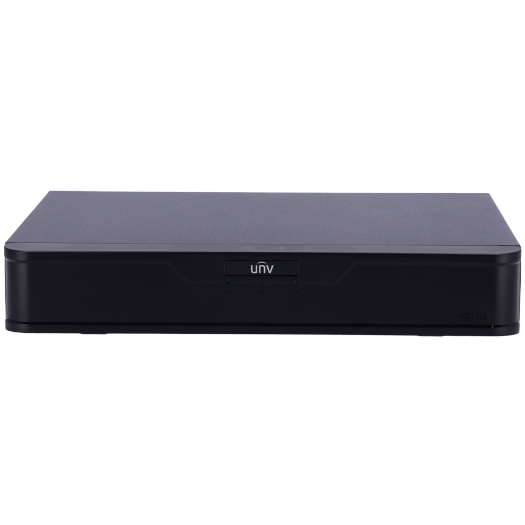

| Model | UV-NVR301-08B-P8-IQ |
| Video inputs | 8 CH8 CH PoE |
| Bandwidth | 80 Mbps |
| Video outputs | 1 HDMI 4K, 1 Simultaneous output VGA |
| Audio | 1 Output 3.5 mm |
| Video/audio compression format | Ultra 265, H.265, H.264 |
| Display resolution | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Maximum recording resolution | 12 MP |
| Coding | 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 1080P@30 x [%VAR%] |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 SATA HDD 3.5" of up to 6 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485 |
| Power | DC 52 V / 1.8 A, ? 12W (without HDD) |
| Dimensions and weight | [%RAR%] (W) × [%RAR%] (D) × [%RAR%] (H) mm [%RAR%] Kg |

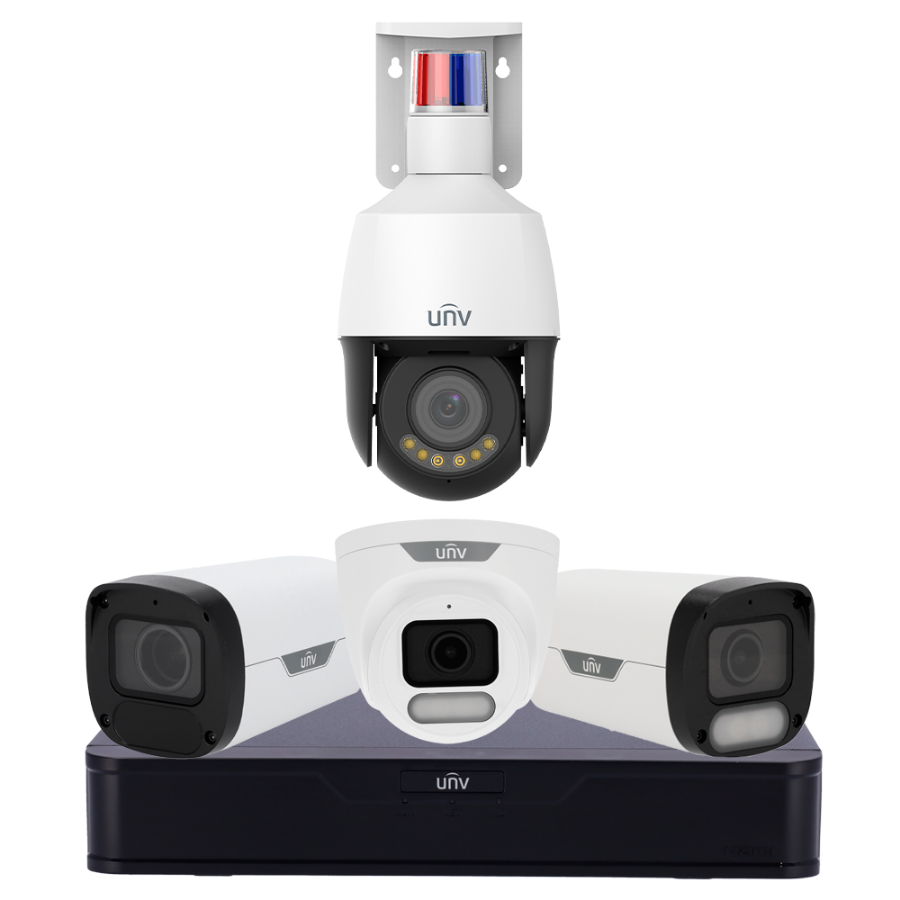

UNIVIEW branded starter kit. It consists of a 8 channel NVR, 8 PoE ports, and features AcuSearch and AcuTack for faster and more effective searches. The kit features Wise-ISP technology cameras, which allow color images to be displayed in the dark, Tri-Guard, a technology that combines SIP with ColorHunter and active deterrence to generate alerts when intruders are detected.
UV-NVR301-08B-P8-IQ
UV-IPC2314LE-ADF28KM-WP
UV-IPC3624LE-ADF28K-WP
UV-IPC2324LB-ADZK-H
UV-IPC6314LWH-AX5C-VG2
