| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Lens | 4 mm |
| Viewing Angle (FOV) | H: 97.49°, V: 52.31°, D: 102.29° |
| Range performance | 86.9 m (D), 34.8 m (O), 17.4 m (R), 8.7 m (I) |
| Main Stream rate | 8MP (3840x2160), maximum 30 fps; 5MP (3072x1728), maximum 30 fps; 4MP (2560x1440), maximum 30 fps; 1080p (1920x1080), maximum 30 fps; |
| Extra Stream rate | 720p (1280x720), maximum 30 fps; D1 (720x76), maximum 30 fps; 640x360, maximum 30 fps; 2CIF (704x288), maximum 30 fps; CIF (352x288), maximum 30 fps |
| Third stream rate | D1 (720x76), maximum 30 fps; 640x360, maximum 30 fps; 2CIF (704x288), maximum 30 fps; CIF (352x288), maximum 30 fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Video bitrate | 128 Kbps~16 Mbps |
| OwlView | Technology for displaying color images in low-light environments |
| Minimum illumination | Colour: 0.0003 lux (F1.0, AGC ON)0 lux with white light on |
| White light range | 40 m |
| Day / Night | Mechanical ICR filter |
| Shutter | 1 ~ 1/100000s |
| Image improvements | WDR (130 dB), BLC, HLC, AGC, AWB, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Corridor mode | Yes |
| SIP | Smart Intrusion Prevention (Smart Intrusion Prevention).False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, i |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People flow counting.Crowd density monitoring. |
| UMD | Integrates Ultra Motion Detection. |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Internal memory | Slot for MicroSD card up to 512 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | 1 Input / 1 Output |
| Microphone | Yes |
| Speaker | Yes |
| Audio Compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Alarms | 1 input / 1 output |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC 12V / 10.5WPoE IEEE802.3af |
| Temp. operation | -30o C ~ 60o C |
| Material | Metal and plastic |
| Degree of protection | Waterproof IP67, Surge protection 4000 V |
| Dimensions | 269 (D) × 96 (W) × 82 (H) mm |
| Weight | 860 g |

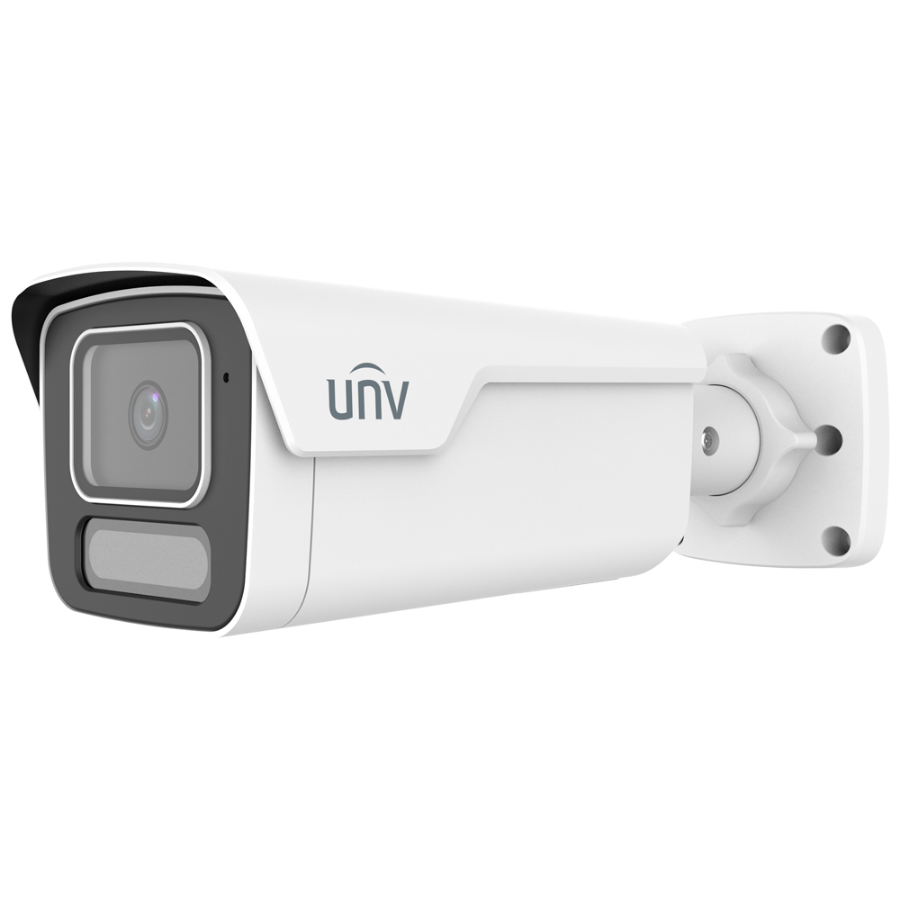

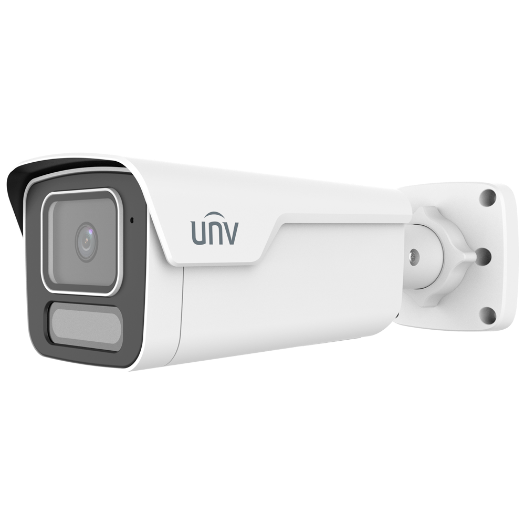

Uniview Prime range Bullet IP camera with 8MP, fixed 4 mm lens. This camera features SIP, people counting, metadata capture of vehicles and persons. It has Wise-ISP and OwlView technology that allows color display in very low light environments, in addition to its 140 dB in WDR allows a clear image in backlit environments.
