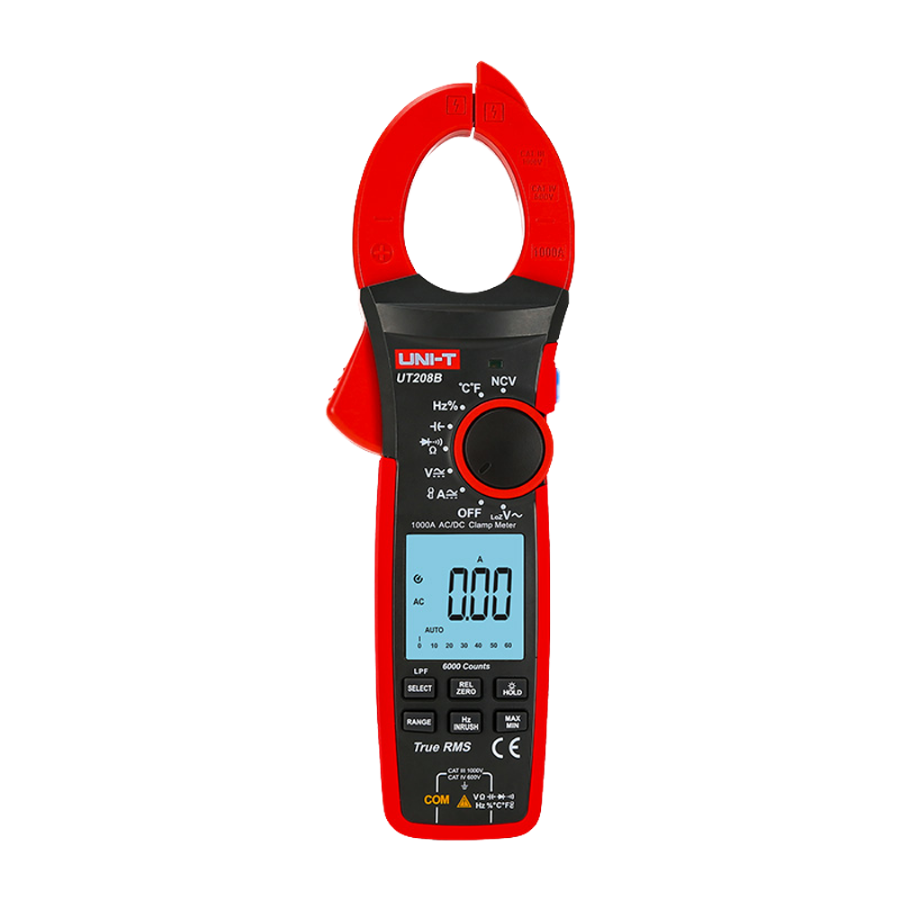

| Brand | Uni-T |
| Measuring range DC and AC current | AC: 1000A ±(2.5%+5); Response frequency: 40~400HzDC: 1000A ±(2.5%+5) |
| DC and AC voltage measuring range | AC: 1000V ±(1.2%+3); Response frequency: 40~400HzDC: 1000V ±(0.5%+5) |
| Resistance measuring range | 60M? ±(1%+2) |
| Capacitance measuring range | 60mF ±(4%+5) |
| Input current | 1000A ±(10%+10) |
| Low Pass Filter (LPF ACV) | 1000V±(2%+5) |
| LoZ ACV | 1000V ±(2%+5) |
| Temperature measurement range | -40°C~1000°C ±(1%+2) |
| Display accounts | Up to 6000 |
| Display dimensions | 43mm x 45mm |
| Clamp opening | 42mm |
| Analog bar | Yes, it is available |
| Auto Range / Manual Range / True RMS | Yes, it is available |
| Diode test | Yes, it is available |
| NCV function (non-contact voltage detection) | Yes, it is available |
| Relative mode | Yes, it is available |
| MAX/MIN register | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | Yes, it is available |
| Input protection | Yes, it is available |
| Zero mode | Yes, it is available |
| Input impedance DCV | >10M? |
| Power | 3 x batteries (R03) 1.5V |
| Dimensions | 272 (H) x 81 (W) x 43.5 (D) mm |
| Weight | 465 g |
| Security | CAT III 1000V/ CAT IV 600V CAT IV [%VAR%] |
