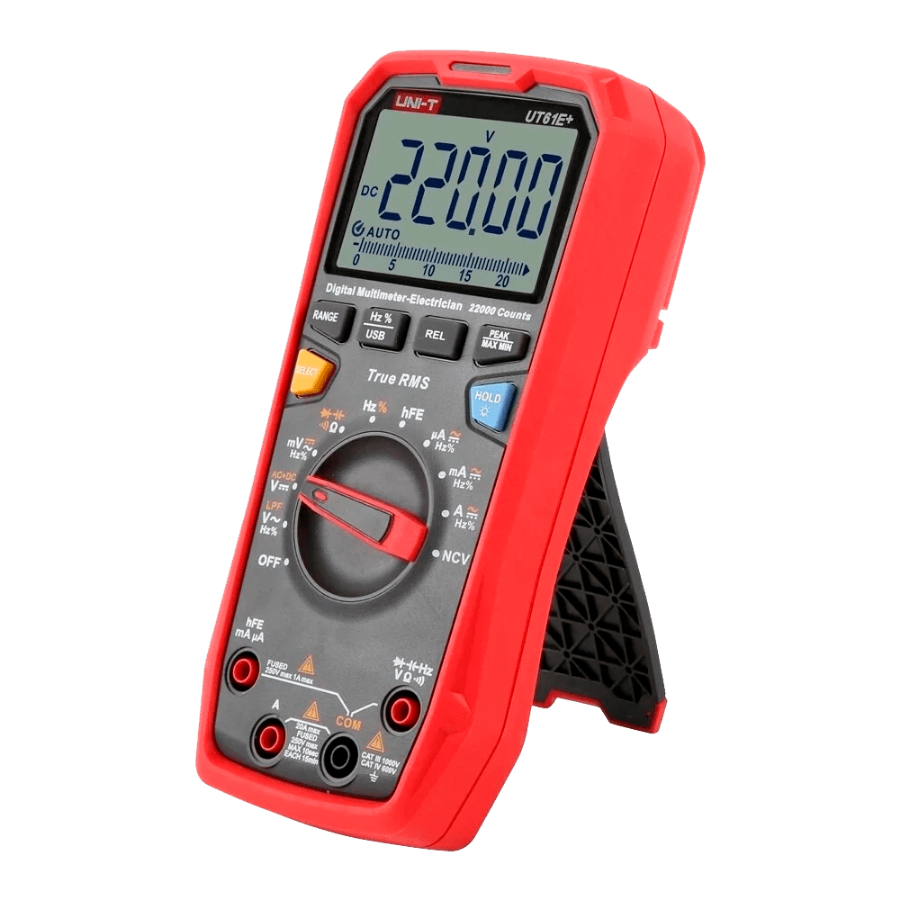

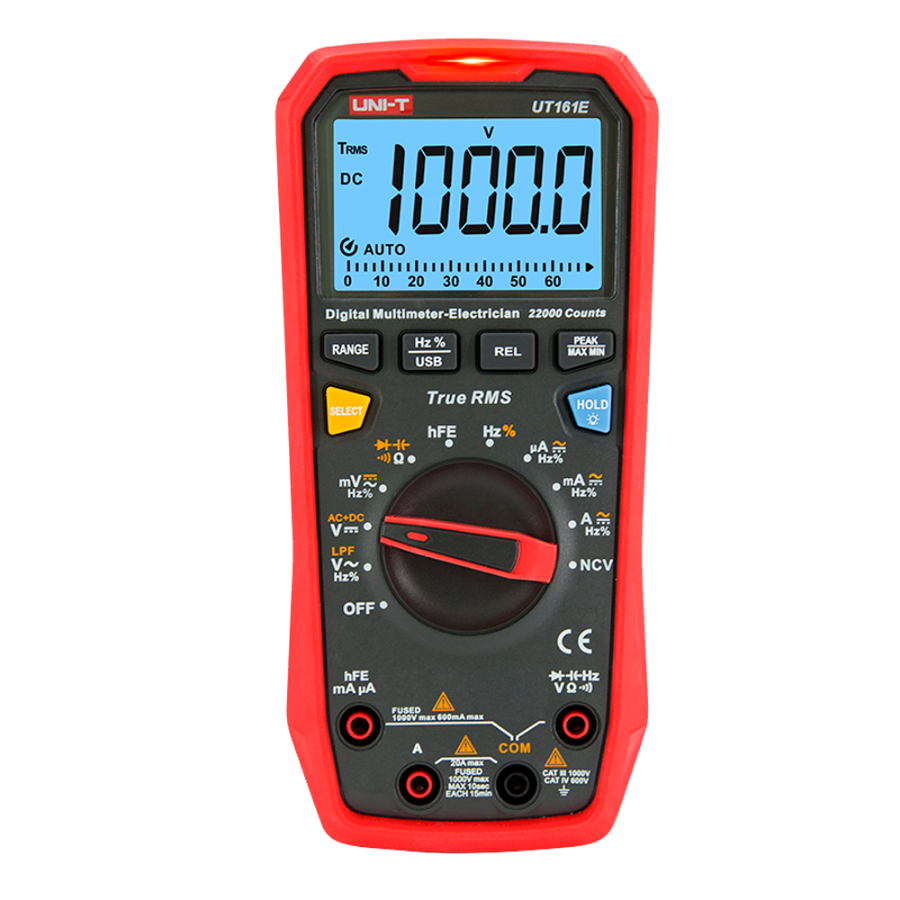

| Brand | Uni-T |
| Measuring range DC and AC voltage | DC 1000V ±(0.5%+3)AC 1000V ±(1%+3) |
| DC and AC current measuring range | DC 20A ±(1%+2)AC 10A ±(1.2%+5) |
| Resistance measuring range | 60M? ±(1%+2) |
| Capacitance measuring range | 60mF ±(3%+5) |
| Frequency measurement range | 10MHz ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% ±(2%+5) |
| Display accounts | Up to 6000 |
| Display dimensions | 58mm x 36mm |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Bandwidth | 40~500Hz |
| Continuity test | Yes, it is available |
| Diode test | Around 3V |
| Power | 4 x batteries (R03) 1.5V |
| Dimensions | 90 (H) x 120 (W) x 33.5 (D) mm |
| Weight | 350 g |
| Security | CAT III 1000V, CAT IV 600V CAT IV [%VAR%] |
