| Brand | TSUN |
| Rated output power | 800 W |
| Maximum output current | 4 A |
| No. of MPPT's | 2 |
| Number of inputs | 2 inputs |
| No. of Panels | 1-2 panels |
| Recommended panel power | 300-550 W |
| Starting voltage per input | 22 V |
| MPPT voltage range | 16~60 V |
| Maximum voltage admitted per input | 60 V |
| Maximum short-circuit current per input | 20 A |
| Maximum admissible current per input | 14 A |
| Rated output voltage | 220/230/240 V, L/N/PE |
| Nominal frequency | 50/60 Hz |
| Power factor | >0.99 default, 0.8 leading ... 0.8 lagging |
| Output harmonic distortion current | <3% |
| Eficiencia pico del inversor | 96,7% |
| Eficiencia CEC | 96,5% |
| Eficiencia nominal MPPT | 99,9% |
| Comunicación | Wi-Fi / BLE |
| Escalable | Hasta 9 ud (sección 12 AWG)Hasta 12 ud (sección 10 AWG) |
| Cable AC | Incluido. 2.43 m |
| Consumo nocturno | < 50 mW |
| Grado de protección IP | IP67 |
| Temperatura de Funcionamiento | -40 ~ +65 °C (pierde eficiencia a partir de 50°C de temperatura ambiente) |
| Humedad Relativa | 100% |
| Altitud máxima | 2000m |
| Refrigeración | Convección natural |
| Dimensiones | 250 (Al) x 223 (An) x 30 (Fo) mm |
| Peso | 3.1 Kg |
| Tipo de instalación | On-Grid |

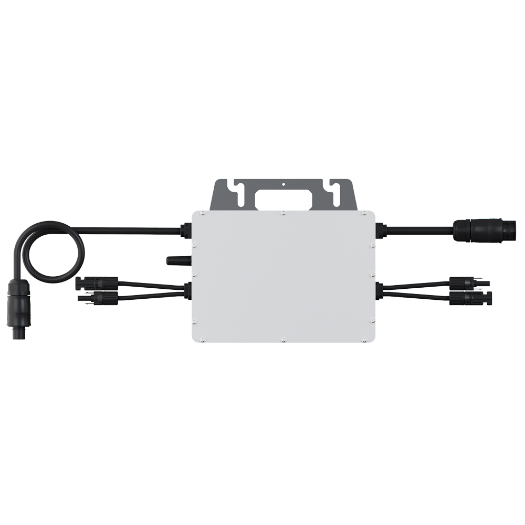

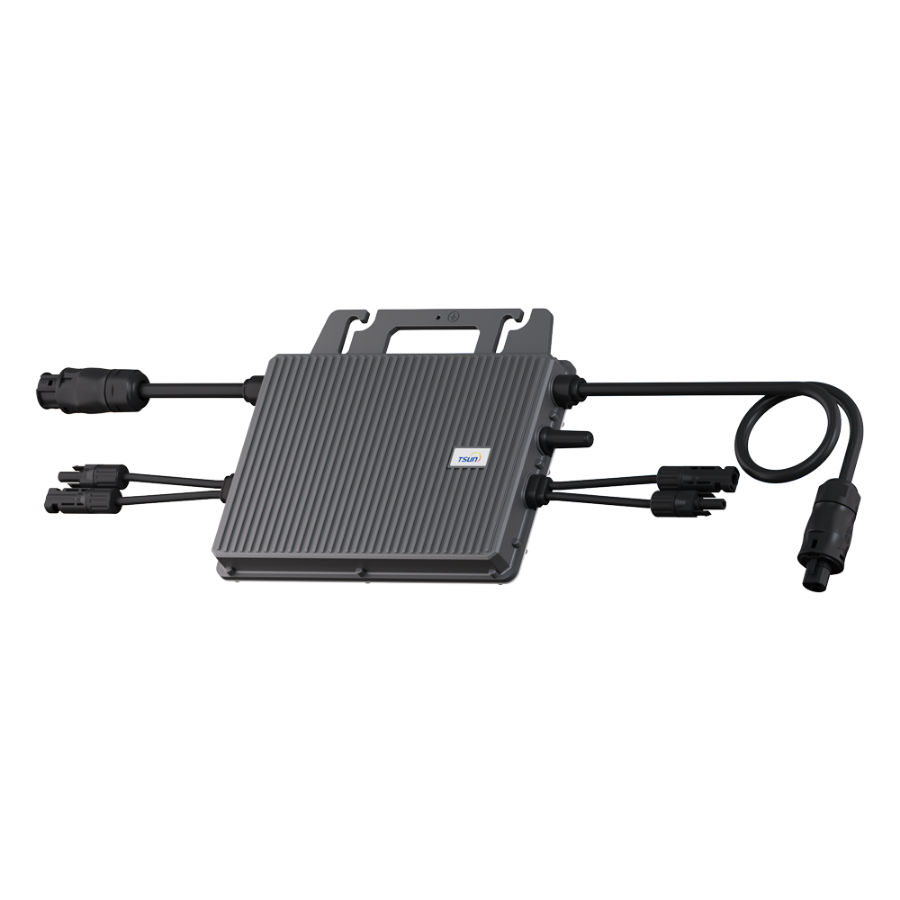

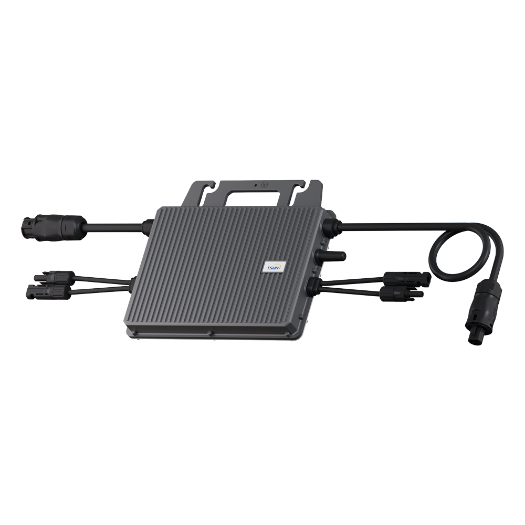

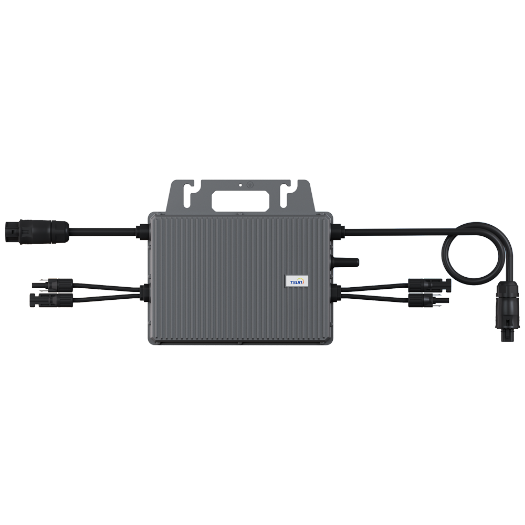

TSUN's GEN3 series is the best solution for photovoltaic systems where the use of a scalable system with microinverters is necessary. By placing a microinverter for each photovoltaic panel, the overall installation continues to operate even if solar panels are affected by obstacles, shadows or different orientations.
With WiFi module included, the production of each photovoltaic panel can be monitored at all times, facilitating management and maintenance by the installer.
