| Brand | TSUN |
| Rated output power | 3000W |
| Maximum output power | 3000VA |
| Maximum output current | 14 A |
| Rated output current | 13.6 A |
| Number of inputs | 4 |
| No. of Panels | Minimum 7Maximum 8 |
| Starting voltage per input | 22 V |
| MPPT voltage range | 22~120 V |
| Maximum voltage admitted per input | 120 V |
| Maximum short-circuit current per input | 16 A |
| Maximum admissible current per input | 15 A |
| No. of MPPT's | 4 |
| Rated output voltage | 220/230/240 V, L/N/PE |
| Nominal frequency | 50/60 Hz |
| Power factor | > 0.99 default, 0.8 leading ... 0.8 lagging |
| Output harmonic distortion current | < 3% |
| Peak inverter efficiency | 97,2% |
| CEC efficiency | 96,7% |
| Nominal MPPT efficiency | 99,9% |
| Communication | Wi-Fi |
| Night consumption | < 1 W |
| Standards | EN/IEC 62109-1, EN/IEC 62109-2, VDE-AR-N-4105, IN 50549-1, ABNT |
| Integrated protections | Anti-islanding protection, insulation monitoring, AC TYPE II overload protection, residual current monitoring, AC overcurrent protection, AC short-circuit protection, overvoltage protection, overfrequ |
| Display | LED indicators |
| IP Rating | IP 67 |
| Operating temperature | -25 ~ +65 °C (loses efficiency from 50°C room temperature) |
| Dimensions | 354 (H) x 294 (W) x 60 (D) mm |
| Weight | 7,2 Kg |
| Installation type | On-Grid |

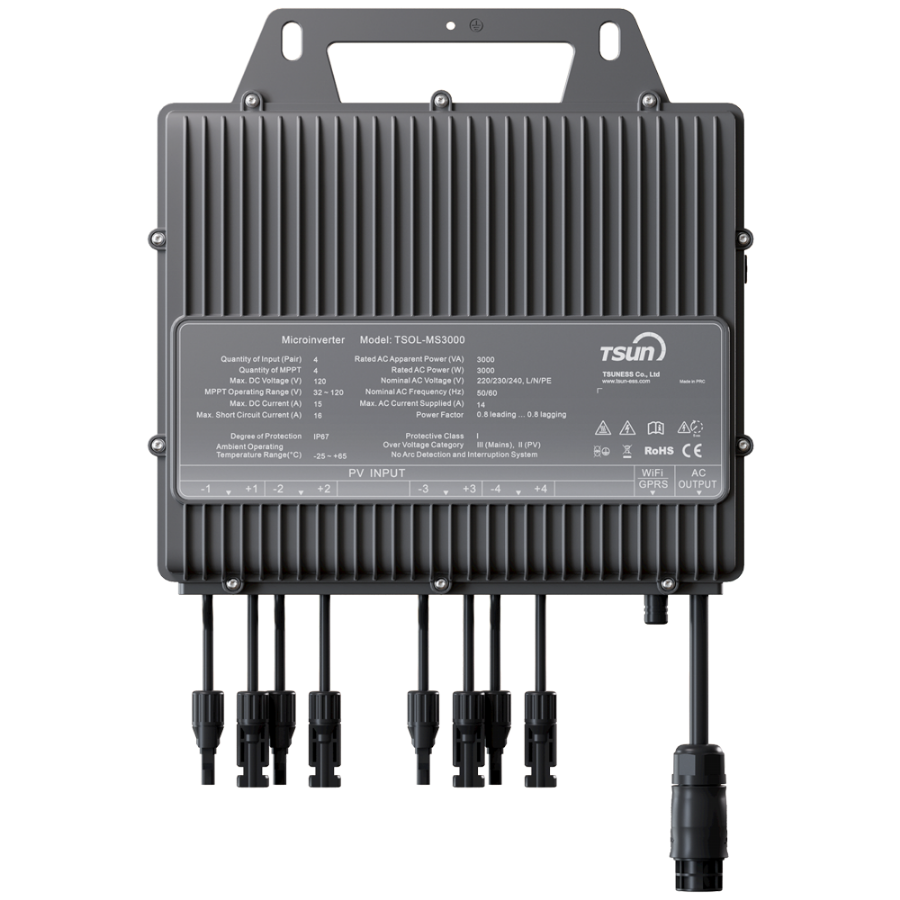

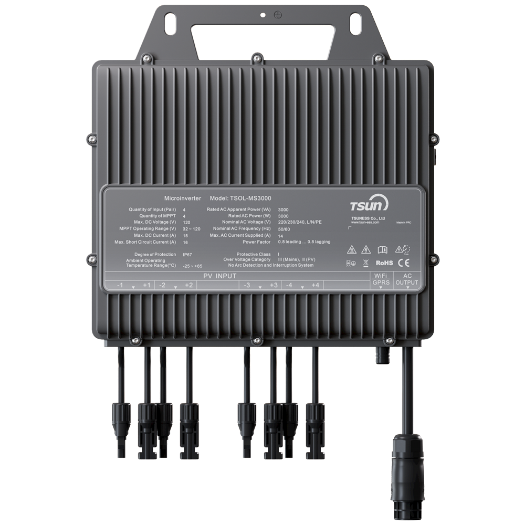

TSUN's TITAN series is the most powerful range of microinverters available on the market. With a reduced size and weight and specially designed with cooling fins, it allows to install up to 3000W of power in photovoltaic panels ((7-8 panels) in a simple and efficient way, divided in 4 MPPT inputs. This allows scaling up to larger systems in an easy way.
Through the TSUN App it is possible to control and monitor the electrical production of the microinverter at all times.
