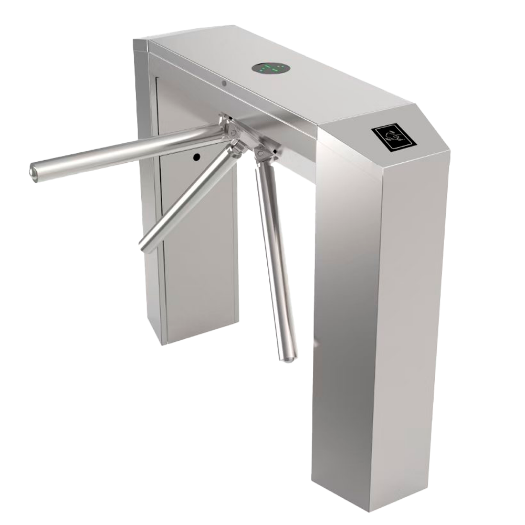

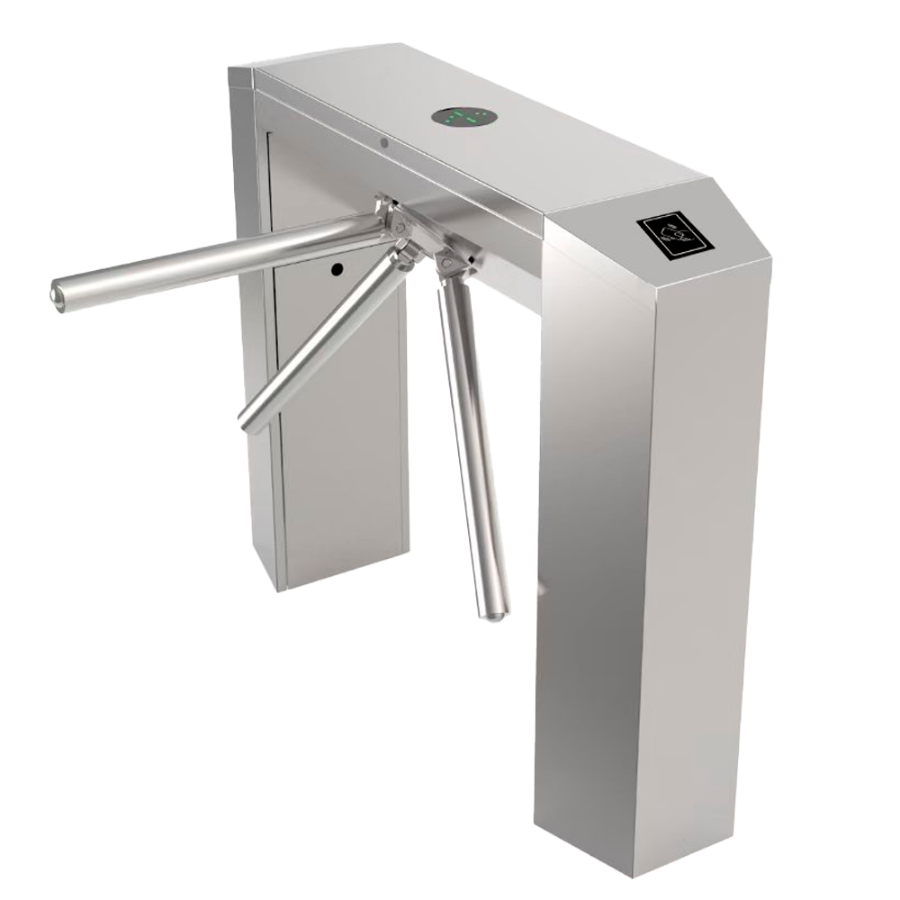

| Model | TS-TR602-OUTDOOR |

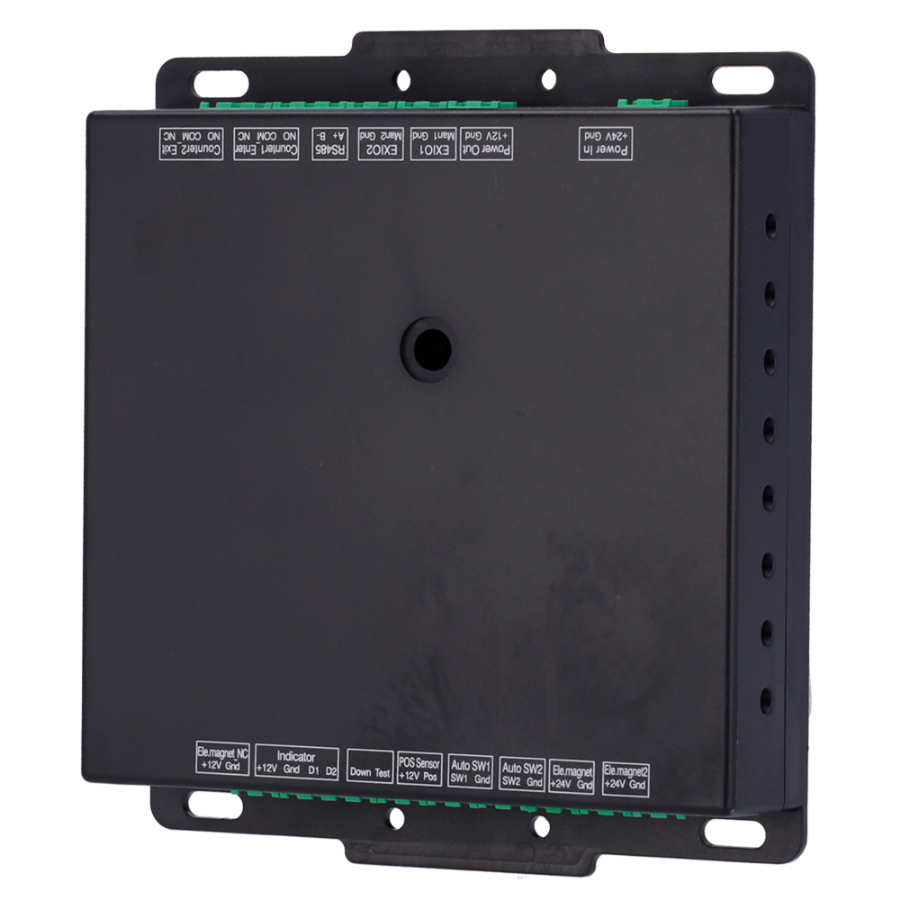

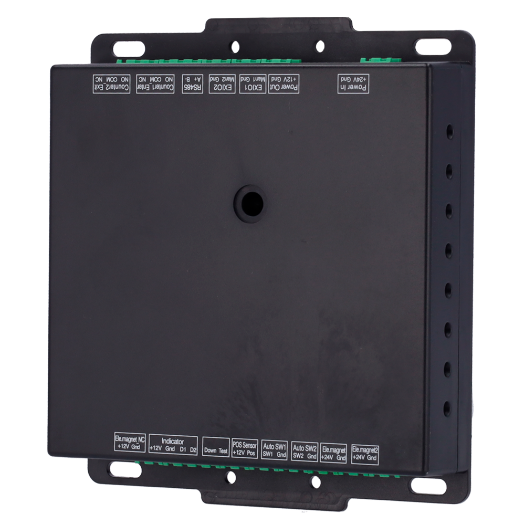

| Controller | Turnstile control board compatible with any Access Control system |
| Led indicator | LED status indicator |
| Arm movement | Mechanic Rotation of the arms (pushed by the user) |
| Emergency mode | Emergency folding of arms in case of power loss |
| Security | 3 arms / Anti-tailgating safety |
| Compatibility | Integrates with any third party Plug & Play Access Control / Universal caps for RFID readers |
| Configuration Modes | One or two directions / Free passage in one direction and Access Control in the opposite direction mechanically configured |
| Manufacturing material | Stainless steel SUS304 of 1.5 mm thickness and PC covers |
| Passage speed | 30-35 persons/minute |
| Reliability | 5.000.000 of cycles |
| Power | AC 110/220 V / 35 W max. |
| Temp. operation | -25o C ~ +70o C |
| Lane Width | 550 mm |
| Dimensions of pass | 550 (w) x 1200 (d) mm |
| Dimensions | 980 (H) x 280 (W) x 1200 (D) mm |
| Weight | 35 kg |
| Protection | Suitable for exterior IP56 |
